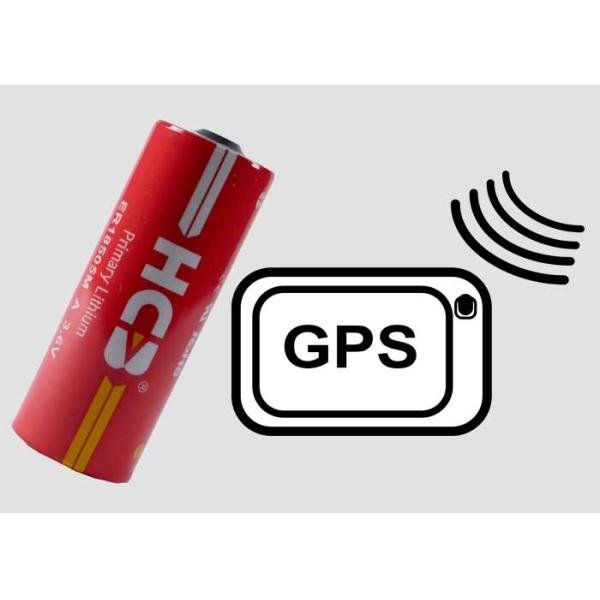

ER18505M 3500mAh 1200mA Pulse Primary Non-Rechargeable Lithium Thionyl Chloride Batteries
ER18505M 3500mAh 1200mA Pulse Primary Non-Rechargeable Lithium Thionyl Chloride Batteries
ER18505M 3500mAh 1200mA Pulse Primary Non-Rechargeable Lithium Thionyl Chloride Batteries
ER18505M 3500mAh 1200mA Pulse Primary Non-Rechargeable Lithium Thionyl Chloride Batteries
Specifications
Brand Name :
HCB
Model Number :
ER18505M
Certification :
RoHS/CE/UN/UL
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Two millions unit per month
Delivery Time :
35 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Max Size :
Φ18.8×50.5
Nominal Voltage :
3.6V
Max Pulse Current(mA) :
1200
Weight(g) :
32
Nominal Capacity :
3500mAh
Maximum Continuous Current :
600mA
Description

ER18505M 3500mAh 1200mA Pulse Primary Non-Rechargeable Lithium Thionyl Chloride Batteries

Nominal Capacity 3500mAh
Battery discharged at continuous current 6mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.6 V
Maximum Continuous Current 600mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 1200mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -55℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 32.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage
    Nominal voltage up to 3.6 V
  • High Energy Density
    Energy density up to 590 Wh/kg
  • Stable Operating Voltage
    More than 90% of the capacity could be output at a stable voltage
  • Wide Operating Temperature Range
    -55°C to +85°C

2. Main Applications

  • Medical Devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

  • Marine & Lifesaving

Life jacket, signal light, buoy, etc.

  • Oil & Gas

Well pressure meters, float meters, logging while drilling(LWD), measure while drilling(MWD), etc.

  • Military & Defence

Portable radio communications, night vision equipment & thermal images, torches & lamps, etc.

3. HCB Battery Co., Ltd. was founded in 2001. As a leading primary lithium battery manufacturer and solution provider in China, HCB remains dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.
