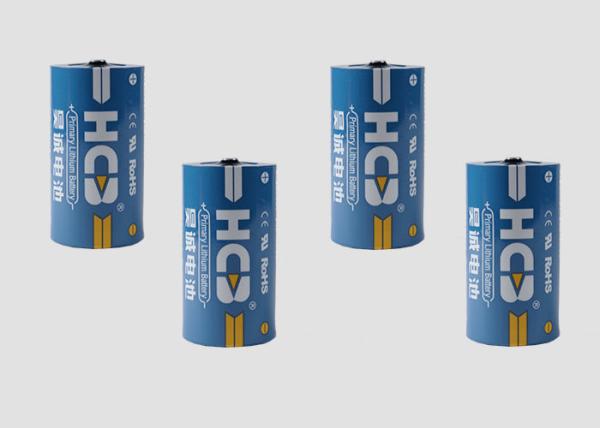

C size Li-SOCl2 Battery , ER26500 3.6 v 8500mAh primary lithium batteries, high voltage Li-SOCl2 Battery
C size Li-SOCl2 Battery , ER26500 3.6 v 8500mAh primary lithium batteries, high voltage Li-SOCl2 Battery
C size Li-SOCl2 Battery , ER26500 3.6 v 8500mAh primary lithium batteries, high voltage Li-SOCl2 Battery
C size Li-SOCl2 Battery , ER26500 3.6 v 8500mAh primary lithium batteries, high voltage Li-SOCl2 Battery
Specifications
Brand Name :
HCB
Model Number :
ER26500/C model
Certification :
CE/RoHS/UN/UL
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Two millions unit per month
Delivery Time :
35 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Cellpacking :
304 stainless steel
Classification :
Bobbin
Max Size(mm) :
Φ26.2×50.0
Nominal Voltage(V) :
3.6V
Nominal Capacity(mAh) :
8500mAh
Maximum Pulse Discharge Current :
400mA
Description

C size Li-SOCl2 Battery , ER26500 lithium cylindrical battery , 3.6 v 8500mAh lithium battery

Nominal Capacity 8500mAh
Battery discharged at continuous current 3.3mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.6 V
Maximum Continuous Current 200mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 400mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -55℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 53.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

The nominal voltage of single cell up to 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V

  • High Energy Density

We offer the specific energy density of 577Wh/kg

  • Wide Operating Temperature Range

The battery with a strong adaptability to temperature can be in work between -55℃ ~ +85℃

  • Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage

  • Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

2. Main Applications

  • Utility Metering

Automatic meter reading(AMR), advanced metering infrastructure(AMI),electricity meters, gas meters, water meters, heat meters, etc.

3.Company Instruction

  • HCB Battery Co., Ltd. was founded in 2001. As a leading primary lithium battery manufacturer and solution provider in China, HCB remains dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.
  • With every improvement that is made, HCB continues to pursue perfection. Technological development & innovation are of great importance to HCB. We have been focusing on providing reliable products & services to the customers worldwides for more than 22 years.
