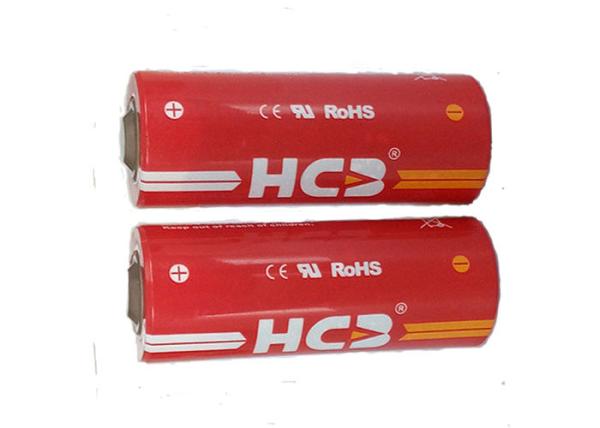

Primary Lithium Thionyl Chloride Cell Li-SOCl2 Cylindrical Battery for Security Alarms Seismometers
Primary Lithium Thionyl Chloride Cell Li-SOCl2 Cylindrical Battery for Security Alarms Seismometers
Specifications
Brand Name :
HCB
Model Number :
ER17450M
Certification :
RoHS/UN/CE/UL
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Two millions unit per month
Delivery Time :
35 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Type :
ER17450M
Maximum Pulse Discharge Current :
960mA
All-up weight :
23g
Max Size(mm) :
Φ17.0×45.0
Nominal Capacity :
2550mAh
Maximum Continuous Current :
480mA
Description

Primary Lithium Thionyl Chloride Cell Li-SOCl2 Cylindrical Battery for Security Alarms Seismometers ER17450M 2550mAh

Nominal Capacity 2550mAh
Battery discharged at continuous current 4.8mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.6 V
Maximum Continuous Current 480mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 960mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -55℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 23.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

The rated voltage of the single battery is 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V

  • High Energy Density

We offer the specific energy density of 399Wh/kg

  • Wide Operating Temperature Range

The battery can be in work between -55℃ ~ +85℃

  • Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage

  • Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

Hermetic welding sealing to reduce the leakage for extending the shelf life to more than 10 years

2. Main Applications

  • Military & defense

Ground force (individual soldier system, infantry fighting vehicles, robot soldier), navy (submarine, underwater robot), air force (fighters, unmanned surveillance drones), aerospace (satellites, shuttles), etc.

  • RFID &Tracking / GPS
    ETC, RFID products, road toll transponder, IC cards, etc.
  • Smoke Detectors, Security Alarms, Seismometers, Locking System, Monitoring System,
  • Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.

Primary Lithium Thionyl Chloride Cell Li-SOCl2 Cylindrical Battery for Security Alarms Seismometers
