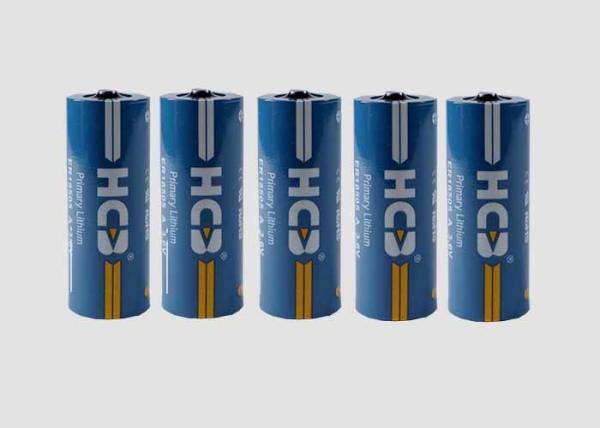

Primay Li SOCl2 Lithium Battery Cylindrical Thionyl Chloride Battery Hermetic Fat A Model Cell
Primay Li SOCl2 Lithium Battery Cylindrical Thionyl Chloride Battery Hermetic Fat A Model Cell
Specifications
Brand Name :
HCB
Model Number :
ER18505
Certification :
UN/RoHS/CE/UL
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Two millions units per month
Delivery Time :
35 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Sealing Type :
Hermetic Sealing
Storage Life :
More than 10 years at room temperature
Storage Temperature :
≤30℃
Storage Humidity :
≤60%RH
Self-discharge Rate :
≤2%/year
Nominal Capacity :
4000mAh
Maximum Continuous Current :
150mA
Maximum Pulse Discharge Current :
300mA
Description

Primay Li SOCl2 Lithium Battery Cylindrical Thionyl Chloride Battery Hermetic Fat A Model Cell for NB-IOT

Nominal Capacity 4000mAh
Battery discharged at continuous current 2.0mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.6 V
Maximum Continuous Current 150mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 300mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -55℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 31.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

Each cell nominal voltage up to 3.6V, the working voltage varies with the load, generally between 3.3V ~ 3.6V

  • High Energy Density

We provide the specific energy density up to 464Wh/kg

  • Wide Operating Temperature Range

We provide a wide operating temperature range, from -55℃ to +85℃

  • Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage

  • Long Shelf Life

The battery self-discharge less than 2% per year at room temperature

Battery sealing using the fully sealed structure to reduce the leakage of the battery, make the battery can be stored at room temperature for more than 10 years

2. Company Advantages

  • GB/T19001-2008/ISO9001:2008 is HCB quality management system standard;
  • GB/T24001-2004/ISO14001:2004 is HCB Environment Management System standard;
  • We have much experience in drop test package;
  • The goods can be transported very safely because we can provide the report for the customers' reference;
  • The CE certificate can be given to you if required;
  • The Rosh certificate can be given to you if required;
  • The UL certificate can be given to you if required;

HCB Battery Co., Ltd. was founded in 2001. As a leading primary lithium battery manufacturer and solution provider in China, HCB remains dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.

With every improvement that is made, HCB continues to pursue perfection. Technological development & innovation are of great importance to HCB. We have been focusing on providing reliable products & services to the customers worldwides for more than 22 years.
