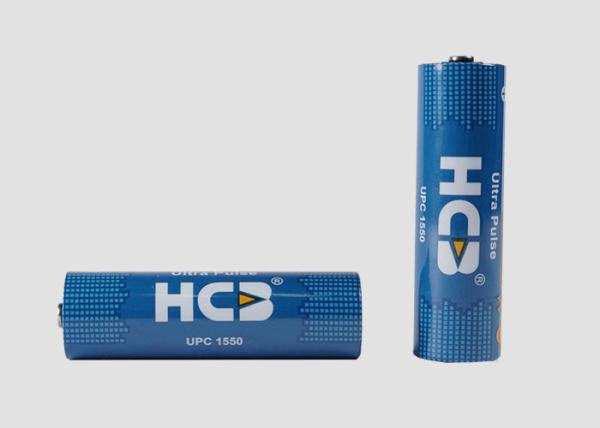

Lithium Thionyl Chloride battery Ultra Pulse Capacitors UPC1550 Capaticy Asset tracking toll-gate transponders UPC 1550
Lithium Thionyl Chloride battery Ultra Pulse Capacitors UPC1550 Capaticy Asset tracking toll-gate transponders UPC 1550
Lithium Thionyl Chloride battery Ultra Pulse Capacitors UPC1550 Capaticy Asset tracking toll-gate transponders UPC 1550
Lithium Thionyl Chloride battery Ultra Pulse Capacitors UPC1550 Capaticy Asset tracking toll-gate transponders UPC 1550
Specifications
Brand Name :
HCB
Model Number :
UPC1550
Certification :
RoHS/UN/CE/UL
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
Two millions units per month
Delivery Time :
5 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
All-up weight :
21.5g
Capaticy at 3.67V :
560As
Type :
UPC1550
Max Size(mm) :
Φ15.1×50.5
Maximum Continuous Discharge Current :
2.0A
Maximum Pulse Discharge Current(1s) :
5.0A
Maximum Charge Voltage :
3.95V
Internal Resistance(1kHz@RT) :
≤100mΩ
Description

Ultra Pulse Capacitors UPC1550 Capaticy 560As Asset tracking toll-gate transponders Smart home Bike-sharing

1. Key Features:

Wide Operating Temperature Range
• -40°C to +85°C
High Pulse Capability
• Up to 5A pulse
High Reliability
• The UPC is parallel connected with a battery or several batteries to
eliminate voltage delay and to increase the pulse current capability
• Low leak current 1~15μA

2. Monitoring
Animal health monitoring system,forest fire alert, smart irrigation system, etc.

3. Electrical Cha racteristics(T emperature 23±2℃)

Capaticy at 3.67V 560As
Cut-off Voltage 2.5V
Maximum Continuous Discharge Current 2.0A

Maximum Pulse Discharge Current(1s) 5.0A
Maximum Charge Voltage 3.95V
Maximum Charge Current 50mA
Internal Resistance(1kHz@RT) ≤100mΩ
Leakage Current@RT 5μA
Leakage Current@80℃ 15μA

Lithium Thionyl Chloride battery Ultra Pulse Capacitors UPC1550 Capaticy Asset tracking toll-gate transponders UPC 1550
