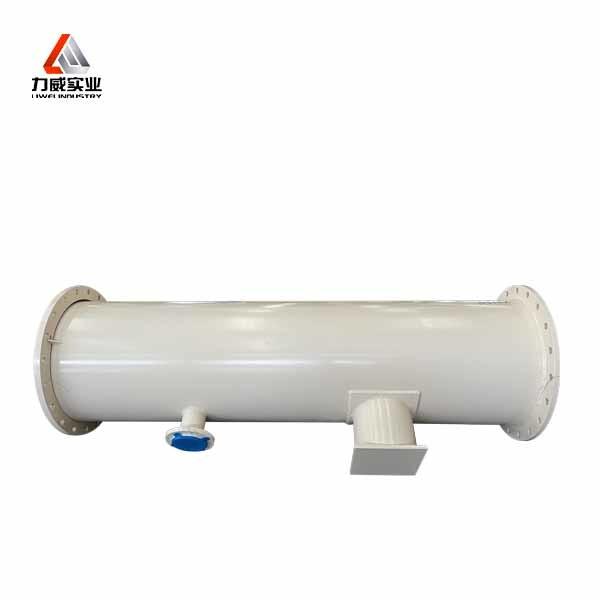

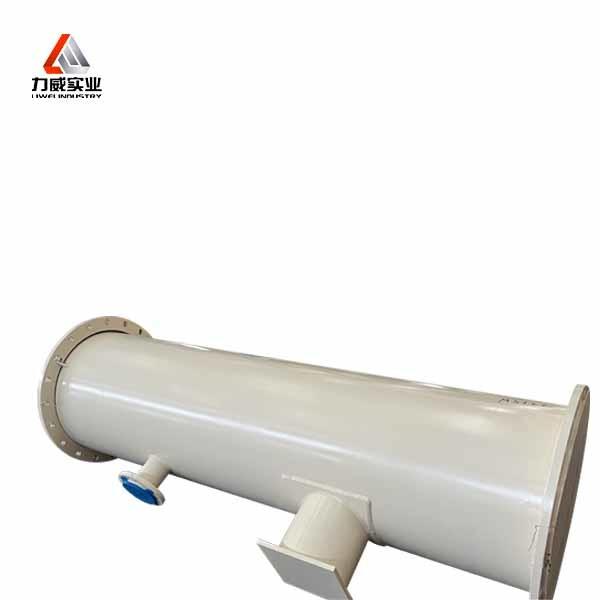

Manufactured Rubber Coated Pipeline with Flange Connection Or Couplings
Manufactured Rubber Coated Pipeline with Flange Connection Or Couplings
Manufactured Rubber Coated Pipeline with Flange Connection Or Couplings
Manufactured Rubber Coated Pipeline with Flange Connection Or Couplings
Specifications
Brand Name :
Liwei
Model Number :
user-defined
Certification :
ISO9001, TUV, WRAS, CO, MTC, PL, IV etc
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Price Negotiable
Payment Terms :
T/T, Western Union, L/C, D/A, MoneyGram
Supply Ability :
1500 tons per Month
Delivery Time :
After payment 15-30 working days
Packaging Details :
Rubber Lined Steel Pipes packaging is carried by iron pallets, fixed by wooden frame or steel frame.
Product Name :
Rubber Lined Pipe
High Temperature Resistance :
Excellent
Installation Method :
Flange Connection Or Couplings
Pipe Length :
Customizable
Applications :
Metallurgy, power, chemical, petroleum, coal, cement, etc.
Wall Thickness :
2-16mm
Description

Product Description:

The Rubber Lined Pipe is available in a wide range of sizes to meet the diverse needs of different industries. The outside diameter of the pipe ranges from 25mm to 2000mm, making it suitable for a variety of applications.

One of the key advantages of the Rubber Lined Pipe is its high elasticity, which allows it to withstand high pressure and temperature. The pipe is also highly airtight, which helps to prevent leaks and ensures the efficient transfer of fluids. Additionally, the Rubber Lined Pipe is impact-resistant, wear-resistant, weather-resistant, radiation-resistant, and resistant to chemical media, making it suitable for use in harsh environments.

The Rubber Lined Pipe undergoes strict quality inspection to ensure that it meets the highest quality standards. This includes testing for pressure resistance, temperature resistance, and chemical resistance, among others. Customers can also customize the product to meet their specific requirements, such as adding insulation or changing the color of the rubber lining.

Another advantage of the Rubber Lined Pipe is that it is always in sufficient inventory, which allows for quick delivery and reduces downtime for customers.

In summary, the Rubber Lined Pipe is a high-performance product that provides exceptional durability and reliability. It is manufactured to strict quality standards, customizable, and available in a wide range of sizes. Its high elasticity, air tightness, impact resistance, wear resistance, weather resistance, radiation resistance, and chemical media resistance make it suitable for use in a variety of industrial applications.

Features:

  • Wear resistance: more than 10 times the service life of ordinary steel pipes
  • The lining adopts special formula: strong chemical performance, can transport strong dirt medium
  • Low cost: more than 50% cheaper compared with cast iron pipeline
  • Adaptability: the size of the pipe is not limited, any shape can be lined with rubber composite
  • High comprehensive benefit: long life, shorten the replacement and maintenance cycle, save labor cost

Technical Parameters:

Name Outside diameter
Wall thickness		 1D/1.5D Standard Elbow 3D Standard EIbow Tee Height Reducer Straight
R 90° 45° R 90 45°
25 Φ32×3 381 90 105 115 500
32 Φ38×3 47.6 100 115 130 165 95 125 110 1000
40 Φ45×3 57.2 110 130 150 185 105 130 110 2000
50 Φ57×3.5 76.2 130 150 180 215 115 140 110 3000
65 Φ76×4 95.3 150 170 230 265 135 155 110 3000
80 Φ89×4 114.3 130 190 270 305 155 165 110 5000
100 Φ108×4.5 152.4 160 230 324 380 180 180 120 6000
125 Φ133×4.5 190.5 200 200 399 430 215 200 150 6000
150 Φ159×5 2,286 235 235 477 510 255 220 160 6000
200 Φ219×6 304.87 315 140 600 600 300 260 170 6000
250 Φ273×7 381.0 390 170 750 750 375 300 200 6000
300 Φ325×8 457.2 470 200 900 900 450 340 220 6000
350 Φ377×8 533.4 545 235 1050 1050 525 365 350 6000
400 Φ426×8 609.6 620 265 1200 1200 600 400 380 6000
450 Φ480×8 685.8 700 295 1350 1350 675 430 400 6000
500 Φ530×8 762 775 330 1500 1500 750 470 600 6000
600 Φ630×8(rolling) 914 925 390 1800 1800 900 600 700 9000
700 Φ720×8(rolling) 1050 1050 445 2100 2100 1050 700 700 9000
800 Φ820×8(rolling) 1200 1200 510 2400 2400 1200 700 800 9000
900 Φ920×8(rolling) 1350 1350 570 2700 2700 1350 800 900 9000
1000 Φ1020x8(roling) 1500 1500 630 3000 3000 1500 800 900 9000
1100 Φ1120×10(rolling) 1650 1650 695 - - - 900 900 9000
1200 Φ1220×10(rolling) 1800 1800 760 - - - 1000 1000 9000
1300 Φ1320×12(rolling) 1350 1350 570 - - - 1100 1000 9000
1400 Φ1420×12(rolling) 1450 1450 810 - - - 1200 1100 9000
1600 Φ1620×14(rolling) 1650 1650 705 - - - 1400 1100 9000
1800 Φ1820×16(rolling) 1850 1850 790 - - - 1500 1200 9000
2000 Φ2020×16(rolling 2050 2050 870 - - - 1500 1200 9000

Applications:

Rubber lined pipelines are widely used in:

Factory

Power plants

Industrial water treatment equipment

Mineral processing

The paper industry

Petrochemical industry

The food industry

Fertilizer factory

medicine

Environmental protection industry and other industries

Support and Services:

Our Rubber Lined Pipe product comes with comprehensive technical support and services to ensure its optimal performance and longevity. Our team of experienced engineers and technicians can provide assistance with installation, maintenance, and repair of the product. We also offer custom engineering and fabrication services to meet specific project requirements. In addition, we provide on-site training and consultation to ensure safe and efficient operation of the product. Contact us for more information on our technical support and services.

Packing and Shipping:

Product Packaging:
Our rubber lined pipes are carefully packaged to ensure safe delivery. They are wrapped in protective material and placed in sturdy cardboard boxes. Each box is clearly labeled with the product name and specifications for easy identification during shipping.

Shipping:
We offer worldwide shipping for our rubber lined pipes. The shipping cost is calculated based on the destination and weight of the order. We work with reliable and trusted shipping carriers to ensure timely delivery. Once your order is processed, you will receive a tracking number to monitor the shipment status.

FAQ:

Here are some frequently asked questions about our Rubber Lined Pipe:

Q: What is the brand name of this product?

A: The brand name of our Rubber Lined Pipe is liwei.

Q: Is the model number for this product customizable?

A: Yes, the model number for our Rubber Lined Pipe is user-defined.

Q: What is the supply ability for this product?

A: Our Rubber Lined Pipe has a supply ability of 1500 tons per month.

Q: How long does it take for delivery after payment?

A: Delivery for our Rubber Lined Pipe typically takes 15-30 working days after payment.

Q: How is the packaging for this product?

A: Our Rubber Lined Pipe is packaged with iron pallets and fixed by wooden or steel frames.

Q:Are you trading company or manufacturer?

A: We are professional manufacturer.

Q:When the products will be shipped ?

A:Within 7~25 days after receiving the prepayment.
