Microcomputer 2KN Leather Universal Tensile Testing Equipment 0.1 - 500 mm / min speed Range
Microcomputer 2KN Leather Universal Tensile Testing Equipment 0.1 - 500 mm / min speed Range
Microcomputer 2KN Leather Universal Tensile Testing Equipment 0.1 - 500 mm / min speed Range
Microcomputer 2KN Leather Universal Tensile Testing Equipment 0.1 - 500 mm / min speed Range
Specifications
Brand Name :
LIYI
Model Number :
LY-1065
Certification :
CE Certificate
Place of Origin :
Dongguan Province, China.
MOQ :
1 set
Price :
USD 2000 ~ 3000/set
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15 business days after deposit
Packaging Details :
Standard export package
Name :
Microcomputer 2KN Leather Tensile Testing Machines With High Precise Ball Screw
Range of speed :
0.1～500 mm/min
Resolution :
1/250, 000
Whole stroke :
850 mm (can be customized)
Accuracy :
± 0.5 %
Force relative error :
± 0.5 %
Effective testing space :
120 mm
Operation method :
Windows operation
Weight :
70 kg
Power :
1 PH, AC 220 V, 50/60 Hz
Description

Microcomputer 2KN Leather Tensile Testing Machines With High Precise Ball Screw

Detailed Product Description

Accuracy: ±0.5% Capacity: 5, 10, 20, 25, 50, 100, 200kg
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: AC Motor Power: Approx.45kg
Resolution: 1/100,000 Sensor: Load Cell
Type: Tensile Tester Port: High Precise Ball Screw

Microcomputer 2KN Leather Tensile Testing Machines With High Precise Ball Screw

Design standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Product Features

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

Specifications:

Model

1065

Range of speed

0.1~500mm/min

Motor

Panasonic sevor motor

Resolution

1/250,000

Capacity choice

1,2,5,10,20,50,100,200,500kg optional

Stroke

650mm(excluding clamp)

Accuracy

±0.5%

Force relative error

±0.5%

Displacement relative error

±0.5%

Test speed relative error

±0.5%

Effective testing space

120mmMAX

Accessories

computer, printer, system operation manual

Optional accessories

stretcher, air clamp

Operation method

Windows operation

Weight

70kg

Dimention

(W×D×H)58×58×125cm

Safety Device:

Stroke protection

Upper and lower protection, prevent over preset

Force protection

system setting

Emergency stop device

Handling emergencies

Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9. Have user-defined test method function;

10. Have test data arithmetic analysis function;

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics.

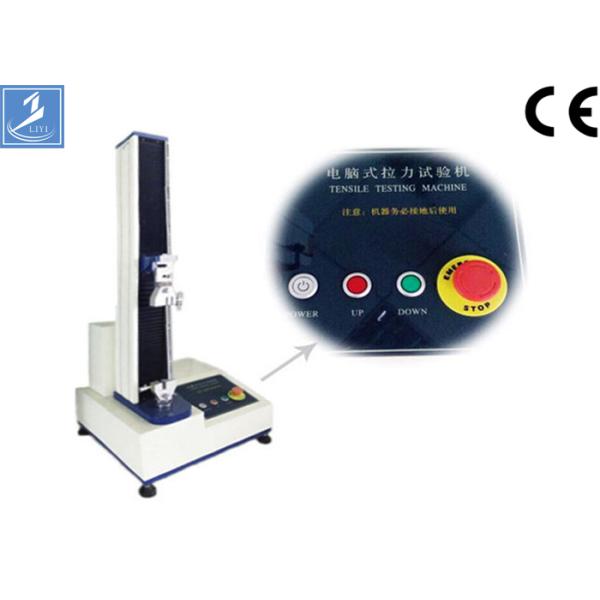

Products shows:
