500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
Specifications
Brand Name :
LIYI
Model Number :
LY-690
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Sets Per Month
Delivery Time :
10 Days
Packaging Details :
Wooden Case
Inner Material :
#SUS 304 Stainless steel
Controller :
PID Thermostat or PLC controller
Heating Speed :
Heating speed: RT~100C, 10min
Accuracy :
0.3 Degree
Uniformity :
1%
Circulation System :
Air force level cycle
Description

500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V

This machine can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . From many models, expandable with convenient, approved and tested accessories, you will easily find the heating oven ideally suited to your needs. According to your application the this model cover all requirements of thermal safety, precision and quality assurance

Features:

1, the shell is made of high quality cold plate molding.

2, the studio can be produced with stainless steel.

3, it is for the stainless steel liner.

4, Intelligent digital PID temperature control instruments

5, The use of new synthetic silicon sealing tape.

6, Hot air circulation system using high temperature and low noise fan dual air circulation.

7, the device is equipped with an independent fan switch

Temperature controller:

  1. PID microcomputer automatic conclusion,PS/SV simultaneous display,be able to set the temperature freely as needed in the range of allowable temperature.
  2. CA(K) TYPE output for 12 V
  3. Current controller is SSR contact-less Relay, keep high stability of the current.
  4. Heat material for cellular stainless steel heat pipe, no pollution and hair long service life.

Specifications: All requirements can customize

Model

Inner Size

W*H*D(cm)

External Size

W*H*D(cm)

 Temperature Range(°C) Heating up Time

Accuracy

(°C)

Uniformity

(°C)

 Power

Rate of work

(kw)
LY-645 45×40×40 66×92×55

(A-D)

A:200°C

B:300°C

C:400°C

D:500°C

RT~100°C

About 10min

 ±0.3 ±1%

220V

Or

380V

 3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16

Installation and after sale service:

Defines installing those products in the field and providing after-sales support.

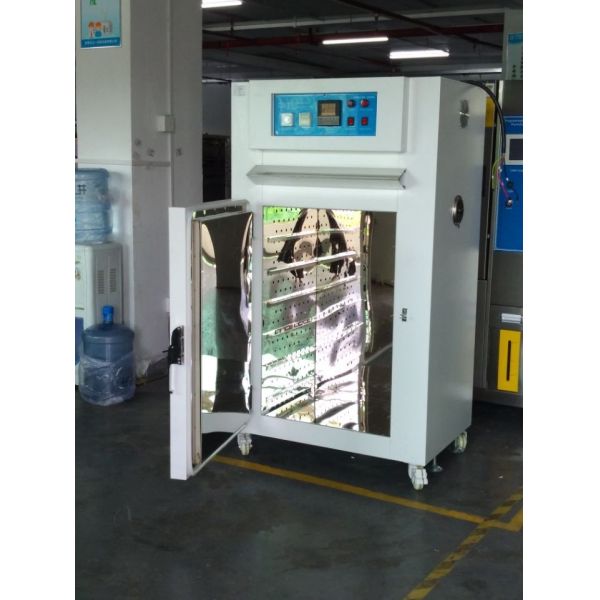

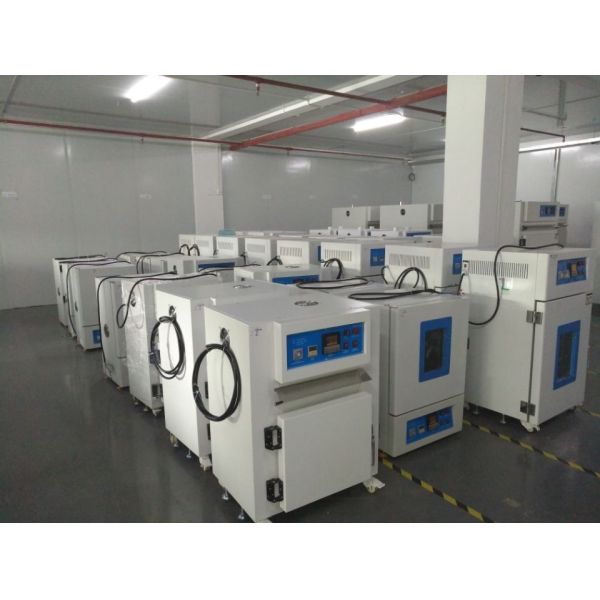

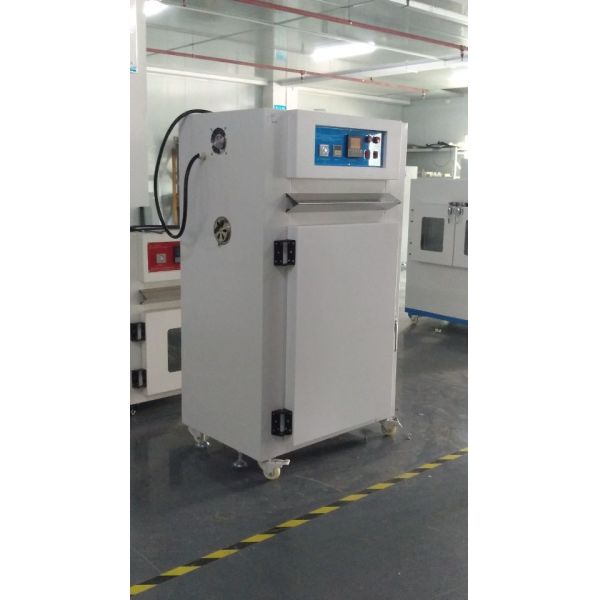

Product Pictures:

500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V500 Degree High Temperature Furnace , Hot Air Drying Oven 220V / 380V
