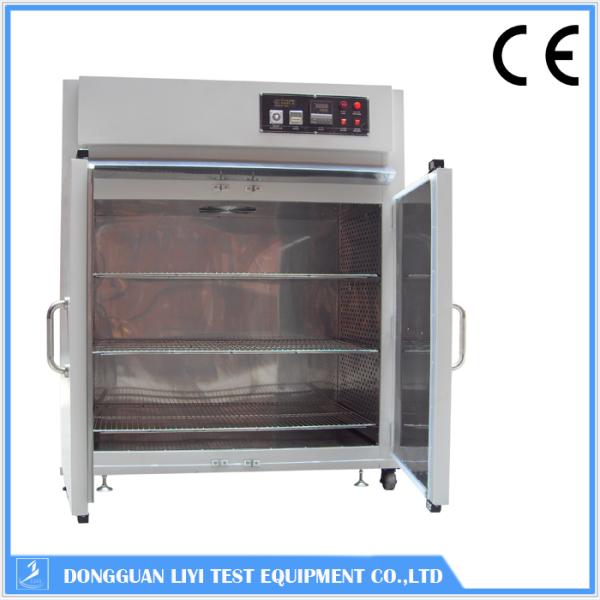

Turbine Fan Large Capacity Industrial Drying Oven for Pre Heating

Specifications

Brand Name :

LIYI

Model Number :

LY-660

Certification :

CE,ISO 9001: 2008

Place of Origin :

China

MOQ :

1 piece

Price :

Negotiation

Payment Terms :

L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability :

100 piece/month

Delivery Time :

Within 15 days after receiving the payment

Packaging Details :

Standard Export Wooden Case

Material :

#SUS 304 Stainless steel

Temperature range :

A-d(20°C0~500°C)

Heating up Time :

RT~100°C About 10min

Accuracy (°C) :

±0.3

Uniformity (°C) :

±1%

Rate of work (kw) :

3.5~16

heating system :

PID+S.S.R.

circulation system :

air force level cycle

Drying :

Pre heating drying

Fan :

Turbine Fan

Description

Name: Turbine Fan Large Capacity Industrial Drying Oven for Pre Heating

2. Product Introduction:

2.1Quick Detail

Inner Size (WHD)	200×200×118
Accuracy	controlling accuracy: ±0.5℃
Temperature distribution:	±1.0℃%(no-load)
Temperature range	Room temperature～300℃/400℃
Rate of work:	About 4.5 KW
Power	AC220V 50Hz

2.2 Brief Introduction:

Turbine Fan Large Capacity Industrial Drying Oven provide a stable test space for pre-heating, drying, changes about physics and chemistry testing. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.

2.3 Application:

It is mainly used for LED, LCM, CMOS, Touch panel, optical lenses, optical glass, optical fiber product manufacturing process baking, and silver adhesive curing and drying.

2.4 Characteristics:

1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. Use new high temperature resistant long shaft motor
3 Turbine fan.
4. Silicone forced tight
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system: PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specified.

2.5 Specifications:

Model	Inner size *WHD(cm)*	External size *WHD(cm)*	Temperature range (℃)	Heating up time	Accuracy (℃)	Uniformity (℃)	Power	Rate of work (kw)
LY-645	45×40×40	66×92×55	(A-D) A:200℃ B:300℃ C:400℃ D:500℃	RT～100℃ About 10min	±0.3	±1%	220V Or 380V	3.5
LY-660	50×60×50	70×125×65			±0.3	±1%		4.5
LY-690	60×90×50	80×156×65			±0.3	±1%		5.5
LY-6100	80×100×60	100×166×75			±0.3	±1%		8
LY-6120	90×120×60	110×186×75			±0.3	±1%		10
LY-6140	140×120×60	160×186×75			±0.3	±1%		12
LY-6160	160×140×80	180×206×97			±0.3	±1%		14
LY-6180	180×140×100	200×200×118			±0.3	±1%		16

2.6 Pictures:
Standard ovens
