PP PE Plastic Electrical Test Equipment , Electronic Melt Flow Indexer
PP PE Plastic Electrical Test Equipment , Electronic Melt Flow Indexer
PP PE Plastic Electrical Test Equipment , Electronic Melt Flow Indexer
PP PE Plastic Electrical Test Equipment , Electronic Melt Flow Indexer
Specifications
Brand Name :
LIYI
Model Number :
LY-RR
Place of Origin :
CHINA
MOQ :
1 Set
Price :
US$1399~2999
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100set per month
Delivery Time :
5-15days
Packaging Details :
export polywood case
Power :
AC220V±10% 50Hz
Plastic Testing Machine :
Electronic Melt Flow Indexer
Temperature rangeradius :
400℃
Temperature accuracyblade to jawand dust collector :
±0.2 ℃
Display resolution :
0.1℃
Maximum comsuption :
< 600W
Temperature recovery time :
less than 4 min.
Description

PP PE Plastic Electrical Test Equipment , Electronic Melt Flow Indexer

Discription:

LY-RR melt flow index tester can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide,

fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate

(MFR) or the melt volume flow rate (MVR) to be determined.

Standards:

GB/T3682-2000,ISO1133-97, ASTM1238

Characteristics:

  1. Fast heating speed, very small overshoot.
  2. High precision of constant temperature.
  3. Can fastly recover to constant temperature condition after padding.
  4. Can use maunal and automatical material trimming test method.

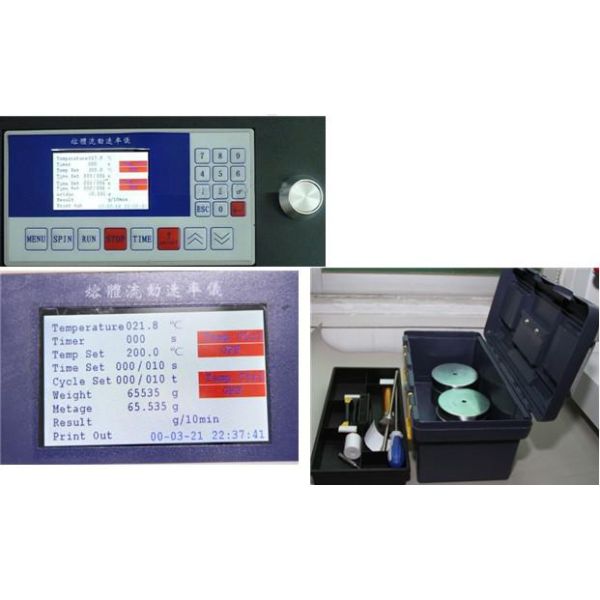

  5. LCD display, equipment with built-in micro printer, test result can be printed automaticaly.

Technical parameter:

Machine size(W*H*D)

250*510*350mm

Power

AC220V±10% 50Hz

Barrel parameters

Inner hole 9.55±0.025mm

Pistons parameters

Piston head: 9.475±0.015mm

Piston length

H=6.35±0.1mm

Paramters

Extrusion hole 1=2.095±0.005mm

Temperature parameter

With intelligent temperature control instrument,

with four pairs of significant temperature setting

control, PID parameters can be automatically set,

precision up to ± 0.1 degree centigrade

Temperature rangeradius

400℃

Temperature accuracyblade to jawand dust collector

±0.2 ℃

Display resolution

0.1℃

Maximum comsuption

< 600W

Temperature recovery time

less than 4 min.

Weight parameters

Weight accuracy

±0.5%

Basic configuration

0.325kg, 1.2kg, 2.16kg, 3.8kg, 5.kg, 10.0kg, 12.kg,

21.6kg

Position detection

Loop distance from up and down

30mm

Control precision

± 0.1mm

Test flow control

Times of cutting the material

0~10 times

Material cutting interval

0~999s(set reference Table 2)

Control flow reaches the set temperature without volatility

Barrel temperature time

15 min.

Material be installed

1 min

Material sample temperature recovery time

4 min.

When binder set

1min

PP PE Plastic Electrical Test Equipment , Electronic Melt Flow Indexer

PP PE Plastic Electrical Test Equipment , Electronic Melt Flow Indexer
