Desktop Constant Temperature And Humidity Testing Chamber 304 Stainless Steel
Desktop Constant Temperature And Humidity Testing Chamber 304 Stainless Steel
Desktop Constant Temperature And Humidity Testing Chamber 304 Stainless Steel
Desktop Constant Temperature And Humidity Testing Chamber 304 Stainless Steel
Specifications
Brand Name :
LIYI
Model Number :
LY-280
Certification :
CE
Place of Origin :
Dongguan , China
MOQ :
1 set
Price :
USD 5000-10000 / 1 set
Payment Terms :
T/T, Western Union, L/C, , D/A, D/P, MoneyGram
Supply Ability :
100 sets per one month
Delivery Time :
10-20 working days
Packaging Details :
glue wooden box
Material :
Steel
Size :
Customized
Temperature :
-70℃~150℃
Humidity :
20%~98%
Color :
Customized
Controller :
imported Tecumseh compressor
Description

Desktop Constant Temperature And Humidity Testing Chamber 304 Stainless Steel



Equipment summary:
Desktop constant temperature and humidity testing chamber manufacturer focuses on development and production of constant temperature and humidity testing machine.The machine specifically testing the materials in resistance of
heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.

Corresponding standard:
1GB11158 high-temperature technical condition.
2GB10589-89 low-temperature technical condition.
3GB10592-89 high-low-temperature technical condition.
4GB/T10586-89 humidity technical condition.
5GB/T2423.1-2001 low-temperature testing method
6GB/T2423.2-2001 high-temperature testing method
7GB/T2423.3-93 humidity and heat testing method
8GB/T2423.4-93 method of humidity and heat alternating
9GB/T2423.22-2001 temperature testing method
10IEC60068-2-1.1990 low-temperature testing method
11IEC60068-2-2.1974 high-temperature testing method
12GJB150.3 high-temperature test
13GJB150.4 low-temperature test
14GJB150.9 humidity test

Applicable industries:
The machine applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and
so on.

Technical parameter:

Model

LY-280

Inside size WxHxD (cm)

40x50x40

Temperature range

-10°C~+150°C±2°C(or requirment)

Humidity range

30%~95%RH±2%RH(or requirment)

Volatility / uniformly

≤±0.5°C/≤±2°C

Accuracy:

+0.5°C,-3%R.H

heated/cooling

About 4.0°C/min / about 1.0°C/min(specific condittion is cooling 5~10°C/min)

Heated speed:

1.0~3.0°C/min

Cool speed:

0.7~1.0°C/min

Material

SUS 304# stainless steel

Controller

Touch Screen Controller for South KoreaTEMI

Sensor:

PT100Ω/MV

Insulation material

High-temperature high-density amino acid ethyl ester foam insulation materials

Heated system:

Nickel-chromium alloy electric heating type heater

Humidity system:

Stainless steel surface evaporative humidifier

Cooling system

Totally enclosed air-cooled single-stage compression refrigeration method/ Original
French "Taikang"/ Totally enclosed air-cooled re-compression refrigeration methods
Diego

circulatory system:

low-noise air-conditioning-type motor. Multi-vane centrifugal wind wheel

Safe device

Leakage and over-load protector, compressor-overload protector, over warm, wet and
power
protector, overheating protector, the over-temperature protective device.

Fitting

recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet
gauze ball

Compressor

France“Taikang”

Power

1Φ 220VAC±10% 50/60Hz

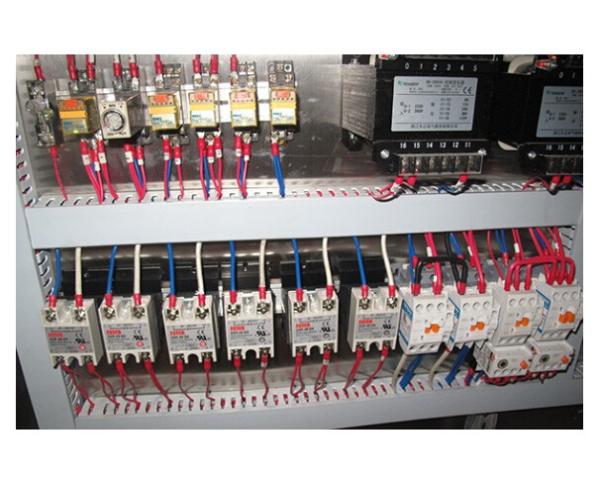

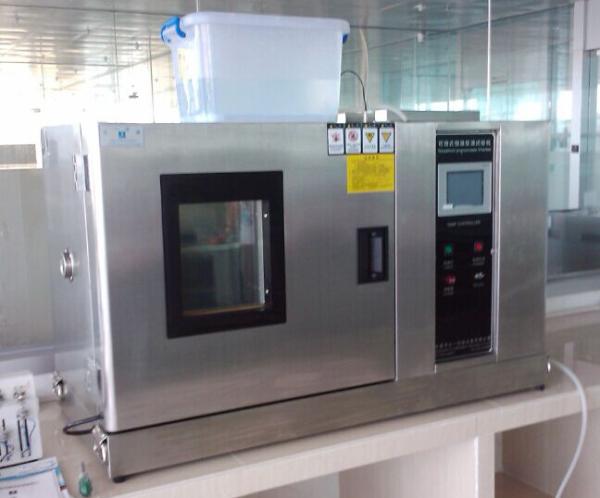

Picture showing :
Desktop Constant Temperature And Humidity Testing Chamber 304 Stainless Steel
Desktop Constant Temperature And Humidity Testing Chamber 304 Stainless Steel
