Specifications
Brand Name :
LIYI
Model Number :
DVK-1A-6
Certification :
ISO, ASTM, GB/T, BSEN
Place of Origin :
Dongguan
MOQ :
1
Price :
Pending negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
100 units per month
Delivery Time :
5-20 days
Packaging Details :
Plywood Box
Test Force :
10g - 1000g (Can Extend to 2kgf)
Hardness Conversion Scale :
Hra, Hrb, HRC, Hbw, etc
Support Connect with Camera :
Yes
Eyepiece :
10X with Inbuilt Encoder, Auto Calculate
Calibrating Method :
Standard Hardness Test Blocks
Test Mode :
Hv or HK
Quality Automatic Judgement Function :
Yes
Turret :
Automatic (10X, 20X, 40X, 40X, Hv - HK Indenter)
Description

Digital Micro Vickers Hardness Test with Vickers Knoop Diamond Indenter

1. We are Manufacturer, selling our product.
2. Give you the best price.

3.The Fastest delivery for urgent orders.

4. Guaranteed goods high accuracy and stability

5. Provide our customers 2 year after sales service.

Main Function:

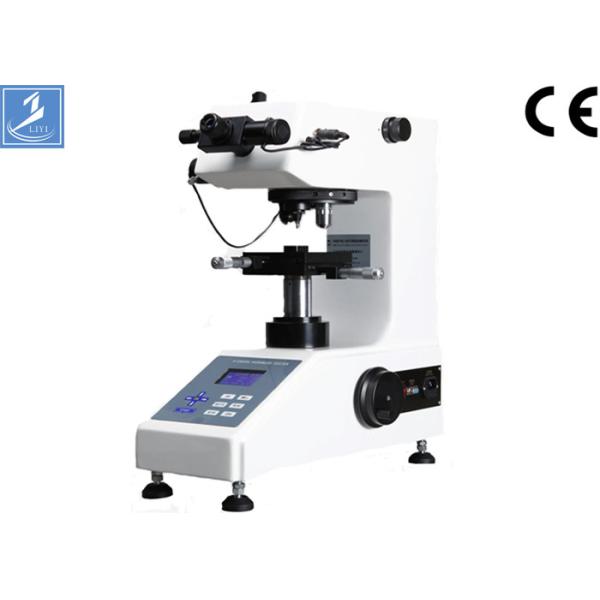

This is a high-tech and new product combining the optics, mechanic and electrics features. With a novel and pleasing appearance, the internal structure is mainly made by stainless steel parts, has better performance. It adopts a new type of automatic turret mechanism, equipped with both Micro Vickers and Knoop indenters. These two indenters adopt the independent alignment device which ensures that Vickers and Knoop indentation are at the same center position. It can directly shows the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time on the large screen. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. With the up and down limit alarm function, test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness. And it can be equipped with LCD video measuring device and CCD image automatic measuring system.

Application range:
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Technical Specification:
Model DVK-1A-6
Turret Automatic
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Test Mode HV/HK
Loading Method Automatic (Loading/Dwell/Unloading)
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data Output Built-in Printer,RS232 Interface
Hardness Reading LCD Display, Data can be saved
Objective 10× (Observe),20× (Measure),40× (HV Measure), 40× (HK Measure)
Eyepiece 10×
Total Magnification 100× ,200× ,400× , 400×
Resolution 0.03μm ,0.015μm
Dwell Time 0~95s
Light Source Halogen Lamp
X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 90mm
Throat 120mm
Power Supply AC220V,50Hz
Execute Standard ISO 6507,ASTM E384,JIS Z2244,GB/T 4340.2
Dimension 495×305×550mm,Packing Dimension: 600×360×800mm
Weight Net Weight: 35kg,Gross Weight: 44kg

Packing List:
Name Qty Name Qty
Instrument Main Body 1 set 10× Digital Measuring Eyepiece 1 pc
Diamond Micro Vickers Indenter 1 pc Diamond Knoop Indenter 1 pc
10×, 20×, 40×, 40× Objective 4 pcs Weights 7 pcs
Power Cable 1 pc Cross Test Table 1 pc
Thin Specimen Test Table 1 pc Flat Clamping Test Table 1 pc
Filament Clamping Test Table 1 pc Level 1 pc
Horizontal Regulating Screw 4 pcs Halogen Lamp 12V,15~20W 1 pc
Fuse 1A 2 pcs Screw Driver 1 pc
Inner Hexagon Spanner 1 pc Color Filter 1 pc
Plastic Absorbing Plate 1 pc Hardness Block 400~500 HV0.2 1 pc
Hardness Block 700~800 HV1 1 pc Hardness Block 700~800 HK1 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1copy

Product Effects

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Company Information

LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Digital Micro Vickers Hardness Test With Vickers Knoop Diamond Indenter

Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
