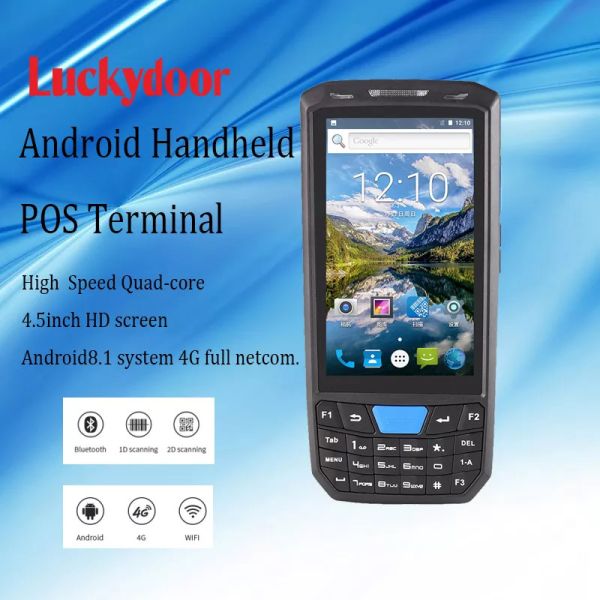

Android 9.0 Barcode Scanner Handheld Mobile Computer with Honeywell 1D Laser Scanner, Support Wireless Wi-Fi 4G LTE for Warehouse Delivery Retail Inventory Management System, IP66 Rugged PDA
Product Description:
This Android pda devices use 4.5inch touch screen which resolution 480*854. It is lightweight, multifunction android handheld computer with keyboard. BUILT-IN LARGE CAPACITY RECHARGEABLE BATTERY 4200MAH, it can be long working time. It is suitable for manufacturing factories, warehouse, store back room etc. It improve users productivity and efficiency to a new level, the 4G technology makes work easier, more convenient and more efficient.
Product Features:
• Android Barcode Scanner with Leading technology, based on Android 9.0 deep development.
• Built with Famous 1D Scanner, help your inventory management with exceptional accuracy and efficiency.
• Support 4G/3G/ dual-band Wi-Fi/ Bluetooth, signal stability which does not easily lose connectivity.
• Designed for harsh working environments. Compliant with IP66 enterprise-grade protection, it can be dust-proof, and splash-proof.
• Packed with: 1* mobile Android handheld scanner, 1* 4200mAh battery, 1* Type-C cable & adaptor.
Product Advantages:
• Based on android 9.0 platform, user-friendly interface, and a long lifecycle that matches that of th traditional RT810.
• Reduces user fatigue by offering all of the functionality needed in an easy -to-carry from factor.
• Allows mobile workers to seamlessly interact with data in virtually any lighting condition.
• Durable construction and sealing deliver reliable operation and maximize worker uptime.
• Delivers full wireless coverage for applications inside and outside of the four walls,allowing real-time access to critical data.
• Delivers fast business transactions, allowing workers to complete multiple tasks quickly.
• Provide functions test demo and the SDK code very easy to developed your Application.
Product Specification:
Dimensions | 166mm(L)X77.5mm(W)X22mm(D) |
Weight | <500g |
Display Screen | 4.5inch IPS 480*854 px with Multi-point touch capactive screen |
Expand Port | SIM card, micro SD (TF) Card |
Communication Interface | Type-C USB |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4200mAh |
Frequency | 8ohm 1W speaker |
Key | Silicone keyboard |
OS | Android 9.0 |
CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
RAM | 1G/2G RAM |
Flash ROM | Standard 8G/16G NAND Flash Storage |
micro SD/TF port (Max up to 32G) | |
WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
WCDMA 3G | B1,B2,B5,B7,B8 |
GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Camera | 8MP autofocus camera with flash |
GPS | Support A-GPS |
Operating | -20°C to 55°C |
Storage Temperature | -25°C to 70°C |
Environment Humidity | 5%RH-95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP66 |
1D Laser Scanner | Symbol 955, HoneywellN4313,Mingde966 |
Resolution | 4Mil minimum width |
Ambient Light | 10000ft.candles(107640 lux) |
Scanning Speed | 104(±)12/sec (bothway) |
Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
CMOS Scanner | Honeywell N6603,NewLand 3096 |
The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
focus element (VLD) | 655nm ± 10nm |
Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
Frequency | 13.56MHz |
Protocol | ISO/IEC 18092 (ECMA 340) |
Range | 2-4cm |
Product Application:
2.Transportation, logistics tracking
3.Hospital ward inspection and management
4.Electric power inspection
5.Chain retail goods management
6.Government and Private Sector
7.mobile communications
Product Pictures:
FAQ:
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
