Specifications
Brand Name :
Luckydoor
Model Number :
L500
Certification :
CE FCC Rohs
Place of Origin :
Made in China
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
50K-60Kpcs / month
Delivery Time :
1-3 working days
Packaging Details :
Single standard packing box and carton
Dimension :
64mm*84mm*152mm
Resolution :
640*480
Cable :
1.8M straight
Precision :
4mil
Light Source :
617nm LED Aimer, White LED
Drop Resistance :
1.5m
Depth of field :
30mm-230mm (EAN13 13mil 90%PCS)
Interface :
USB
Description

PDF417 Data Matrix Wired Handheld CMOS QR Code reader portable USB 1D 2D Barcode Scanner

Product Description:

Luckydoor L500 is a handheld wired CMOS image barcode scanner that can read 1D / 2D QR bar codes. Accurate identification assures rapid scanningof exceptional codes. With upgraded decoding engine and 640*480 CMOS image sensor, reading barcode is much more easier and faster. Plug and play, no need to install any software or drivers, simple operation.

Equipped with high-performance CMOS imagingchip as well as white soft light and red light to filllight and focus, the scanner can easily aim andidentify the code shown on the screen or printedon the paper even in poorly-lit environment. Adapts to various environment. Captures1D/2D barcodes on screen and papereven in poorly-lit environment.

It is very cost-effective and suitable for those who have a small budget but want to improve the working efficiency.

The Luckydoor 2d barcode scanner makes your job easy if you own a small business. The powerful bar code decoding capabilities and durable appearance make it can be widely used in supermarkets, convenience stores, warehouse, library, bookstore, drugstore, retail shop for file management, inventory tracking and POS.

Product Features:

Universal plug and play

Impact resistant housing

Multiple changing color LED on sides and top

Built in high performance 2D engine & decoder

Powerful Decoding Capability

Product advantage:

Multi-purpose, for all your needs. Superior, both inside and outside.

Accurate identificationassures rapid scanning of exceptional codes.

Quick scanning, with HighPerformance Imaging Chip CMOS

With fast image decoding algorithm, the scannercan accurately read1D/2D codes even if they are contaminated, wrinkled ordistorted

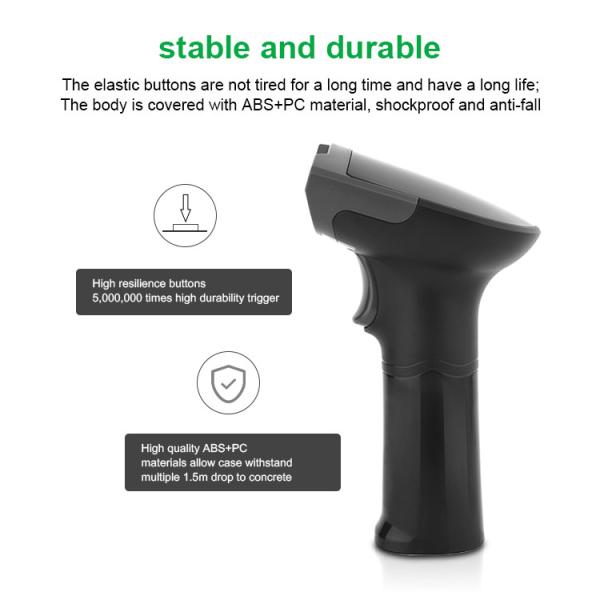

Sturdy Anti-shock and Durable Design and Dual Light

Product Specifications:

Performance Parameters
Light Sources 617nm LED Aimer, White LED
Supported Symbologies

1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39,

Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5,

Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey,

GS1 128, code32

2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code,

Micro QR, Direct Chinese

Scan Type Image CMOS
Resolution 640*480
Scan Method Manual/Continuous/Automatic scanning
Scan angle Yaw 60°,Rotation 360°,Pitch 60°
Precision ≥4mil
Depth of scan field 30mm-230mm (EAN13 13mil 90%PCS)
Error Rate Less than 1/5million
Interface USB-HID, USB-COM, RS232
Physical Parameters
Dimensions 70.5mm*86.2mm*165.2mm
Weight 100g
Material ABS+PC
Cable Length 2m
Environmental Parameters
Operating Temperature -20℃ ~ 50℃
Storage Temperature -40℃ ~ 70℃
Relative Humidity 5%~95% RH(Non-condensing)
Ambient lighting 0~100000LUX
Drop/Shock Resistance Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Working Voltage DC5V±5%
Operating Current 120mA

Product Pictures:

Data Matrix Wired Handheld CMOS QR Code Reader Portable USB 1D 2D Barcode Scanner

Data Matrix Wired Handheld CMOS QR Code Reader Portable USB 1D 2D Barcode Scanner

Data Matrix Wired Handheld CMOS QR Code Reader Portable USB 1D 2D Barcode ScannerData Matrix Wired Handheld CMOS QR Code Reader Portable USB 1D 2D Barcode Scanner

Data Matrix Wired Handheld CMOS QR Code Reader Portable USB 1D 2D Barcode Scanner

FAQ:

1. Do your devices support other language except English ?

Yes, our device support English, Spanish, Arabic, etc.

2. Can you accept customized logo ?

Yes, we accept customized logo, but order quantity have to reach the MOQ. For details, pls contact us.
