Handheld USB 1D/2D Barcode Scanner,2D Barcode Scanner For Supermarket
Product Description:

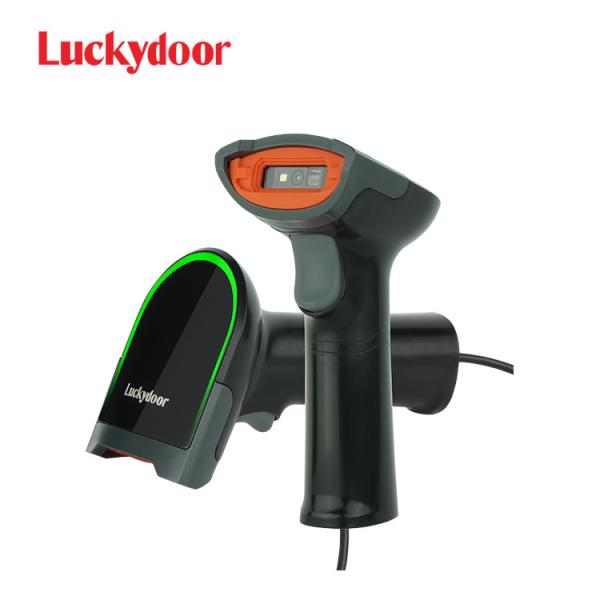

L500 is a handheld wired image barcode scanner that can read 1D / 2D bar codes. With upgraded decoding engine and 640*480 CMOS image sensor, reading barcode is much more easier.Plug and play, no need to install any software or drivers, simple operation.It is very suitable for those who have a small budget but want to improve the working efficiency. The Luckydoor 2d barcode scanner makes your job easy if you own a small business.The powerful bar code decoding capabilities and durable appearance make it can be widely used in supermarkets, convenience stores, warehouse, library, bookstore, drugstore, retail shop for file management, inventory tracking and POS(point of sale), etc.
Product Features:
• Universal plug and play
• Impact resistant housing
• Multiple changing color LED on sides and top
• Built in high performance 2D engine & decoder
• Powerful Decoding Capability
Product Specifications:
Performance Parameters | |||||||
Light Sources | 617nm LED Aimer, White LED | ||||||
Supported Symbologies | 1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39, Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5, Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey, GS1 128, code32 2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, Micro QR, Direct Chinese | ||||||
Scan Type | Image CMOS | ||||||
Resolution | 640*480 | ||||||
Scan Method | Manual/Continuous/Automatic scanning | ||||||
Scan angle | Yaw 60°,Rotation 360°,Pitch 60° | ||||||
Precision | ≥4mil | ||||||
Depth of scan field | 30mm-230mm (EAN13 13mil 90%PCS) | ||||||
Error Rate | Less than 1/5million | ||||||
Interface | USB-HID, USB-COM, RS232 | ||||||
Physical Parameters | |||||||
Dimensions | 70.5mm*86.2mm*165.2mm | ||||||
Weight | 100g | ||||||
Material | ABS+PC | ||||||
Cable Length | 2m | ||||||
Environmental Parameters | |||||||
Operating Temperature | -20℃ ~ 50℃ | ||||||
Storage Temperature | -40℃ ~ 70℃ | ||||||
Relative Humidity | 5%~95% RH(Non-condensing) | ||||||
Ambient lighting | 0~100000LUX | ||||||
Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | ||||||
Electrical Parameters | |||||||
Working Voltage | DC5V±5% | ||||||
Operating Current | 120mA |
Product Pictures:
Product advantage:
• Multi-functional Scanner
• Sturdy Anti-shock and Durable Design
• Widely Use Range
• Plug and Play
FAQ:
1. Are you manufacturing company or a trading company?
2. Is it difficult to use?
Very easy to use. Plug in and go.
3. Does this work with all book barcodes as well?
Yes this works on all book barcodes,and it works for all paper codes (1d and 2d) as well as electronic screen codes.
4. Is there software (or a program) that is needed to be able to track the barcode that was scanned to keep track of quantity that is being scanned?
Needed? No. This acts like a keyboard input so whatever you scan is put where the cursor is. You can use any software to track; excel, access, google sheets, wasp, so on...
