2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision
2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision
2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision
2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision
2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision
2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision
Specifications
Brand Name :
Luckydoor
Model Number :
K-3160(2500)
Certification :
CE FCC Rohs
Place of Origin :
Made in China
MOQ :
1pc
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
50K-60Kpcs / month
Delivery Time :
1-3 working days
Packaging Details :
Single standard packing box and carton
Private mold :
yes
Scan type :
CMOS
Sensor :
2500 Pixel
Resolution :
3mil 4mil
OS :
Windows ,Android,Linux
Cable :
1.8m
Decoding :
1D
Material :
ABS+PC
Description

USB CCD Barcode Scanner Reader ,2500 Points CMOS Handheld CCD Barcode Scanner

Product Description:

This CCD USB barcode scanner equipped with power 32 bit CPU and advanced decoding algorithm which deliver excellent decoding performance,it can read 3mil small tiny barcodes like laser barcode scanners ,and this handheld CCD reader also is better at reading scratched,distorted,poor printed barcodes than laser scanners.

Product Features:

• 2500 pixels CCD image sensor

• Scan Speed >= 270 times/sec

• Max. reading resolution: 3mil (0.0762mm)

• Depth of Field: 15~330mm (EAN, 13mil/0.33mm, PCS 90%)

• Drop resistance: 1.5 meters onto the concrete

• Auto-sensing (presentation) mode available

Product Specification:

Performance Parameters
Performance Parameters 617nm,RED LED
Supported Symbologies

UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII,

China Post, Plessey,MSI, Code 93, Code 128, Industrial 2 of 5, Code 11,

Interleave 2 of 5, Matrix 2 of 5, ISBN, ISSN, Code 32 (Italian pharm code),

Code 39 extended, GS1-128 and ITF-14, SISAS,GS1Omnidirectional,

GS1 Limited, Aviation25, RSS 14.
Scan Type 2500 Point pixel ccd Image Sensor
Scan Speed ≥270times/s
Scan Method Manual/Continuous /Automatic Scanning
Scan Angle Yaw 55°, Rotation 30°, Pitch 65°
Prevision 4mil(0.1mm), optional 3mil
Depth of scan field 20-330mm (0.33mm, PCS90%)
Error Rate Less than 1/5million
Interface USB-HID, USB-COM, RS232 PS2
Physical Parameters
Dimensions 102mm*71mm*177mm
Weight 171.3g
Material ABS+PC
Cable 2M Straight
Environmental Parameters
Operating Temperature -20°~ 50℃
Storage Temperature -40°~ 70℃
Relative Humidity 5% - 95% RH (Non-condensing)
Drop/Shock Resistance Withstands multiple times 3 meters drops to concrete
Electrical Parameters
Voltage DC5V±1%
Operating Current 150mA

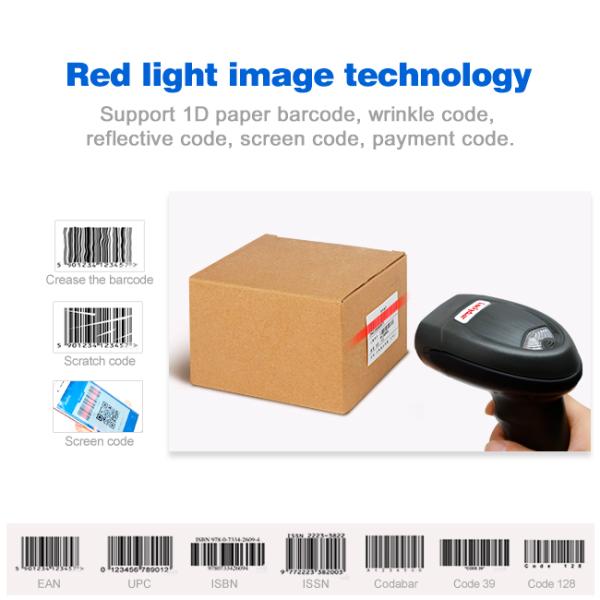

Product Pictures:

2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision

2500 Points CMOS Handheld USB CCD Barcode Scanner 3mil 4mil Prevision

Product Application:

Manufacturing

Transportation & Logistics

Healthcare

Point of sales system

Retails stores

Supermarkets and chain stores

FAQ:

1, How does a CCD scanner work?

Scanners operate by shining light at the object or document being digitized and directing the reflected light (usually through a series of mirrors and lenses) onto a photosensitive element. In most scanners, the sensing medium is an electronic, light-sensing integrated circuit known as a charged coupled device (CCD).

2, What operating system this CCD barcode scanner compatible ?

It is support Windows,Android and Linux OS

3, Can this USB handheld barcode scanner read barcodes from my mobile phone?

Yes ,it can read barcodes from paper as well as from smart phones ,or other devices LED displays
