Retail Micro PDF417 POS Barcode Scanner 100000LUX Code 128 Barcode Reader
Retail Micro PDF417 POS Barcode Scanner 100000LUX Code 128 Barcode Reader
Retail Micro PDF417 POS Barcode Scanner 100000LUX Code 128 Barcode Reader
Retail Micro PDF417 POS Barcode Scanner 100000LUX Code 128 Barcode Reader
Specifications
Brand Name :
Luckydoor
Model Number :
D20
Certification :
CE FCC Rohs
Place of Origin :
Made in China
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50K-60Kpcs / month
Delivery Time :
1-3 working days
Packaging Details :
Single standard packing box and carton
Scan type :
CMOS
Interface :
USB
OS :
Windows ,Android,Linux
Materials :
ABS+PC
Private mold :
yes
After sale service :
1 year
Scan barcodes :
1D 2D QR
Resolution :
4mil
Description

Handheld USB 1D/2D Barcode Scanner ,QR Code 2D Handheld Barcode Reader For Retail ,Point Of Sales

Product Description:

With a design that unifies ergonomics with slim, this handheld 2d barcode scanner ensures the comfort and productivity of its operator and also meets modern-day aesthetic standards.The 1D/2D handheld barcode scanner provides a cost-effective data capturing solution that allows users to enjoy the capabilities of a 2D barcode scanner, for the price of a 1D barcode scanner.

Product Features:

• High-performance CPU that captures high-density, high-volume, and distorted barcodes on paper or screen

• Cost efficient (2D scanning capabilities for the price of a 1D scanner)

• Can plug directly into any Point of sales machine or other PC

• Support multiple languages and custom prefix & suffix

Product Specification:

Light Sources 617nm LED Aimer, White LED
Supported Symbologies

1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39,

Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5,

Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey,

GS1 128, code32

2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code,

Micro QR, Direct Chinese
Scan Type Image CMOS
Resolution 640*480
Scan Method Manual/Continuous/Automatic scanning
Scan angle Yaw 60°,Rotation 360°,Pitch 60°
Precision ≥4mil
Depth of scan field 30mm-230mm (EAN13 13mil 90%PCS)
Error Rate Less than 1/5million
Interface USB-HID, USB-COM, RS232
Physical Parameters
Dimensions 70.5mm*86.2mm*165.2mm
Weight 100g
Material ABS+PC
Cable Length 2m
Environmental Parameters
Operating Temperature -20℃ ~ 50℃
Storage Temperature -40℃ ~ 70℃
Relative Humidity 5%~95% RH(Non-condensing)
Ambient lighting 0~100000LUX
Drop/Shock Resistance Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Working Voltage DC5V±5%
Operating Current 120mA

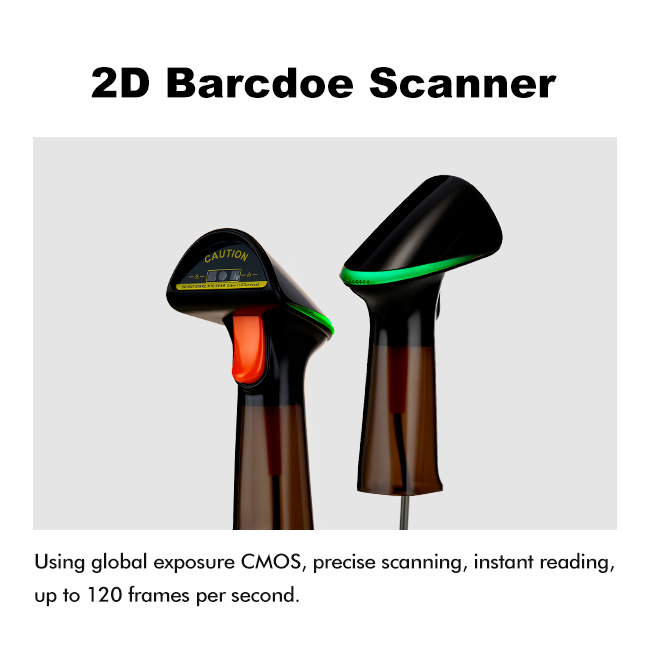

Product Pictures:

Retail Micro PDF417 POS Barcode Scanner 100000LUX Code 128 Barcode ReaderRetail Micro PDF417 POS Barcode Scanner 100000LUX Code 128 Barcode Reader

Product Application:

Point of sales

Public library

Transportation and logistic

Supermarkets

Shopping mall

Convenience stores

FAQ:

1, What kind of interface this 2d handheld barcode scanner support ?

It is fixed cable ,so it is only support USB ,but RS-232 interface is available

2, Does this handheld 2D barcode scanner read barcodes from mobile screen?

Yes ,it can read both paper and mobile screen barcodes

3, Are you a manufacturer?

Yes ,our factory located in guangzhou ,China
