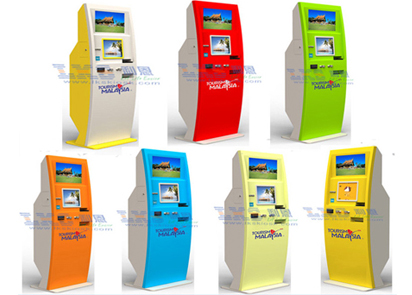

Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
Specifications
Brand Name :
LKS / ODM / OEM
Model Number :
LKS8501B
Certification :
CE, FCC
Place of Origin :
China
MOQ :
5 Units
Payment Terms :
T/T in advance, Western Union, L/C
Supply Ability :
1000 units per month
Delivery Time :
4-6 weeks upon payment
Packaging Details :
Film wrap, foam and wooden box
Cheque :
Scan and storage
Billnote :
Validate and accept
Receipt printer :
80 mm width
Description

Restaurant Dual Touch Screen Promotional Kiosk Coin Prepaid Equipment

Standard configuration:

  1. 32 inch monitor
  2. 10 inch monitor
  3. 10 inch touch screen
  4. Webcam
  5. Industrious PC
  6. Cheque scanner
  7. Speaker
  8. Billnotes validator
  9. Coin acceptor
  10. Receipt printer
  11. Encrypted Pinpad
  12. Digital signature pad
  13. Bank card reader
  14. Member card reader
  15. UPS
  16. Alarm system sensor
  17. Free standing dual screen cabinet

Specification is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 10 inch/ 32 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 10 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam

Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level IP65
Operating Temperature 0° C to 40° C
Motorized card reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage DC 24V±5%
Cash acceptor Validation Rate 98% or higher
Banknote size Width: 62or 71mm; Length:120-160mm
Detection ability High detection of forged bills
Bill Escrow one bill
Cashbox capacity 1000 banknotes max
Operating Voltage 12V DC or 24V AC
Operating Temperature 0° C to 55 ° C (12 V DC platform); -18° C to +60 ° C (24 V AC platform)
Coin acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Coin Accepted Size

Coin diameter: 15-31.5mm ( optionally up to 32.5mm)

Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm)
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Cheque scanner/acceptor Media size Width:60~110mm;Length:130~230mm;Thickness:0.08~0.13mm
Image scan Range:A6 size(105mm),Duplex scan
Method:Color CIS(control image sensor)
Resolution:200 dpi basic spec,256 gray scale
Speed:500mm/s
MICR recognition E138&CMC7
Interface USB high speed
Digital signature pad Size of the induction zone 4*3 inch
The precision of the digital pen 0.25 mm (0.01 inch)
Digital board resolution Digital board resolution
Digital pen induction height 15 mm maximum
Reading rate 100 pps (points per second)
Interface Interface
Others LED status indication
UPS Input voltage 145-290 V
Output voltage 200-255 V
Output frequency 50±0.5Hz
Transient time 50±0.5Hz
Max time for supplying a single PC 3~20minutes (for single PC)
Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speaker Features Dual channel amplified speakers for Stereo ,8Ω 5W
Webcam 500 pixels,no driver
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case

Other Optional hardware components List is as following:

  1. Barcode scanner
  2. Coin / Cash dispenser
  3. Palm vein scanner
  4. WIFI or 3G Wireless module
  5. ID / Driver licence / Social insurance card double-side scanner
  6. A4 printer


Multi-function:

  • School
  • Pharmacy
  • Clinic
  • ATM / VTM / ITM booth
  • Airplane boarding room
  • High railway waiting room
  • Tourism sites
  • Hospital
  • Bank
  • Retailer store
  • Human resources room
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area


Our Advantages:

Suitable for 24 / 7 excution:

  • Inner air recycling design for heat and humidity control
  • Alarm system sensor with reporting function
  • Less power consuming and more stable Industrious modules
  • Fixed on floor and lockable

Cost-effective Solution:

  • Independent modular hardward components
  • Complete and competitive supply chain management
  • Easy maintenance
  • Popular enclosure design

Appearance:

  • Anti-vandal
  • Eyesight attractive
  • Brand promotion
  • Multi-color and customizable decorations
  • High-quality design sketch
  • Elegant and unique design

The Reason Why You choose LKS:

  1. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like ;
  2. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.

Restaurant Dual Touch Screen Promotional Kiosk , Coin Kiosk
