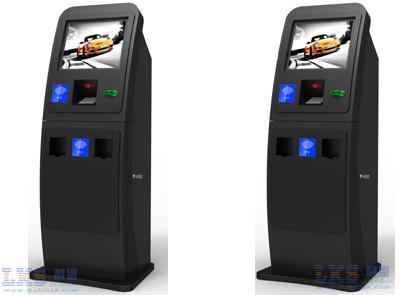

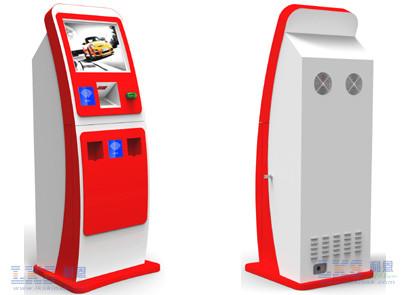

Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner
Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner
Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner
Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner
Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner
Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner
Specifications
Place of Origin :
China
Brand Name :
LKS or customized
Certification :
CE, FCC
Model Number :
LKS8327E
MOQ :
10 units
Packaging Details :
Film Wrap,Foam and Wooden Box
Delivery Time :
4-6weeks upon payment
Payment Terms :
T/T in Advance
Supply Ability :
1000-2000 units per month
Description

Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner

Customize Options:

  1. Personalized colors, finish, Logo & advertising
  2. PC upgrade
  3. Enclosure design
  4. Touch Screen size
  5. Integrated components
  6. Operating system
  7. Lockable computer & monitor & compartments

Main functions :

  1. Type:Bill Payment Kiosk, self-service kiosk, touchscreen kiosk
  2. Application: Indoor
  3. Supported OS: windows 7 or windows 8 or Linux
  4. optional size of screen: 17inch, 19inch or upon customers’ request
  5. Touch Screen: SAW/IR/Capacitive
  6. Display:TFT,LCD, AUO or others
  7. Kiosk Color: upon the customer’s request
  8. Material Feature:Anti-dust, Anti-vandal
  9. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  10. Logo:By customer’s needs
  11. Parts: Cash acceptor/Coin acceptor/Card reader/receipter printer….
  12. Warranty: 1 year
  13. Power supply: 110-120V, 220V-240V or optional



Description:

Bill payment kiosk is a recharge kiosk with display LCD, EPP and credit / bank card reader. Bill payment kiosk can be a device which generate considerable movie ticket payment, coupon ticket printer. Which widlely use in moive theater, restaurants, convention centers and other Public areas.


Applications:

  • Bill Payment Kiosk
  • Marketing Kiosk
  • Music Download Kiosk
  • Multimedia Kiosk
  • On-Line Banking Kiosk
  • Order Entry Kiosk
  • Bespoken Kiosk
  • Standing Payment Kiosk


Building Directory And Wayfinding Kiosk Self-service Betting Terminals Gambling Bill Payment Kiosk With QR Scanner was designed having in mind the components that can integrate. The transact is the chameleon of the kiosks, because it can easily adapt the needs of each client.

Standard hardware components List of Building Directory And Wayfinding Kiosk Self-service Betting Terminals Gambling Bill Payment Kiosk With QR Scanner is as following:

Components Details
PC system Industrial Board Advantech AIMB 562/Seavo H6116/ Gigabyte
CPU Intel Dual- Core G2020 ,2.9GHZ
RAM 2GB /4 GB
HDD 320G / 500G
Interface 2 RS-232 Ports;1 LTP;4 USB Ports,1 10/100M Net Port
PC Power Supply Great Wall / HUNTKEY
LCD monitor angle horizontal 100°above;Vertical 80°above
Brightness 250cd/m2
Screen Size 17 inch/19inch or other size
Contrast 1000:1
Backlight tube life > 40,000hours
Max. resolution 1280×1024 or 1920*1080
Touch screen Screen Size 17/19 inch Diagonal or other size
Resolution 4096x4096
High precision and durability, high Transparence , Orientation precision less than 2mm(0.080 inch); pure tempered glass;Single-point touch Life expectancy > 50,000,000 times
Bank/Credit Card Reader Interface RS232 or USB
Card Type Support IC Card, Magcard, Mifare S50,S70, RF Card, UL Card
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Certificate EMV level.1
Encrypted Pinpad Keylift~span 2,000,000 cycles
Certificate PCI 2.0
Key trip >2.5mm
Protection level ip65
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories USB ports, speakers, screws, fans, cables, Wire-lan port, etc.
Operation System Win 7 or Win 8 operation system without license
KIOSK Cabinet Durable all steel anti-graffiti enclosure, Slim and smart design; Easy to install and operate; Moisture proof, Antirust,Anti-acid, Anti-dust,Static free, color and LOGO upon clients request
Packing Security Packing method wooden case with bubble foam


Other Optional hardware components List of Building Directory And Wayfinding Kiosk Self-service Betting Terminals Gambling Bill Payment Kiosk With QR Scanner is as following:

  1. Thermal Printer
  2. Movie Ticket Printer
  3. RFID card reader
  4. 1D or 2D Barcode scanner
  5. Encrypted Pin Pad
  6. Bank / Credit card reader
  7. Web camera
  8. Wifi / 3G moudle


Main designs of Building Directory And Wayfinding Kiosk Self-service Betting Terminals Gambling Bill Payment Kiosk With QR Scanner:
Indoor SAW / IR / Capacitive Bill Payment Kiosk Anti-vandal With QR Scanner
