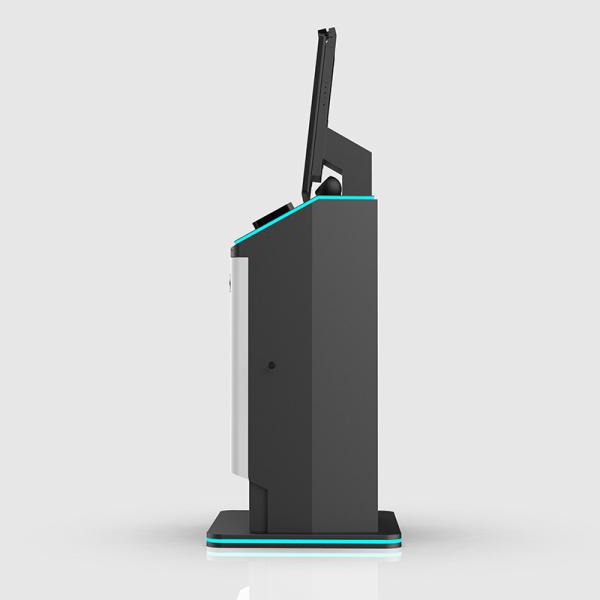

Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Specifications
Brand Name :
LKS or OEM
Model Number :
LKS8227B
Certification :
CE, FCC
Place of Origin :
China
MOQ :
10 units
Payment Terms :
T/T in Advance
Supply Ability :
1000-2000 units per month
Delivery Time :
4-6 weeks after payment
Packaging Details :
Film Wrap,Foam and Wooden Box
Function1 :
Thermal Printing
Function2 :
Passport Scanning
Function3 :
Credit Card Reader
Function4 :
Payment device by POS/Cash/Coin
Function5 :
Web Camera
Function :
OEM ODM
Appearance :
Wall Mounted / Floor Stand Kiosk
Screen :
TFT LCD Capacity Touch Screen
System :
Windows/Android OS
Option :
Human Sensor
Description

Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel

Holiday Village Self Passport Checkin Terminal Check Out POS Kiosk For Hotel

Standard hardware components List:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case

Holiday Village RS232 Check In Kiosk Check Out POS Terminal For HotelHoliday Village RS232 Check In Kiosk Check Out POS Terminal For HotelHoliday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel

LEAN is one of Chinese biggest manufacturer of Self-service Kiosks for over 12 years, can fully custom appearance, Logo and functions (OS/Motherboard/Screen/Printer/Scanner/POS etc) upon the requirement.


Multi-application:

  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Shopping Mall
  • Bus station
  • Airports
  • Other public areas



Main designs of Custom Self Service Payment Kiosk

Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel
