Galvanized 72.5KV HV High Voltage Disconnect Switch 3 Phase
Galvanized 72.5KV HV High Voltage Disconnect Switch 3 Phase
Galvanized 72.5KV HV High Voltage Disconnect Switch 3 Phase
Galvanized 72.5KV HV High Voltage Disconnect Switch 3 Phase
Galvanized 72.5KV HV High Voltage Disconnect Switch 3 Phase
Galvanized 72.5KV HV High Voltage Disconnect Switch 3 Phase
Specifications
Brand Name :
XG
Model Number :
GN19
Certification :
ISO,CCC
Place of Origin :
XIAN
MOQ :
1 SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 SETS
Delivery Time :
3-7 DAYS
Packaging Details :
WOODEN CARTON
Frequency :
50/60Hz
Poles Number :
3
Phase :
3 phase or single phase
Material :
galvanized sheet and accessories
Certificate :
ISO CCC
Standard :
GB, IEC Standard
Function :
break or switch the line.
Description

3 Phase 72.5KV HV High Voltage Disconnect Switch

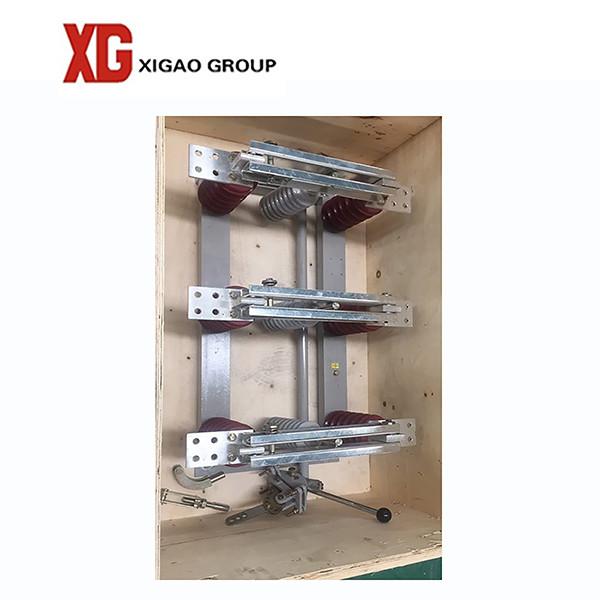

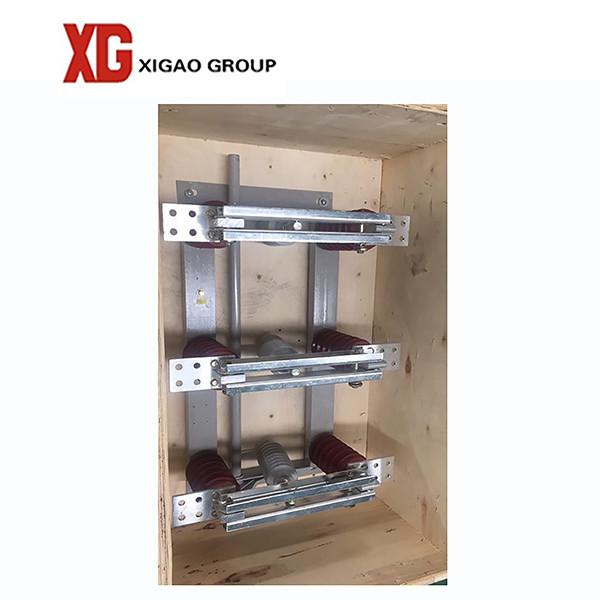

1. GN19 Indoor Electric Disconnector Switch

Indoor disconnect switch is a indoor type electric disconnect switch, rated voltage 12kv 15kv 20kv 33kv 40.5kv 72.5kv , three phase, AC 50-60Hz. Used for breaking and isolating the circuit, maintenance personnel can clearly see whether the circuit is separated, to ensure their safety. The innovative structure of disconnector is also fabricated with an earthing switch. It's quality reaches a international IEC standard.

2.Product Parameter of GN19 Disconnector Switch

Model Rated voltage(kV) Rated current(A) Rated short-timewithstand current(kA/4s) Rated peakwithstand current(kA)
GN19-12/400-12.5 12 400 12.5 31.5
GN19-12/630-20 12 630 20 50
GN19-12/1000-31.5 12 1000 31.5 80
GN19-12/1250-31.5 12 1250 31.5 80
GN19-12C/400-12.5 12 400 12.5 31.5
GN19-12C/630-20 12 630 20 50
GN19-12C/1000-31.5 12 1000 31.5 80
GN19-1C2/1250-31.5 12 1250 31.5 80

3. Product feature OF GN19 Disconnector Switch

Stable and reliable performance

Good compatibility

Free maintenance and long service life

Suitable for occasions with frequent operation.

4. Product qualification

5. Order warranty

6.Contact us

Emma ma

Phone/wechat/whatsapp: 0086 13319220197

Wechat ID: Sales_E

Email: emma@zgxgdn.com; 40516034@qq.com;

QQ: 574306294
