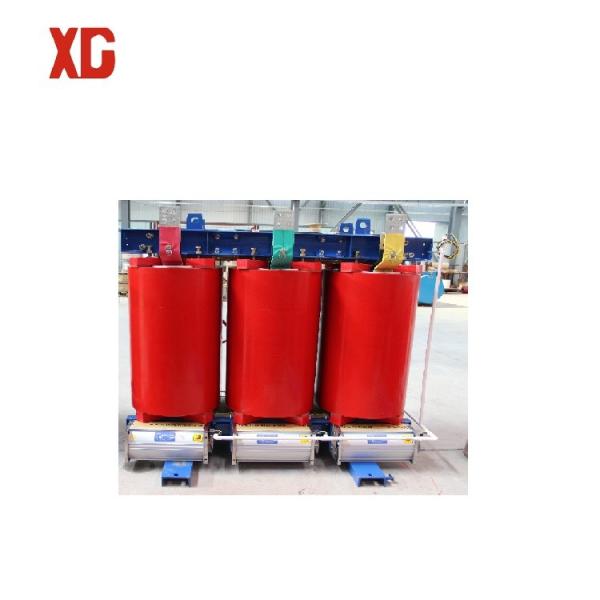

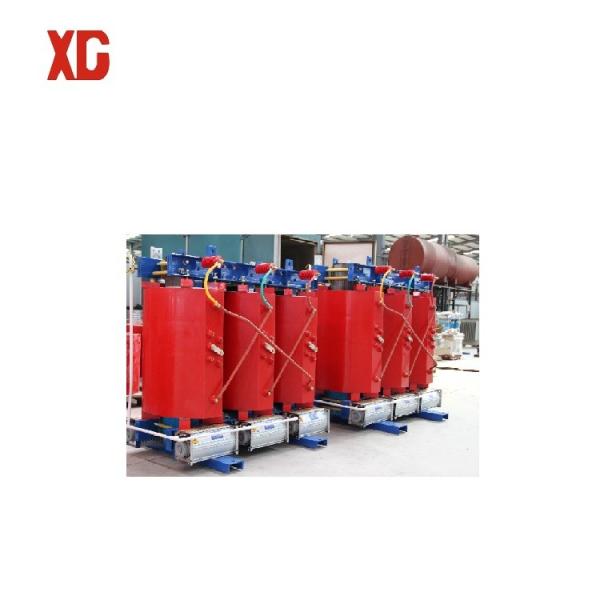

SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
SC(B)9 Epoxy Resin Casting Dry Type Transformer 6 - 10 KV Class
Specifications
Brand Name :
XG
Model Number :
SC(B)9
Certification :
ISO,CCC
Place of Origin :
XIAN,CHINA
MOQ :
1 SET
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2000 SET
Delivery Time :
3-7 DAYS
Packaging Details :
WOODEN CASE
Rated capacity :
Copper / aluminum
Rated voltage :
10kv
Output Voltage :
200v/220/240/380v/400v/415v / 440v
Type :
dry type, cast resin
Phase :
Three
Frequency :
50/60Hz
Usage :
Power
Description

1.SC(B)9 Series Resin Insulated Dry-Type Transformers

(1) The core material is cold rolled grain oriented silicon steel sheet with high magnetic flux, and the thickness is less than 0.3mm.

(2) The structure of low-voltage winding is cylindrical and made of copper foil. High voltage winding adopts multi-layer structure. The design style can improve the mechanical strength and short-circuit resistance.

(3) The cooling system is equipped with a low-noise fan, which can increase the capacity of the transformer by 40% after being adjusted by the temperature controller.

(4) The transformer protection class according to IP20 standard can protect the transformer from any object

(5) The diameter is more than 12mm. In order to meet the needs of customers, the protection level can reach IP23, which can prevent water falling at an angle of ≤ 60 degrees.

(6) No load loss and load loss comply with GB/T 10228-2008 standard, but the no-load loss of SC (B) 10 is lower than 10% of GB/T 10228-2018 standard, and the load loss is lower than 5% of GB/T 1022 standard.

2.Product Description:

With advanced design and manufacture technology, rational structure and advanced formation of material, strict and perfect test technology, dry type transformer with thin insulation of casting resin has the following features:

(1)Hardly inflammable, hardly bursting, causing no pollution.

(2)Little partial discharge

(3)High moisture-proof level.

(4)High mechanical strength and good heat stability.

(5)High insulation level

(6)High capacity of overload because of high capacity of heat dissipation.

(7)Low loss, small volume and light weight

(8)High economic properties

3.Competitive Advantage:
(1)Low loss, low noise

(2)Low partial discharge

(3)High quality, efficiency

(4)Safe use

(5)Power transforme

4.Service conditions:

Altitude: ≤1000m

Ambient temperature: ≤40℃

Waveform of source voltage is approximate to sine wave

Symmetry of multi-phase source voltage: connected voltage of multi-phase transformer should be symmetrical approximately.

Max daily mean air temperature: +30℃

Max annual mean air temperature: +20℃

Min air temperature: -30℃ applicable for indoor transformers

5. Product Parameters
Product Model No. Connection Group Symbol Loss W Impedance Voltage (%) No-load Current (%) Overall Dimensions(mm)

Weight

(KG)
No-load Load L W H
SC10-30/10

Y,yn0

D,yn11

 195 705

4

 2.6 770 550 800 330
SC10-50/10 270 995 2.2 820 600 830 380
SC10-63/10 330 1210 2.2 850 610 850 440
SC10-80/10 370 1380 2.2 890 610 860 510
SC10-100/10 400 1570 2.0 900 610 930 590
SC10-125/10 470 1850 1.8 900 720 980 650
SC10-160/10 545 2130 1.8 980 720 980 780
SC10-200/10 625 2530 1.6 980 720 1050 930
SC10-250/10 720 2760 1.6 1110 900 1120 1040
SC10-315/10 880 3470 1.4 1110 900 1275 1180
SC10-400/10 975 3990 1.4 1110 960 1315 1450
SC10-500/10 1160 4880 1.4 1155 960 1330 1630
SC10-630/10 1345 5870 1.2 1240 960 1310 1900
SC10-630/10 1300 5960

6

 1.2 1290 960 1330 1900
SC10-800/10 1520 6955 1.2 1320 1020 1350 2290
SC10-1000/10 1770 8130 1.1 1360 1020 1455 2700
SC10-1250/10 2090 9690 1.1 1430 1020 1505 3130
SC10-1600/10 2450 11730

8

 1.1 1470 1020 1695 3740
SC10-2000/10 3320 14450 1.0 1580 1080 1830 4150
SC10-2500/10 4000 17170 1.0 1620 1080 1900 4810

6. FAQ
(1)For tender cooperation, it is welcome to discuss the detail in between.
(2)Some type reports are provided accordingly.
(3)Our factory is 250000m2 for production and office.
(4)All our activities are accredited to ISO 14001:2015 and IEC standard.
(5)Technology ensure the quality satisfy international request.
(6)Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.
