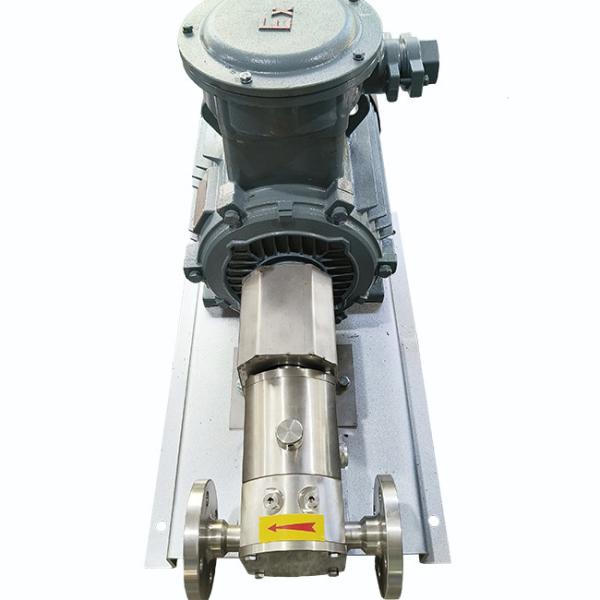

CE/FDA/3A Stainless Steel High Glossy Health Grade Lobe Pump

Product Description:

1. Made of by stainless steel 304 or 316 which conformed to the sanitary standard.

2. Used to transfer high viscosity liquids in various industrial fields:

Foodstuff: molasses, honey, yoghurt , chocolate, tomato sauce, syrup, fruit juice, cooking oil, edible oil, vegetable oil, cheese, protein, ketchup, sesame paste, mashed garlic, peanut butter, chili sauce etc.

Cosmetics: facial cleanser, shampoo, toothpaste, lotions, creams, liquid soap, shower gel, hairspray, etc.

Others: medicine, fertilizer solution, ceramic glaze, paint coating, etc.

3. Pump could be customized according to customers' requirements:

Vane type: single vane, double vane type, three vane type.

Connection mode: clamp, flange, thread, SMS, etc.

Motor type: CVT(Continuously Variable Transmission) motor, variable frequency motor, gear box motor, electromagnetic adjustable-speed motor, etc.

Moveable trolley for small model pumps.

Mechanical sealing water cooling device for high temperature liquids.

Heat preservation jacket for some mediums which needs to be heated.

Re-flow device, hopper, valve, pipe, elbow, sight glass, different caliber direction for different installation designs.

Specifications:

Note: Above flange is regular for each model, besides we also offer various flange connection according to your requirements

1. Tested medium in the table: water.

2. Speed, flow rate, electrical power and pressure will be according to different liquid properties.

3. Port size can be changed as needed.

4. ACCUVON reserves the right to change specifications without prior notification.

8 steps for your guideline to select ACCUVON pump

1. What medium do you need to pump.
2. Product viscosity in pump, line and at rest.
3. Solid content and percentage concentration
4. Specific gravity
5. Capacity required
6. Pumping temperature
7. Discharge pressure or sketch of pipework system
8. Suction pressure or sketch of pipework system

Advantages

• High degree of operational safety due to double-acting mechanical seals

• Steel rotors with screw profile for low pulsation

• Pump is permanently technically tight

• Almost pulsation-free pumping

• Pumping of highly viscous media

• Ease of maintenance with MIP

• Resistant to solids

• High efficiency with pressures of up to 14 bar

• Pump speed can be adapted to the viscosity of the medium

• Short-term dry-run capability

• Self-priming

• Short-term dry-run capability

• Pumping of highly viscous media

• Chemically highly resistant materials

• Small footprint

• Reversible

• Variable speeds

• Changing the rotors in a few minute

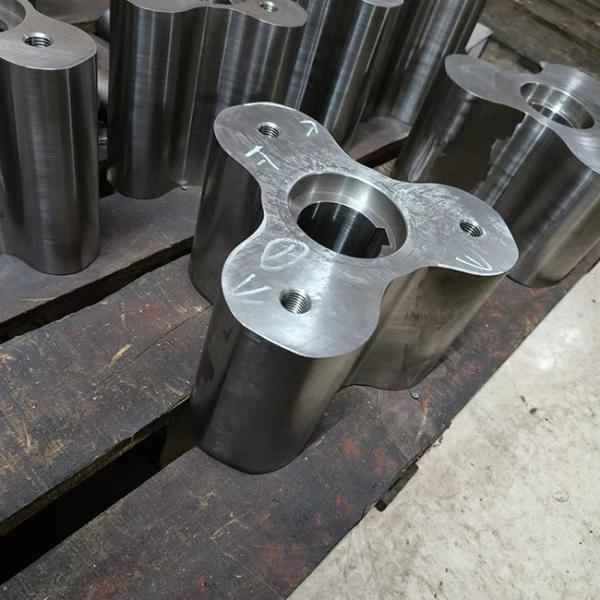

Quality inspection photos
