Large Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump Truck
Large Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump Truck
Large Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump Truck
Large Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump Truck
Specifications
Brand Name :
ACCUVON
Model Number :
AX 350
Certification :
API , IOS , CE, 3A , FDA
Place of Origin :
Guangdong , China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Month
Delivery Time :
8 - 12 work days
Packaging Details :
Export wooden box packaging
Rotor Type :
tri lobe rotor, NBR
Flange Connection :
DN 200
Power :
288 KW
Flow :
30 m³/ h
Speed :
1500 rpm
Drive :
WEICAI diesel engine
Color :
Green
Pressure :
3bar
Description

Large Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump Truck

Product Description:

ACCUVON Rotary Lobe Pumps are self-priming, valve less, positive displacement pumps. With speed-proportional flow, they continuously deliver trouble-free pumping of liquids of various consistencies and multiphase mixtures. They are compact and operate with low shear and low pulsation.They are varied uses in all industrial applications. They are the preferred choice wherever viscous, abrasive media with solid content or shear-sensitive media are to be pumped.

Technical Date:

Description:Designed according to API676 standard, Suitable for conveying high viscosity medium, containing solid particles liquid, high abrasiveness liquid,Shear-sensitive medium, gas-liquid mixture, and fluids with quantitative feeding.
Material:GGG25 Pump housing
Seal Material:SIC/NBR
Flow:1300 m3/h
Max.pressure:1.4Mpa
Speed350 RPM
Rotor Type:Tri lobe rotors
Mechanical seal:Cartridge mechanical seal
Motor power:288KW
Sealing option:Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:220V, 380V(110-480v)
Drive:Diesel engine
connection:Clamp, Thread, weld, Flange
Available standard:DIN, SMS, 3A, RJT, ISO/IDF
Operated:Electric power
Application scope:petrochemical industry, sewage treatment, railway vacuum discharge system, biogas energy, food waste, ship ocean, pulp and paper, food and drinks, light industry etc.



Specifications:

ACCUVONrate of flow
l/rev		flow
(m³/h)		pressure
(Mpa)		speed
rpm		Flange diameter
DN mm		power
Kw
AC250.1960.1-70-1.210-600DN250.75-5.5
AC500.3920.2-140-1.010-600DN501.1-5.5
AC750.5880.3-210-0.610-600DN501.1-5.5
AP801.1250.6-4000-1.810-600DN803-22
AP1001.8751.1-660-1.410-600DN1003-22
AP1202.8641.7-1030-1.010-600DN1003-22
AP1403.7142.2-1330-0.610-600DN1257.5-22
AF1254.5662.7-1640-1.610-600DN12511-55
AF1506.8284-2460-1.210-600DN15011-55
AF2009.4565.5-3400-0.810-600DN20011-55
AX25012.57.5-4870-2.510-650DN25022-315
AX3002515-9750-1.010-650DN30030-315
AX35037.522.5-14630-0.610-650DN35045-315
AX4505030-19500-0.410-650DN45055-315
AX350D7545-29260-0.610-650DN350*290-450
AX450D10060-39000-0.410-650DN450*2110-600


Note: Above flange is regular for each model, besides we also offer various flange connection according to your requirements
1. Tested medium in the table: water.
2. Speed, flow rate, electrical power and pressure will be according to different liquid properties.
3. Port size can be changed as needed.
4. ACCUVON reserves the right to change specifications without prior notification.

Technical advantages

  • Large flow: The maximum flow can reach 3200m3/h (5000m3/under development)
  • Pressure: The maximum pressure can reach 25 bar
  • Self-priming: Vertical can reach 9.5 meters, horizontal can reach more than 30 meters, and liquid filling time is short
  • Positive proportional flow : The flow can be easily adjusted by adjusting the rotational speed of the driver (engine or motor)
  • No blocking: Directly passed solid particles such as plastic bags, rotten cloth, weeds and branches, small stones, etc.

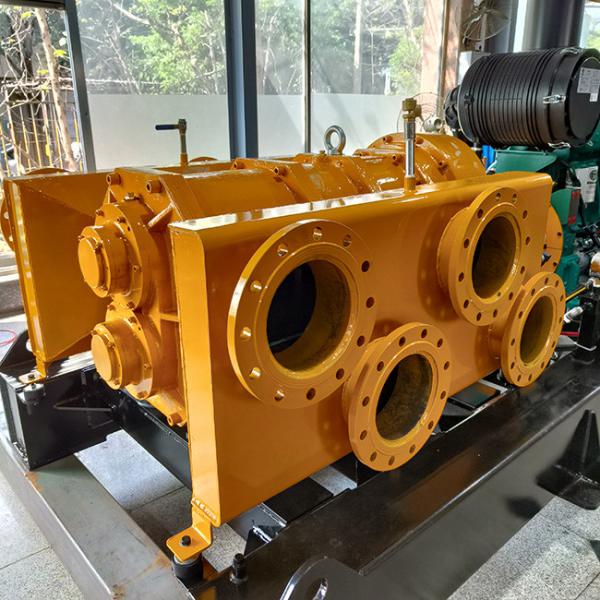

Testing Photo

Large Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump TruckLarge Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump TruckLarge Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump TruckLarge Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump Truck

Large Flow 1300 Cubic Meter Per Hour Lobe Pump Municipal Drainage Pump Truck
