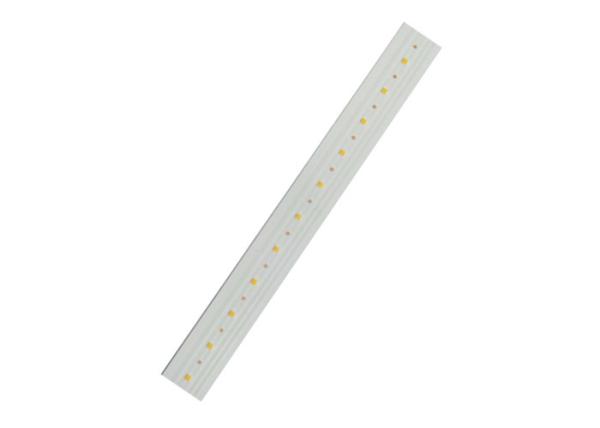

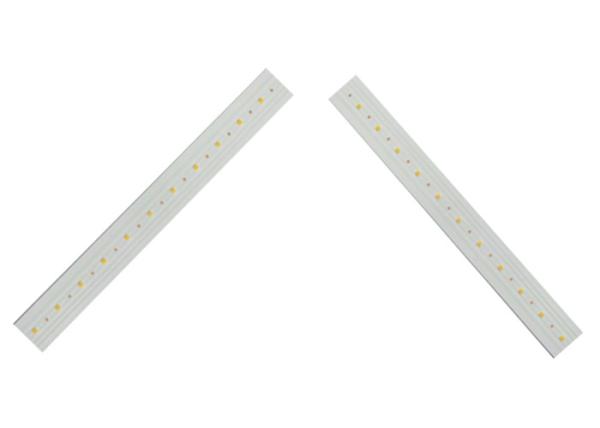

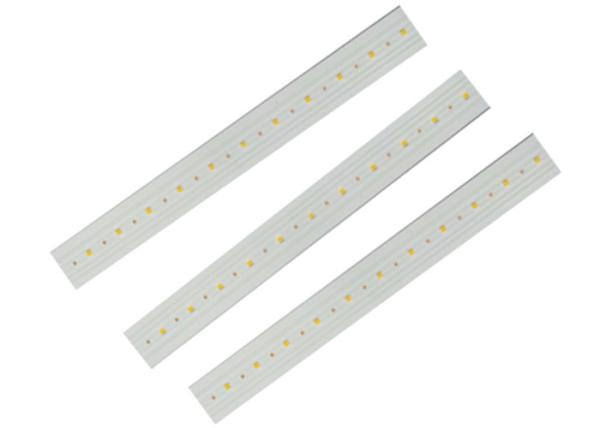

0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
0.2 Thick Soft DC12V Ra70 29W 4500K 120mA Led Strip Module
Specifications
Brand Name :
Lohua
Model Number :
SL082011WF10030
Place of Origin :
China
MOQ :
1,000pcs
Price :
$5-$10/pc
Payment Terms :
T/T
Supply Ability :
200,000pcs
Delivery Time :
5 - 8 work days
Packaging Details :
normal packaging
Specification of substrate(mm) :
1000*7*0.22
CSP package mode :
CSP0820
VF :
3V
IF(mA) :
120
Power(W) :
29W
Luminous efficacy (Lm/W) :
80
Material :
0.2 thick soft
Lifespan(H) :
≥50,000
Description

Led Strip Module 29W Color Temperature(CCT) 3500-4500K Ra>70

Porduct Features:

1. Small in size and there are many valiable colors to choose.
2. Regular size: 5m/coil, easy to divide and carry, wide application.
3. Every 3~6 CSP package can be cut off along the tangent line arbitrarily without damaging other parts.
4. Large angle of illumination.
5. Working Voltage: DC12V/24V, Working environment: －20℃～45℃.

Product parameters:

Item No. Model Specification of substrate(mm) CSP package mode VF IF(mA) Power(W)
F10030 SL082011WF10030 1000 * 7 * 0.22 CSP0820 3V 120 29

Luminous efficacy (Lm/W) Color temperature (k) Color rendering index(Ra) Beam angle Input Voltage(V) Output Voltage/Current Material Lifespan(H)

80

3500-4500

 Ra>70, according to customer needs 150° AC85V ~ 265V

DC24V/1.2A

 0.2 thick soft ≥50,000

Our service:

1. Overall quality control system and professional sales team.

2. Innovative research and development department and intellectual property.

3. We are high-tech compay, enormous potentiality in enterprise strength.

4. economization and environmental protection.

Application Range:
It is widely applied in buildings, bridges, sculpture contour lights and indoor and outdoor light / dark
trough lights.

Company Introduce:

Jiangsu Lohua New Materials Co., LTD., founded in October 2013, located in National High
and New Technology Industrial Development Zone of Nantong, is the first successful
manufacturer of development and production of CSP products and fluorescent ceramic
products in China. The company has always been based on the LED, a new generation of
lighting and laser display technology, providing the overall solution of more high-quality light
emitting materials and light source for the white light. It is a national high-tech enterprise of
research, development, production, and sales of integration with sales team in Jiangsu,
Guangdong, Sichuan Province and other places.
