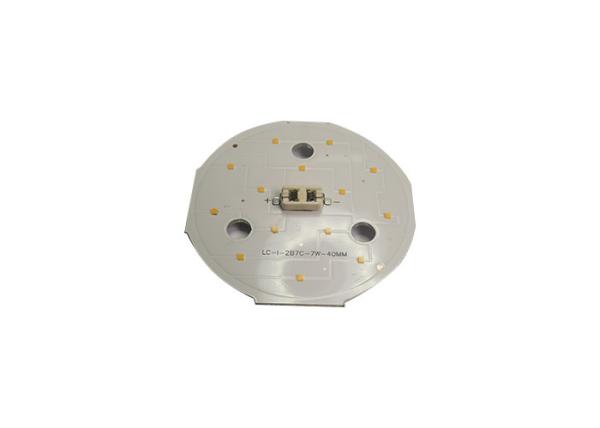

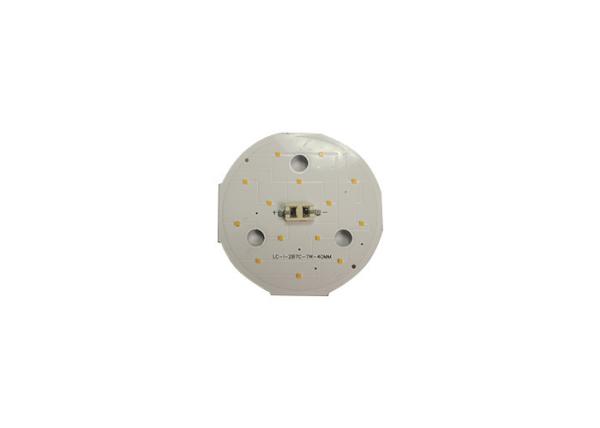

RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
RA: 97 A1 Panel 6W 4000K 530lm 14pcs 2828 Led Lamp Beads
Specifications
Brand Name :
Lohua
Model Number :
LHM-2B7CD040-00740AA
Place of Origin :
China
MOQ :
1,000pcs
Price :
$5-$10/pc
Payment Terms :
T/T
Supply Ability :
200,000 pcs/month
Delivery Time :
5 - 8 work days
Packaging Details :
normal packaging
Lamp Luminous Flux(lm) :
530lm
Color Temperature(CCT) :
4000K
CRI（Ra） :
97
Power :
6W
Series Parallel Relation :
2 parallel 7 Series
Electric Current :
0.3A
Input Voltage(V) :
18~24V
Material :
A1 panel
Description

Led Strip Module 6W Color Temperature(CCT) 4000K RA: 97

Product Features:

1. The RA is 97, close to natural light and can be customized.

2. The CSP lamp beads can be customized, including dividual csp beads, application extensively.

3. Low thermal resistance, long lifetime, small size, high optical density and low energy consumption.

4. Pls preserve the base plate within the temperature 25 degree and humidity of 60%

Technical Parameter:

Optical Parameter Value Panel Parameter Value
Lamp Luminous Flux(lm): 530lm Series Parallel Relation: 2 parallel 7 Series
Color Temperature(CCT): 4000K Electric Current: 0.3A
CRI(Ra>): 97 Input Voltage(V): 18~24V
Power: 6W Thermal Conductivity: >2.0W/M.K
Lamp Luminous Efficiency(lm/w): 901Lm/W Material: A1 panel
Model Number: LHM-2B7CD040-00740A Brand Name: Lohua Light Source
Lamp bead model: 0909030-2828-5X-40AA Application: Various lighting places
Warranty(Years): 2 years Place of Origin: Shenzhen, Guangdong, China
CSP size(mm): 28*28 Name: 7W bulb light csp module
viewing angel(°): 150° LED Light Source: csp lamp bead
Luminous intensity: 530lm QTY of LED: 14pcs
LED Type: 2828 PCB Thickness: 1.0mm

Our Service:

1. Our own lab and factory, with a full quality control system on production.

2. With experienced experts, sales team and after-service team.

2. We have patents in CSP, the quality is convinced.

4. Innovative research and development department and intellectual property manage center.

Application Range:

It is widely applied in shopping malls, office buildings, hotels, exhibition halls, conference rooms, hospitals,windows, household etc.


Company Introduction:


Jiangsu Lohua New Material Co., LTD., founded in October 2013, located in National High and New Technology Industrial Development Zone of Nantong, is the first successful manufacturer of development and production of CSP products and fluorescent ceramic products in China. The company has always been based on the LED, a new generation of lighting and laser display technology, providing the overall solution of more high-quality light emitting materials and light source for the white light. It is a national high-tech enterprise of research, development, production, and sales of integration with sales team in Jiangsu, Guangdong, Sichuan Province and other places.
