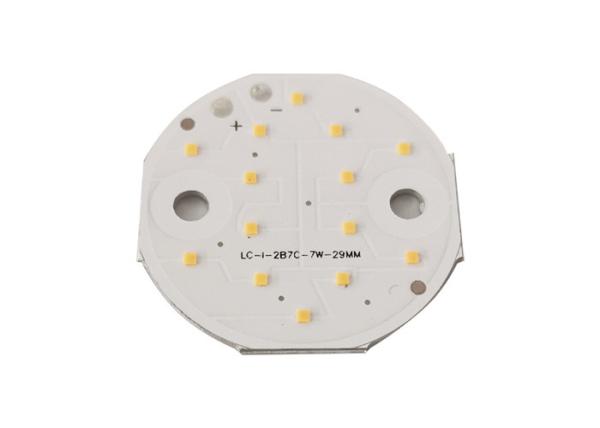

A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
A1 Panel 530lm 4000K 7W RA 97 Led Downlight Lamp Beads
Specifications
Brand Name :
Lohua
Model Number :
LHM-2B7CD029-00740AA
Place of Origin :
China
MOQ :
1,000pcs
Price :
$5-$10/pc
Payment Terms :
T/T
Supply Ability :
200,000 pcs/month
Delivery Time :
5 - 8 work days
Packaging Details :
normal packaging
Lamp Luminous Flux(lm) :
530lm
Color Temperature(CCT) :
4000K
Power :
6W
Lamp Luminous Efficiency(lm/w) :
901Lm/W
Series Parallel Relation :
2 parallel 7 Series
Electric Current :
0.3A
Input Voltage(V) :
18~24V
Material :
A1 panel
Description

Led Lamp Beads Downlight 7W RA: 97 Color Temperature(CCT) 4000K

Product Features:

1. High-quality constant current channel power supply is reliable and has stable performance.

2. Simple appearance design is fully integrated with the human visual identity.

3. Integrated design with high thermal conductivity aviation heat dissipation aluminum material, and surface anodicoxidation treatment.

4. High light effificiency. High Color index. High saturation of LED light source. Energy saving and environmental protection.

Product Parameter:

Optical Parameter Value Panel Parameter Value
Lamp Luminous Flux(lm) 530lm Series Parallel Relation 2 parallel 7 Series
Color Temperature(CCT) 4000K Electric Current 0.3A
CRI(Ra>) 97 Input Voltage(V) 18~24V
Power 6W Thermal Conductivity >2.0W/M.K
Lamp Luminous Efficiency(lm/w) 901Lm/W Material A1 panel
Model Number: LHM-2B7CD029-00740AA Brand Name: Lohua Light Source
Lamp bead model: 1010030-3232-5X-40AA Application: Various lighting places
Warranty(Years): 2 years Place of Origin: Shenzhen, Guangdong, China
CSP size(mm): 32*32 Name: 7W downlight csp
viewing angel(°) 150° LED Light Source: csp lamp bead
Luminous intensity: 530lm QTY of LED: 14pcs
LED Type 3232 PCB Thickness 1.0mm
Power Factor: >0.95 IP Rating: 66

Our Service:

1. A professional sales team and full quality control system.

2. Our own lab and factory with good adaptability.

3. With professional sales team and technical experts.

4. We have patents in CSP, the quality is convinced.

Application Range:

It is widely applied in shopping malls, office buildings, hotels, exhibition halls, conference rooms, hospitals,windows, household etc.


Company Introduction:


Jiangsu Lohua New Material Co., LTD., founded in October 2013, located in National High and New Technology Industrial Development Zone of Nantong, is the first successful manufacturer of development and production of CSP products and fluorescent ceramic products in China. The company has always been based on the LED, a new generation of lighting and laser display technology, providing the overall solution of more high-quality light emitting materials and light source for the white light. It is a national high-tech enterprise of research, development, production, and sales of integration with sales team in Jiangsu, Guangdong, Sichuan Province and other places.
