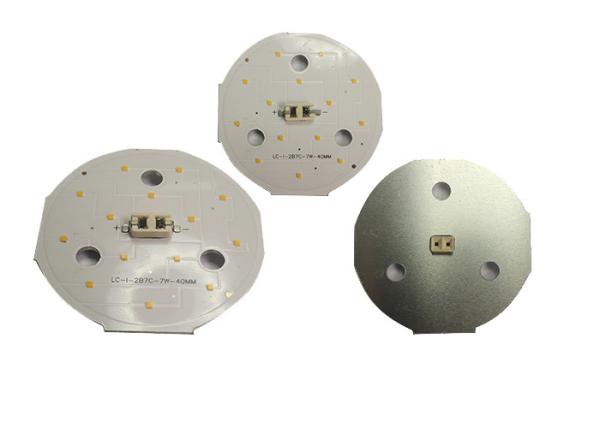

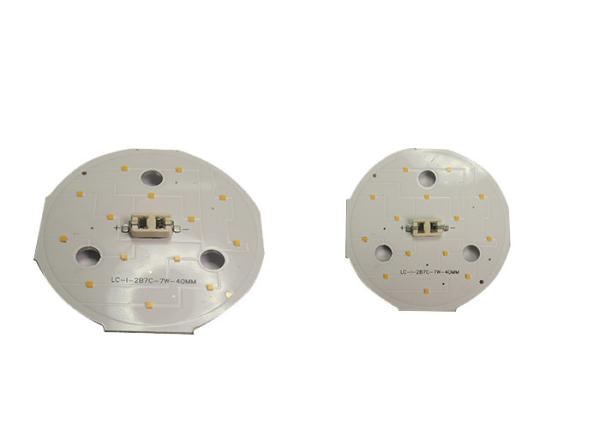

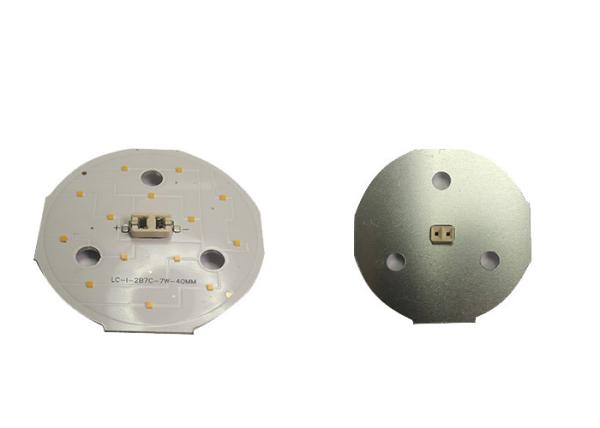

7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
7W RA97 4000K 530lm PCB Led Lighting Modules For Commercial
Specifications
Brand Name :
Lohua
Model Number :
LHM-2B7CD040-00740AA
Place of Origin :
China
MOQ :
1,000pcs
Price :
$5-$10/pc
Payment Terms :
T/T
Supply Ability :
200,000pcs
Delivery Time :
5 - 8 work days
Packaging Details :
normal packaging
Lamp Luminous Flux(lm) :
530lm
Color Temperature(CCT) :
4000K
CRI（Ra） :
97
Lamp Luminous Efficiency(lm/w) :
901Lm/W
Series Parallel Relation :
2 parallel 7 Series
Electric Current :
0.3A
Input Voltage(V) :
18~24V
Thermal Conductivity :
>2.0W/M.K
Description

Led Bulb Module 7W RA: 97 Color Temperature(CCT) 4000K

Product Features:

1. High effificiency, energy saving, long service life.

2. Simple appearance design is fully integrated with the human visual identity.

3. High-quality constant current channel power supply is reliable and has stable performance.

4. Green and environmentally friendly , healthy and eye protection.

Product Parameter:

Optical Parameter Value Panel Parameter Value
Lamp Luminous Flux(lm): 530lm Series Parallel Relation: 2 parallel 7 Series
Color Temperature(CCT): 4000K Electric Current: 0.3A
CRI(Ra>): 97 Input Voltage(V): 18~24V
Power: 6W Thermal Conductivity: >2.0W/M.K
Lamp Luminous Efficiency(lm/w): 901Lm/W Material: A1 panel
Model Number: LHM-2B7CD040-00740A Brand Name: Lohua Light Source
Lamp bead model: 0909030-2828-5X-40AA Application: Various lighting places
Warranty(Years): 2 years Place of Origin: Shenzhen, Guangdong, China
CSP size(mm): 28*28 Name: 7W bulb light csp module
viewing angel(°): 150° LED Light Source: csp lamp bead
Luminous intensity: 530lm QTY of LED: 14pcs
LED Type: 2828 PCB Thickness: 1.0mm


Our Service:

1. Overall quality control system and professional sales team.

2. Innovative research and development department and intellectual property.

3. National high-tech company, enormous potentiality in enterprise strength.

4. We provide 2 years warranty for our consumer for our LED lighting products.

Application Range:

It is widely applied in shopping malls, office buildings, hotels, exhibition halls, conference rooms, hospitals, windows, household etc.

Company Introduce:


Jiangsu Lohua New Materials Co., LTD., founded in October 2013, located in National High
and New Technology Industrial Development Zone of Nantong, is the first successful
manufacturer of development and production of CSP products and fluorescent ceramic
products in China. The company has always been based on the LED, a new generation of
lighting and laser display technology, providing the overall solution of more high-quality light
emitting materials and light source for the white light. It is a national high-tech enterprise of
research, development, production, and sales of integration with sales team in Jiangsu,
Guangdong, Sichuan Province and other places.
