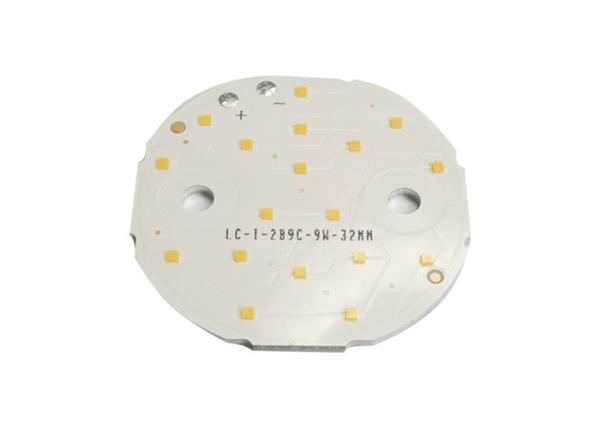

7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
7.38W High CRI Ra 97 18pcs 720lm 3232 Led Lamp Module
Specifications
Brand Name :
Lohua
Model Number :
LHM-2B9CD032-00940AA
Place of Origin :
China
MOQ :
1,000pcs
Price :
$5-$10/pc
Payment Terms :
T/T
Supply Ability :
200,000pcs
Delivery Time :
5 - 8 work days
Packaging Details :
normal packaging
Lamp Luminous Flux(lm) :
720lm
CRI（Ra） :
97
Power :
7.38W
Lamp Luminous Efficiency(lm/w) :
901lm/W
Series Parallel Relation :
2 parallel 9 Series
Electric Current :
0.3A
Input Voltage(V) :
24~30V
Material :
A1 panel
Description

Led Lamp Module Downlight 9W RA: 97 Color Temperature(CCT) 4000K

Product Features:

1. Without gold in process, low malfunction rate, high Brightness, high light efficiency and high quality.

2. Simple appearance design is fully integrated with the human visual identity.

3. The CSP lamp bead be customized in size and color, application conveniently.

4. Integrated design with high thermal conductivity aviation heat dissipation aluminum material, and surface anodic oxidation treatment.

Product Parameter:

Optical Parameter Value Panel Parameter Value
Lamp Luminous Flux(lm) 720lm Series Parallel Relation 2 parallel 9 Series
Color Temperature(CCT) 4000K Electric Current 0.3A
CRI(Ra>) 97 Input Voltage(V) 24V~30V
Power 7.38W Thermal Conductivity >2.0W/M.K
Lamp Luminous Efficiency(lm/w) 901Lm/W Material A1 panel
Model Number: LHM-2B9CD032-00940AA Brand Name: Lohua Light Source
Lamp bead model: 1010030-3232-5X-40AA Application: Various lighting places
Warranty(Years): 2 years Place of Origin: Shenzhen, Guangdong, China
CSP size(mm): 32*32 Name: 9W downlight csp
viewing angel(°) 150° LED Light Source: csp lamp bead
Luminous intensity: 530lm QTY of LED: 18pcs
LED Type 3232 PCB Thickness 1.0mm

Our Service:

1. With strict quality standard for the products' function, the appearance and performance.

2. We have patents in CSP lamp bead, the quality is guaranteed.

3. National high-tech company, great potential enterprise operation.

4. Overall quality control system and professional sales team.

Application Range:

It is widely applied in offices, reading rooms, factories, shopping malls, schools, hospitals, hotels, families,
shops, restaurants, exhibition halls, art halls, museums etc.

Company Introduce:

Jiangsu Lohua New Materials Co., LTD., founded in October 2013, located in National High
and New Technology Industrial Development Zone of Nantong, is the first successful
manufacturer of development and production of CSP products and fluorescent ceramic
products in China. The company has always been based on the LED, a new generation of
lighting and laser display technology, providing the overall solution of more high-quality light
emitting materials and light source for the white light. It is a national high-tech enterprise of
research, development, production, and sales of integration with sales team in Jiangsu,
Guangdong, Sichuan Province and other places.
