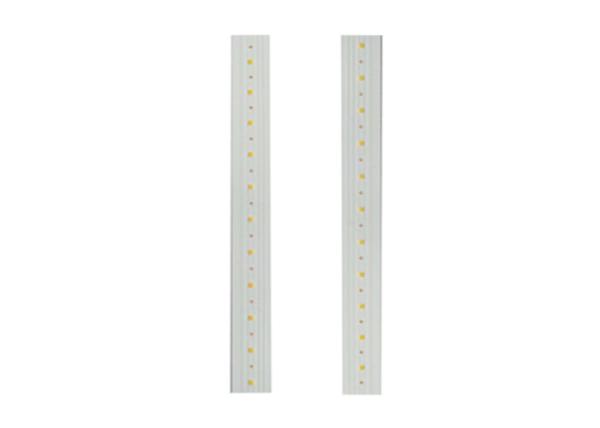

5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
Specifications
Brand Name :
Lohua
Model Number :
SL082011WF10030
Place of Origin :
China
MOQ :
1,000pcs
Price :
$5-$10/pc
Payment Terms :
T/T
Delivery Time :
5 - 8 work days
Packaging Details :
normal packaging
Specification of substrate(mm) :
1000*7*0.22
CSP package mode :
CSP0820
VF :
3V
IF(mA) :
120
Power(W) :
11W
Luminous efficacy (Lm/W) :
80
Material :
0.2 thick soft
Lifespan(H) :
≥50,000
Description

Led Strip Module 11W Color Temperature(CCT) 2700-6500K Ra>70

Product Features:

1. Regular size: 5m/coil. Large angle of illumination.
2. Small in size and available in a variety of colors.
3. Every 3~6 CSP package can be cut off along the tangent line arbitrarily without damaging other parts.
4. Working Voltage: DC12V/24V, Working environment: －20℃～45℃.
5. The LED lamp bead is packaged in Lohua's patented product of high-brightness, high-effificiency CSP lamp bead package.

Product parameters:

Item No. Model Specification of substrate(mm) CSP package mode VF IF(mA) Power(W)
F10030 SL082011WF10030 1000 * 7 * 0.22 CSP0820 3V 120 11

Luminous efficacy (Lm/W) Color temperature (k) Color rendering index(Ra) Beam angle Input Voltage(V) Output Voltage/Current Material Lifespan(H)

80

3500-4500

 Ra>70, according to customer needs 150° AC85V ~ 265V

DC12V/600mA

 0.2 thick soft ≥50,000

Our service:
1. Overall quality control system and experienced technical expert.

2. We provide 2 years warranty for our consumer for our LED lighting products.

3. Innovative research and development department and intellectual property manage center.

4. Protection of your sales area, ideas of design and all your private information.

Application Range:
It is extensively applied in buildings, bridges, sculpture contour lights and indoor and outdoor light / dark
trough lights.

Company Introduce:

Jiangsu Lohua New Materials Co., LTD., founded in October 2013, located in National High
and New Technology Industrial Development Zone of Nantong, is the first successful
manufacturer of development and production of CSP products and fluorescent ceramic
products in China. The company has always been based on the LED, a new generation of
lighting and laser display technology, providing the overall solution of more high-quality light
emitting materials and light source for the white light. It is a national high-tech enterprise of
research, development, production, and sales of integration with sales team in Jiangsu,
Guangdong, Sichuan Province and other places.

5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module

5m 120mA 11W 600mA DC12V 4500K Ra70  LED Light Bar Module
