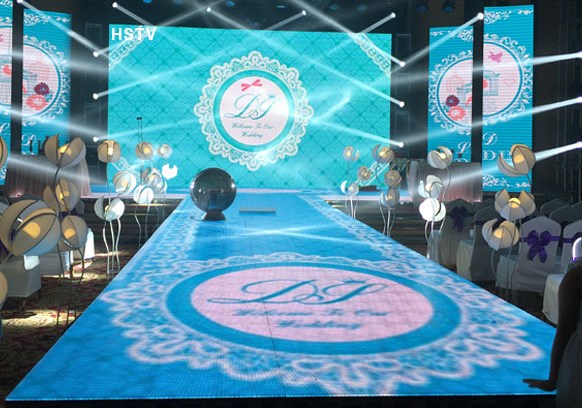

Wedding Led Screen Stage Display IP65 Outdoor Wedding Decoration P3.91 LED Screen Dance Floor
Product Introduction :
Wedding led screen stage display IP65 outdoor P3.91 has high definition and high resolution
with wonderful visual performance ; ensures the spectators far from the screen can still
enjoy what is shown and guarantee superior performance even with small screen size .
Technical parameters:
P3.91 Rental Stage Video LED Display Screen For Outdoor | ||||||||
1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle | |||
2 | Red LED | SMD1921 | 540-702mcd | 620-625nm | 160º/160º | |||
3 | Green LED | SMD1921 | 1200-1300mcd | 519-522nm | 160º/160º | |||
4 | Blue LED | SMD1921 | 200-260mcd | 462-465nm | 160º/160º | |||
Module Specification | ||||||||
1 | Pixel Pitch | 3.91mm | ||||||
2 | Pixel Configuration | 1R1G1B | ||||||
3 | Module Resolution | 64 x 64 pixels | ||||||
4 | Module Pixles | 4096 pixels | ||||||
5 | Module Size | 250mm X 250mm | ||||||
Cabinet Specification | ||||||||
1 | Cabinet Size(W*H*T) | 500mm x 1000mm x 80mm | ||||||
2 | Cabinet Resolution | 128 x 256 pixels | ||||||
3 | Module Quanity | 2 * 4 = 8pcs | ||||||
4 | Cabinet Pixels | 32768 pixels | ||||||
5 | Pixel Density | 65410 pixels/m² | ||||||
6 | Cabinet Material | Die Casting Aluminum Cabinet for rental purpose | ||||||
7 | Cabinet Weight | 10 kg per cabinet | ||||||
8 | Packaging | Fly case | ||||||
9 | Fly Case Size | 105*65*65CM ( one case for six cabinets ) / 85kg | ||||||
Whole Screen Specification | ||||||||
1 | Screen Brightness | ≥4500cd/m² | ||||||
2 | Driving Method | 1/16 scan | ||||||
3 | Max. Power Consumption | 600W/m2 | ||||||
4 | Average Power Consumption | 180W/m2 | ||||||
5 | Gray Level | 65536 levels(16 bit ) | ||||||
6 | Display Color | 16M | ||||||
7 | Frame Frequency | ≥60Hz | ||||||
8 | Refresh Frequency | ≥1920Hz | ||||||
9 | Uninterrupted Working Hours | ≥72 hours | ||||||
10 | Screen Life-span | ≥100,000 hours | ||||||
11 | MTBF | ≥5,000 hours | ||||||
12 | Discrete Blind Spot Rate | <1/10000 | ||||||
13 | Continuous Blind Spot Rate | None | ||||||
14 | Blind Spot Rate | <1/10000 | ||||||
15 | Protective Scale | For indoor use only | ||||||
16 | Screen Plainness | <±1mm | ||||||
17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius | ||||||
Humidity:10%~90% RH | ||||||||
19 | Control Mode | Synchronous display with control PC by DVI | ||||||
20 | Control System | Linsn, Novastar or as you required. | ||||||
21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
22 | Interface | Standard Ethernet | ||||||
23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
24 | Certificate | CE, ROHS, FCC , CCC, ISO9001, ISO14001 |
Your questions :
Q1 : LED display models are generally expressed in PX , such as P2 , P3 , P4 ..... P8 , P10 , what does this mean?
A : P1.25 , P2 , P3 , P4 ..... P8 , P10 means that the pixel pitch is 1.25mm , 2mm , 3mm , 4mm ....10mm ,
which determines resolution of a display . Pixel pitch is smaller , led display resolution is higher .
Q2 : What pixel pitch should I choose on my display ?
A : Using the PX screen , it is determined mainly by the viewing distance , the size of the
display screen , the desired effect and the customer budget .
Q3 : To order a display , What kind of information do I have to offer you ?
A : You should provide width / height of the display , the main use , the viewing distance ,
the scene photos , special requirements , then I can provide you with a detailed list of quotations .
Q4 : How to install ?
A : Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram ,
free remote debugging . We can also send our engineers to the site to guide the installation if needed .
Q5 : What about the lead time ?
A : Orders less than 50 square meter display , lead time is 15 working days .
Q6 : Can I order a sample ?
A : Yes , your sample orders are welcome , after checking our quality and service ,
we are confident that you will come back for your future orders .
