Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots
Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots
Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots
Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots
Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots
Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots
Specifications
Brand Name :
Longda LED
Model Number :
P1.86
Certification :
CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
ShenZhen
MOQ :
1 Sqm
Price :
Usd899 ~ Usd1399 / Sqm ( price is negotiable )
Payment Terms :
L / C , T / T , Western Union , MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
Flight case packing or Plywood case packing
Model Size :
320 * 160mm
Module resolution :
172 x 86 dots
Cabinet size :
640 x 480mm
Led Lamp :
KINGLIGHT 1515
Scan :
43S
Life span :
100000h
Description

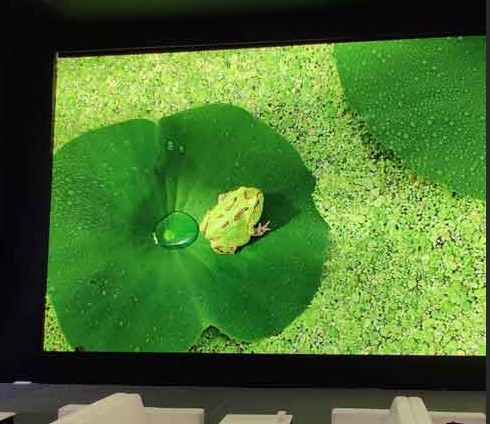

Small Pixel Led Display 640 X 480mm HD P1.86 Led Video Wall On Cinema

Functions and Advantages :

1 . High refresh rate : With NOVA STAR control system , no scanning line when photographed ;
2 . High gray level : 256 RGB each , display 16.7M colors , vivid and perfect video effect ;
3 . High resolution : The most apparent features of the new generation of LED display ;
4 . Good color uniformity : With brand Lamp Nationstar and high refresh MBI5124 IC .

Specifications :

Indoor P1.86 LED Screen

Part I Technicial Parameters

Led Module Specification

NO.

Item

Specification

1

Pixel Pitch

1.86mm

2

Module Resolution

W172×H86dots

3

Module Size

320*160mm

4

Led Packing

1515

5

IP Rate

43

6

IC

6363

2065

7

LED composition

1R1G1B

Cabinet Specification

1

Cabinet Size

640*480mm

2

Module Qty

W2X H3 =6PCS

3

Physical Resolution

W344×H258dots

4

Power Consumption(MAX.)

200 W/m2

5

Power Consumption(AVE.)

120W/m2

140W/m2

6

Cabinet Material

Die-casting Aluminum

7

Physical Density

288906 dots/m2

8

Net Weight

7.5Kg

8Kg

Screen Specification

1

Brightness

≥600cd/m2

≥670cd/m2

2

Colors

16.7 trillion

3

Brightness Control

Software 256 level adjustable

4

Gray Level

14

5

View Distance

1.9-15m

6

Refresh Rate

≥1920~3840Hz

≥3840Hz

7

Drive Mode

1/43s

1/57s

8

Life Span

100,000h

9

MTBF

1000h

10

Control mode

Synchronous control or Asynchronous control

11

Frame Frequency

≥60Hz

12

Certification

CE/ROHS/FCC/CCC/ISO9001/ISO14001

13

Operation Temperature

-20℃ ～ +45℃

14

Operation Humidity

10%～95%

Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots

Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots

FAQ :

Question 1: How can I trust your LONGDA LED factory ?

Answer : Yes, when you talk with us now , we are here . We do led since 2009 , it is over 12 years .

In the past 8 years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it .
Welcome to try our LED sample quality .
We do have100% confidence in our LED product .

Question 2: If I need led very urgently , how fast can you finish the goods ?

Answer:How fast you want ?Three days ? One week ? Definite shipping date ?
We produce LED everyday . We have some led modules in stock .
Put the most urgent and important order at the first place .
You are important to us . Surely to establish first-time good relationship .
We do must finish it at FAST ROCKET TIME.

Question 3: Is it easy to install this led display ?

Answer : If you are new to LED , we will help you to know led from ZERO to Professional .
We have installation manual book and professional engineering team to guide you .
To help you better understand LED is to make us get your earlier trust .
If you knew LED before , we can learn from each other.
We could be Future Shaking-hands Partners .
Our engineering team remote help is ready for you 24-hours .
