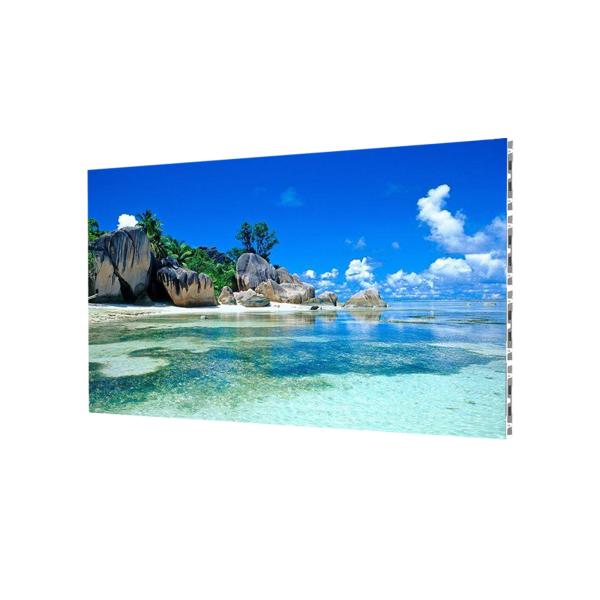

SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC
Specifications
Brand Name :
LONGDA LED
Model Number :
P1.875
Certification :
CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
SHENZHEN
MOQ :
1 Sqm
Price :
Usd1099 ~ Usd2699 / Sqm ( price is negotiable )
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
Flight case packing or Plywood case packing
Pixel Pitch :
1.25mm
Led chip :
1212
Display function :
Video, animation, graphics
Refresh Rate :
1920-3840hz
Warranty :
2 Years
Color :
1R1G1B, Full color, RGB
Description

Small Pixle Led Display Module Size 16:9 With 600x337.5 Die-Casting Aluminum Cabinet

Advantages

1.High strength Aluminum alloy material

The integral die-casting aluminum molding workmanship has provided with excellent flatness of the cabinet

2.Front serviceable led screen for better experience

The front serviceable ultra HD led screen cabinet has fully described the strength of its light weight,

met the needs of small space or where the needs of the cabinet thickness is needed,

enhanced the vision of the space as well as its visionary effect. it allows for easy maintenance ,saving time and labor site.

3. Ultra wide viewing angle , different experience
Both 160 from horizontal and vertical fro the viewing angle. Seeing from five directions,it would be still
the natural and clear image in an led screen.

Specifications

OPTICAL Pixel Pitch mm 1.875mm
LED No. Per Pixel pcs/pixel 1
Brightness(Adjustment) cd/m² 600~800
LED Encapsulation - SMD1212
Module Resolution(W*H) pixels 160*90
Cabinet Resolution(W*H) dots 320 *180
Pixel Density dots/sqm 286,225
Viewing Angle(H/V) degree H160/V160
Color Depth/Number bit 16bit
Grey Scale - 65,536
ELECTRICAL Frame Frequency Hz/s 50/60
Refresh Rate Hz ≥3840
Contrast Ratio - 5000:1
Max Power Consumption W/m² 800
Ave Power Consumption W/m² 250
Working Voltage AC AC90~264V
Drive Voltage DC 15V
Color Temperature - 3200-9300(adjustable)
Working Temperature ºC -20ºC - 60ºC
Humidity - 10%-85%RH
Driving Method - 1/30scan
MECHANICAL Frame Material - Die-casting aluminum
Module Size mm 300 *168.75
Net Weight kg/pcs 7.8
Weight Per Tile lbs 17.21
Cabinet Size mm 600*337.5*55
IP Rating - IP30
Lifetime hours 100,000
Service Access - front
Application - Indoor

SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC

SMD1212 Narrow Pixel Pitch Led Display Advertising 1R1G1B Led Pixel Wall RoHs FCC

Our Service

1.The price depends on the quantity.We can offer you the best competitive price with the same even better quality.

2.Good after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality + Reasonable Price + Responsible After Service = Successful & Win
5. Help you design OEM & ODM or any your customized lightings and put into production.
6. We are offered for your unique design and some our current models.
7.Your sales area, ideas of design and all your private information will be well protected.
