Specifications
Brand Name :
Longer Leader
Model Number :
LDCEA
Certification :
ISO9001, CQC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100~150 sets / Month
Delivery Time :
30 days
Packaging Details :
Export standard paper carton or wooden case
Product name :
Evaporator
Warranty :
1 year
Heating Capacity(kW) :
optical
Brand name :
Longer leader
Video :
Provided
After-sales Service Provided :
Online support
Type :
cooling and heating
Description

Air Conditioning Multi-System Evaporator Heat Exchanger Coil Evaporator

Overview
Flexible non standard custom design and made, strong R&D team for air cooler products with high quality cleaning and high effciency.
Quick Model Selection for Suface Cooler Evaporator

Cooper series: copper series tube with two diameter, Φ15.88mm*(0.75-1.5), Φ12.7mm*(0.7-1.0), thickness is 0.38, and the thickness of the sheet is 0.115.

Copper tube dia. Hole spacing Row spacing Cover material Pitch

Φ15.88mm

 38.1mm 33mm Stainless steel foil/aluminum foil/copper/hydrophilic foil 2.0~5.2mm

Φ12.7mm

 31.75mm 27.5mm Aluminum foil/copper/hydrophilic foil 1.8~3.5mm

Stainless steel series: stainless steel series tube with two diameter, Φ15.88mm*(0.75-1.5), Φ12.7mm*(0.7-1.0), thickness is 0.65~1.5, and the thickness of the sheet is 0.115.

Stainless steel tube dia. Hole spacing Row spacing Cover material Pitch
Φ15.88mm 38.1mm 33mm Stainless steel foil/aluminum foil/copper/hydrophilic foil 2.0~5.2mm
Φ12.7mm 31.75mm 27.5mm Aluminum foil/copper/hydrophilic foil 1.8~3.5mm

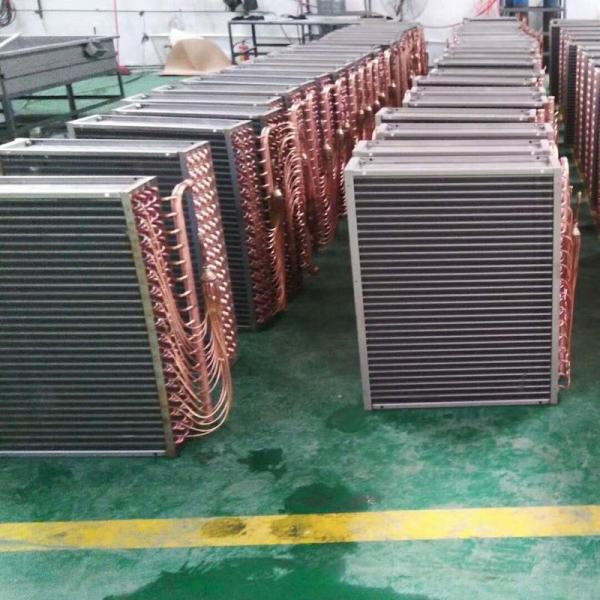

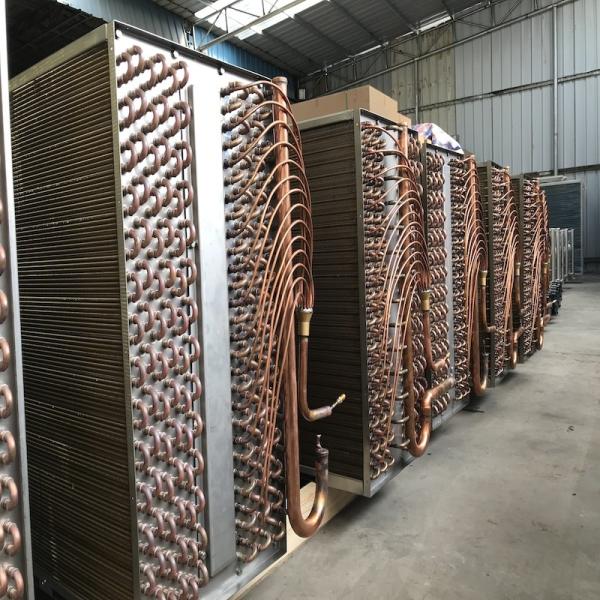

Evaporator Show

Longer Leader air handling unit (AHU) air flow range is from 1,000m3/h to 300,000m3/h. Available functional sections includes fresh and retuen air mixing section, cooling and heating coil section, filter, electric heating, humidifying, heat recovery, secondary air-return, fan and air diffuser section etc..

Air Conditioning Multi System Evaporator Heat Exchanger Coil EvaporatorAir Conditioning Multi System Evaporator Heat Exchanger Coil EvaporatorAir Conditioning Multi System Evaporator Heat Exchanger Coil EvaporatorAir Conditioning Multi System Evaporator Heat Exchanger Coil Evaporator

Longer Leader Factory Show

Air Conditioning Multi System Evaporator Heat Exchanger Coil Evaporator

Air Conditioning Multi System Evaporator Heat Exchanger Coil EvaporatorAir Conditioning Multi System Evaporator Heat Exchanger Coil EvaporatorAir Conditioning Multi System Evaporator Heat Exchanger Coil Evaporator

Application

Laborory, Data center, Workshop, Hospital, Pharmaceutical, Railway station, Subway, Airport,

Office, Hotel,Supermarket,Airport, Factory,Villa .

Longer Leader Advantages

Variable speed drive (VSD) technology, explosion proof and energy saving.
