X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
Specifications
Place of Origin :
China
Brand Name :
Logermay
Model Number :
LGM-1016
Power Source :
Electric
Warranty :
2 years
After-sale Service :
Free spare parts
Material :
Metal, Plastic, Steel
Shelf Life :
2 years
Quality Certification :
ce
Instrument classification :
Class I
Safety standard :
None
Place of Origin: :
Jiangsu, China
Power Source: :
Electric
Product name: :
Portable digital xray machine
Properties: :
Medical X-ray Equipments & Accessories
X ray tube: :
Focus:0.6/1.5mm
Certificate: :
CE ISO
Nominal power: :
100kV,40mA,0.1s,4kW
Frequency: :
≥40kHz
mA adjusting range: :
36mA~70mA
mAs adjusting range: :
1mAs-200mAs,shifted adjustment
Packaging Details :
WOODEN CASE
Port :
shanghai port
Supply Ability :
1000 Set/Sets per Month
Price :
$4,560.00 - $4,800.00/Sets
Description
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
Product Description

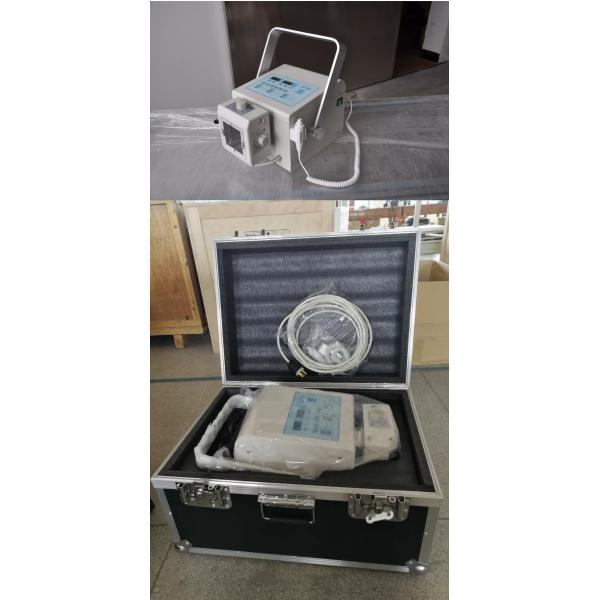

X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
Collimator
a） Power: dc 5V，2.5A
b） Photoelectric positioning timing 30 seconds, automatic shutdown

X-ray Tube
a） Top voltage：125kV
b） Focus：Largest：1.8mm
c） Anode heat capacity：40kJ；
d） Anode heat capacity：Small focus: 1.27kW；Large focus:5.3kW
Machine frame
a)Up and down range:1350mm
b)Highest≥1800㎜
c)Lowest≤600㎜
d)Mechanical brake, brake force≥100N
Flat panel detector and workstation
(pls check other user manual)

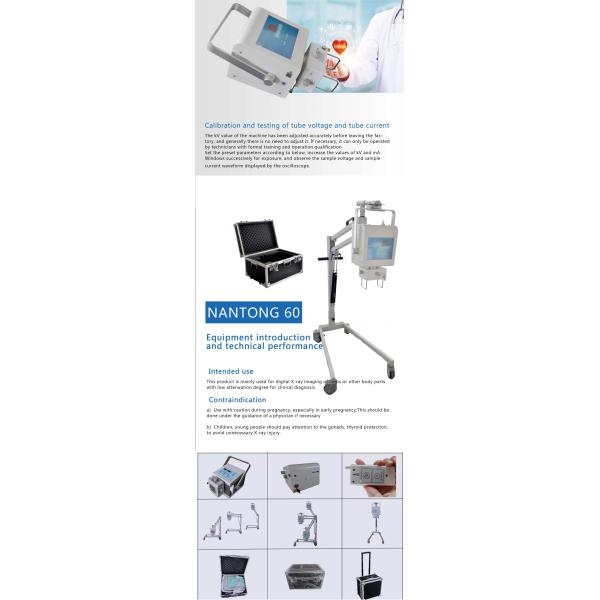

Equipment introduction and technical performance
Intended use
This product is mainly used for digital X-ray imaging of limbs or other body parts with low attenuation degree for clinical
diagnosis.

Contraindication
a) Use with caution during pregnancy, especially in early pregnancy;This should be done under the guidance of a physician if necessary
b) Children, young people should pay attention to the gonads, thyroid protection, to avoid unnecessary X-ray injury.

Equipment composition and working principle
Equipment composition

X-ray generator、collimator、flat panel detector、laptop、machine frame.
1 Power requirements
a) Power voltage：220V±22V；
b) Phase number: single-phase three wires (Fire wire;Null wire;safety grounding wire)
c) Power frequency：50Hz±1Hz；
d) Power inner resistance：less than 0.5Ω；
e) Power capacity≥6kVA
2 Working character
Working character: Intermittent load and run continuously
3 Input power：≤6kVA。
4 Maximum output power
P= 100kV×50mA = 5kW
5 Nominal power 100kV，50mA，0.1s，5kW
6 Adjusting range of tube voltage and tube current
a) Photography tube voltage：40kV ～ 110kV；
b) Photography tube current：20mA ～ 100mA；
7 Range of current time product: 0.2mAs ～200mAs
loading time：10ms ～ 4000ms；
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
Specification
Model
Nantong 60
Input power
Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;
Power capacity: ≥5kVA; Inner resistance≤0.5Ω
Maximum output power
P =4kW
Nominal power
100kV,40mA,0.1s,4kW
Frequency
≥40kHz
KV adjusting range
40kV~110kV, step of continuous adjustment is 1 kV
mA adjusting range
36mA~70mA
mAs adjusting range
1mAs-200mAs,shifted adjustment
S adjusting range
0.04s~3.2s
X ray tube
Focus:0.6/1.5mm;Anode heating capacity:76kHU
Digital detector
Limited resolution:3.6lp/mm; A/D conversion:14bit
Anatomy program
24 kinds of memory choices
Size
290×260×230 mm
Weight
18.8kg
Accessories
Standard: the switch, cables.7

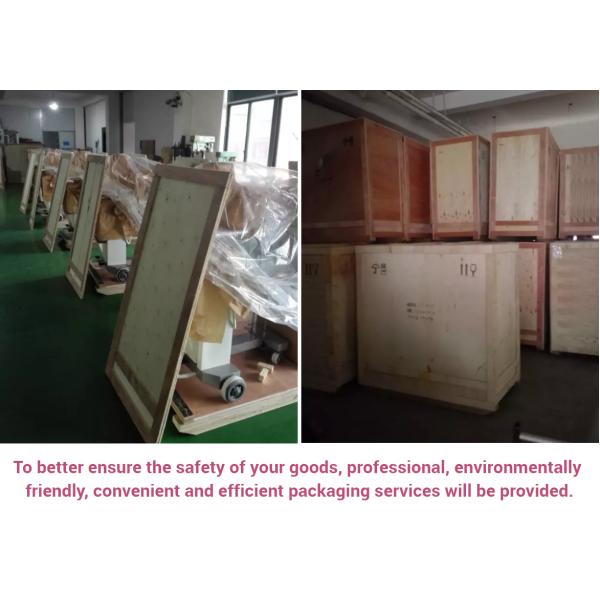

Packing & Delivery
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
Company Profile
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
X-ray machine digital baggage scanner Digital portable high frequency x-ray machine
