Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Longermay
Model Number :
LGM-2221
Power Source :
Electric
Warranty :
2 years
After-sale Service :
Online technical support
Material :
Metal, Steel, Aluminum Alloy
Shelf Life :
2 years
Quality Certification :
ce
Instrument classification :
Class II
Safety standard :
None
Product name :
Small bone multi-function power tools
Type :
Awl, Bone drill and saw
Properties :
Orthopedic Surgical Instruments
Color :
silver
OEM :
Yes
Input voltage :
110-240V 50-60HZ
Weight :
About 0.8 kg
Feature :
suitable for use, convenient
Packaging Details :
WOODEN CASE
Port :
shanghai port
Supply Ability :
1000 Set/Sets per Month
Price :
$500.00 - $800.00/Sets
Description
Product Description
Micro Surgical Instruments Surgery Set Small Bone Multi-Function Drill Saw for Veterinary veterinary saw
Micro Surgical Instruments Surgery Set Small Bone Multi-function Drill Saw For Veterinary Hand And Foot Surgery,Orthopedic
Our electric bone surgery power system, mainly used in orthopedic trauma surgery, artificial joint replacement surgery and hand and foot surgery, neurosurgery and other fields. The product has obtained the second-class medical device registration certificate issued by the State Food and Drug Administration and the CE ,ISO13485 certification.

Notes:
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.
3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized ,it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
easy to be attrite,we suggest each blade only use for 1 surgery.
Details Images

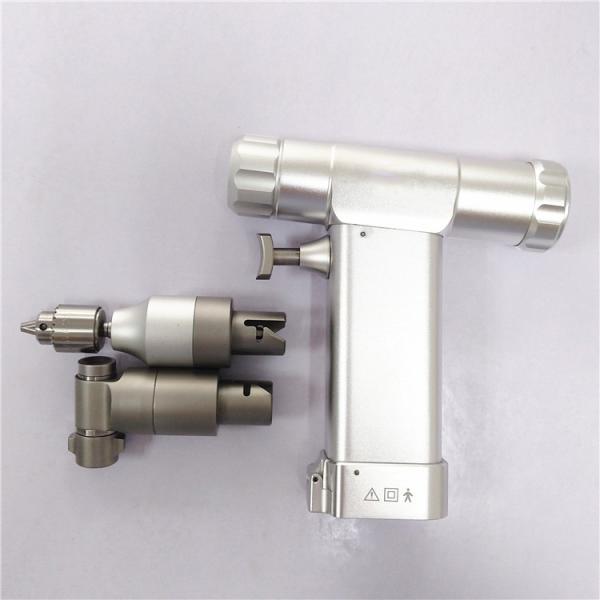

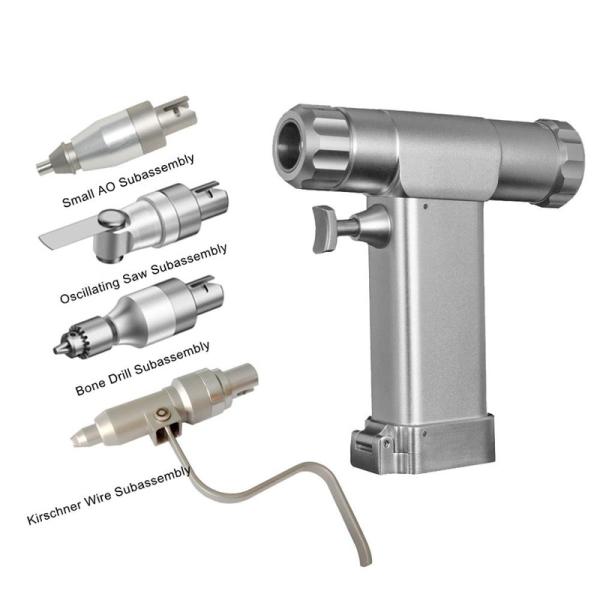

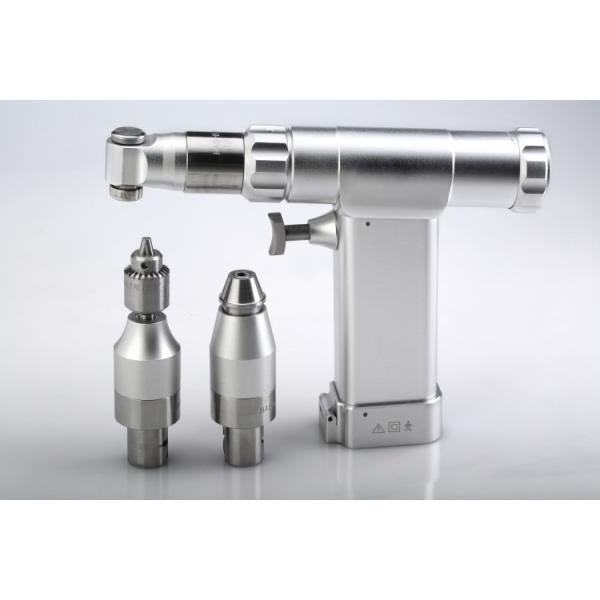

Micro Surgical Instruments Surgery Set Small Bone Multi-function Drill Saw For Veterinary Hand And Foot Surgery,Orthopedic
Micro Surgical Instruments Surgery Set Small Bone Multi-function Drill Saw For Veterinary Hand And Foot Surgery,Orthopedic
Micro Surgical Instruments Surgery Set Small Bone Multi-function Drill Saw For Veterinary Hand And Foot Surgery,Orthopedic
Micro Surgical Instruments Surgery Set Small Bone Multi-function Drill Saw For Veterinary Hand And Foot Surgery,Orthopedic
Micro Surgical Instruments Surgery Set Small Bone Multi-function Drill Saw For Veterinary Hand And Foot Surgery,Orthopedic
Micro Surgical Instruments Surgery Set Small Bone Multi-function Drill Saw For Veterinary Hand And Foot Surgery,Orthopedic

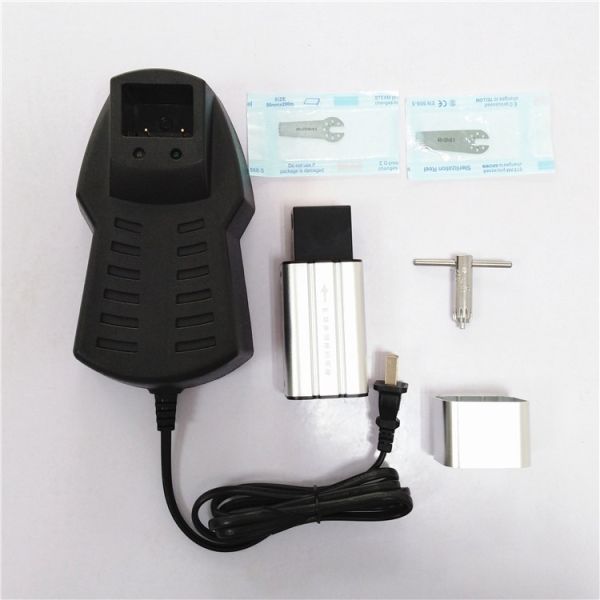

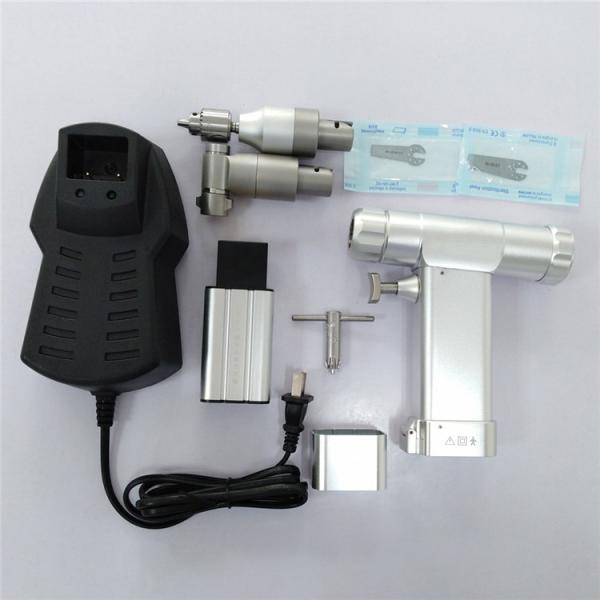

Configuration
Accessory list
Quantity
Note
Handpiece
1 PC
Standard
Battery
2 PCS
Standard

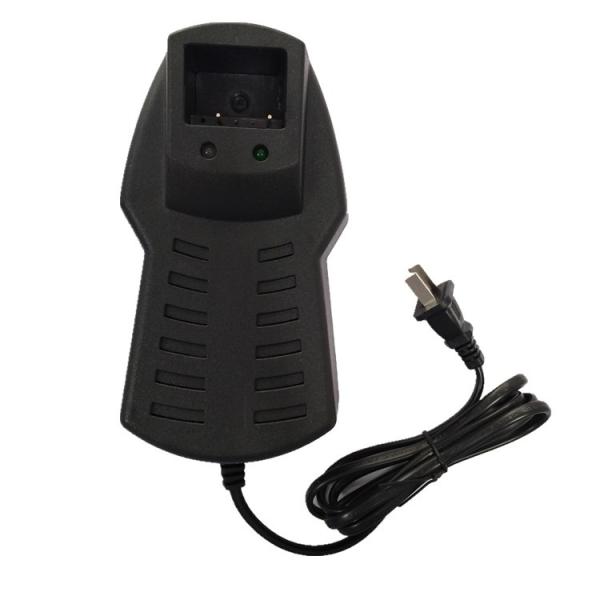

Charger
1 PC
Standard
Drill chuck
1 PC
Standard
Oscillating Saw
1 PC
Standard
Blade
2 PCS
Standard
Sterilizing channel
1 PC
Standard
Aluminum alloy case
1 PC
Optional
Specification
No
Item
Value
No
Item
Value
1
Speed
0-1200rpm
6
Radial circle run-out
≤0.1mm
2
Torque
2.9N.m
7
Axial movement
≤0.5mm
3
No-load Noise
≤45dB
8
Chuck gripper diameter
≤4 mm
4
Operation(V) voltage
7.2V
9
Oscillations
0-16000 cpm
5
Sterilization temperature
155℃
10
Battery capacity
1400mAh
