High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Longermay
Model Number :
LGM-2205
Power Source :
Electric
Warranty :
2 years
After-sale Service :
Online technical support
Material :
Metal, Plastic, Aluminum Alloy
Shelf Life :
2 years
Quality Certification :
ce
Instrument classification :
Class II
Safety standard :
None
Product name :
Dual function canulate drill
Type :
Awl, Bone drill
Weight :
About 1.85kg
Feature :
dual function, no-limit speeding
Color :
Black,silver
Application :
Trauma Operation, Orthopedic
Usage :
Medical Orthopedic Surgical
Packaging Details :
WOODEN CASE
Port :
shanghai port
Supply Ability :
1000 Set/Sets per Month
Price :
$300.00 - $500.00/Sets
Description
Product Description
High end surgical drill kit battery operated orthopedic electric bone drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
Our electric bone surgery power system, mainly used in orthopedic trauma surgery, artificial joint replacement surgery and hand and foot surgery, neurosurgery and other fields. The product has obtained the second-class medical device registration certificate issued by the State Food and Drug Administration and the CE ,ISO13485 certification.

Notes
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.
3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized ,it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
easy to be attrite,we suggest each blade only use for 1 surgery.
Details Images
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill
High End Surgical Drill Kit Battery Operated Orthopedic Electric Bone Drill

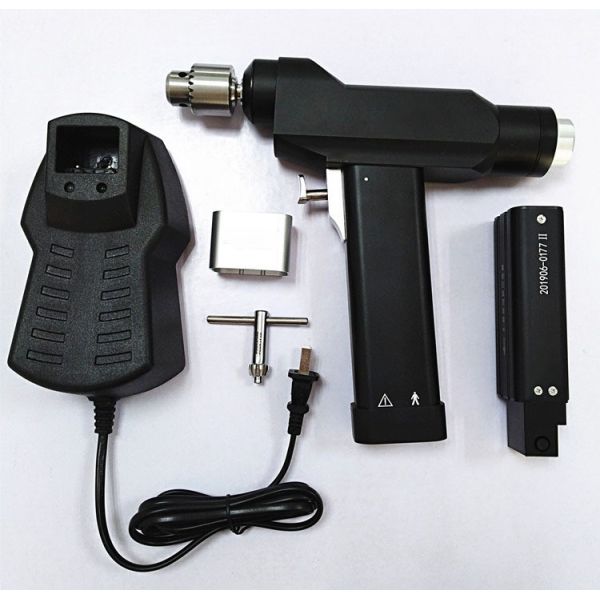

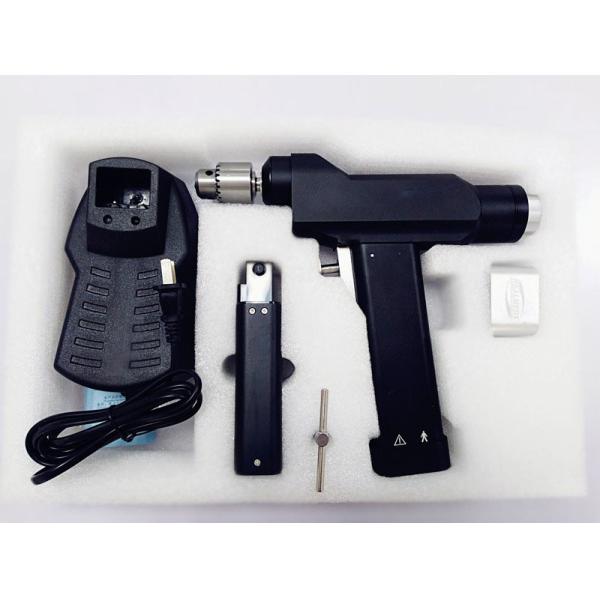

Configuration

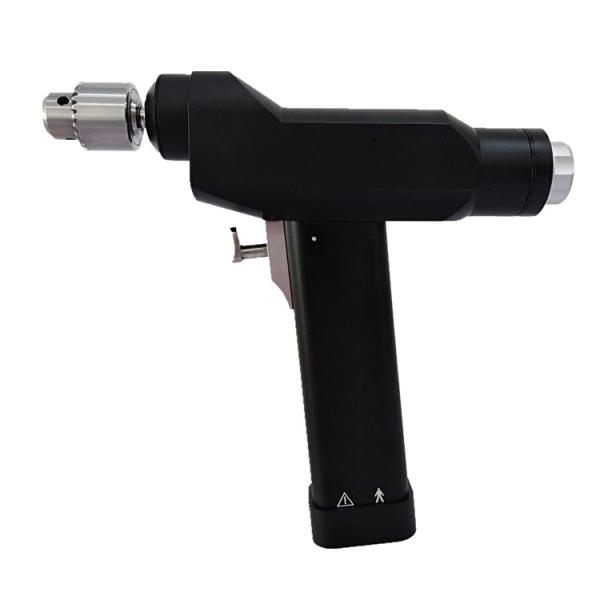

Handpiece
1 PC

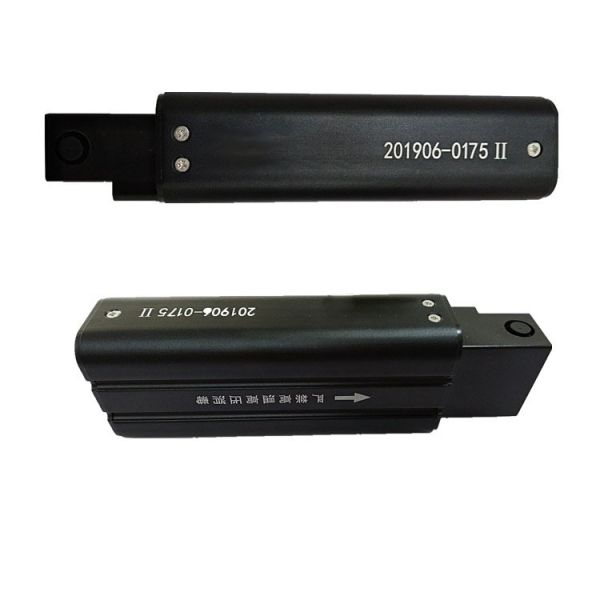

Battery
2 PCS

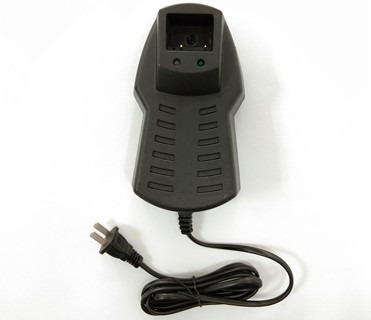

Charger
1 PC

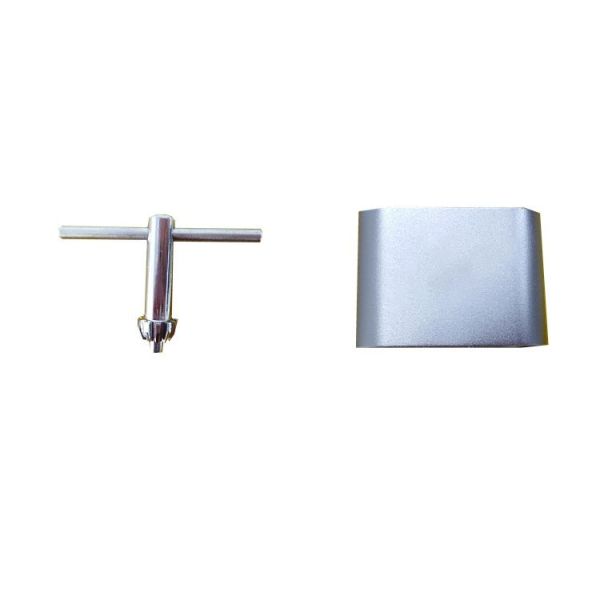

Drill chuck
1 PC
Sterilizing channel
1 PC
Aluminum alloy case
1 PC
Specification
Item
Value
Item
Value
Speed
0-800rpm
Radial circle run-out
≤0.1mm
Torque
3N.m
Axial movement
≤0.5mm
Noise
≤75dB
Battery capacity
1600mAh
Operation(V) voltage
14.4V
Biggest drill bit diameter
8mm
Sterilization temperature
135℃
Diameter of Cannulation
4.5mm
