Single Arm Medical Endoscope Pendant
Single Arm Medical Endoscope Pendant
Single Arm Medical Endoscope Pendant
Single Arm Medical Endoscope Pendant
Single Arm Medical Endoscope Pendant
Single Arm Medical Endoscope Pendant
Specifications
Place of Origin :
China
Brand Name :
Longermay
Model Number :
LGM-02
Power Source :
Electric
Warranty :
2 years
After-sale Service :
Online technical support
Material :
Metal
Shelf Life :
2 years
Quality Certification :
CE/ISO
Instrument classification :
Class II
Safety standard :
GB/T18830-2009
Power Source: :
Electric
Warranty: :
2 years
After-sale Service: :
Online technical support
Material: :
Acrylic, metal, Steel
Shelf Life: :
2 years
Quality Certification: :
ce
single layer tray Max load: :
30kg
Safety standard: :
None
PLDT swing arm RADIUS: :
1000mm (optional 600-1000mm)
rotating brake type: :
compressed air damper lock
Packaging Details :
WOODEN CASE
Port :
shanghai port
Supply Ability :
1000 Set/Sets per Month
Price :
$1,780.00 - $1,900.00/Sets
Description
Single Arm Medical Endoscope Pendant
Product Description

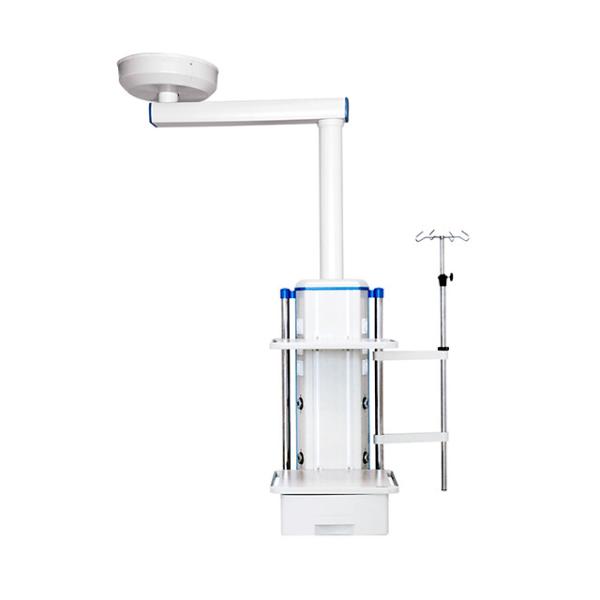

Single arm medical endoscope pendant
Single Arm Medical Endoscope Pendant
Detailed Technical Parameter
1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on
2. is available in single and double arm configurations .Each joint has a rotation range up to ≤350 degree.
3. ceiling mounted and wall mounted type.
4. pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
5. one arm,can rotation, rotation angle≤350 degree.
6. high-strength aluminium alloy,wear-well reduce your cost
7. pendant color blue ,red and so on
8.customization is available.
9.German / British /America/Japanese/ French /Chinese standard gas outlet optional.
10.can horizontal rotation,cannot lift vertical.
Specification
Material
used high-strength aluminum alloy ,modular design ,surface electrostatic powder painting,prevent corrosive ,easy to clean
Brake way
damping friction brake,to make sure without drifting and easy to stop,insure safe
rotary arm length
1000mm(standard configuration)
rotary radius
≥650mm
Head service
column ,standard height 800mm
loading
≥180kg
shelf loading
≥60kg
degrees rotation
≤350 º
Standard Configuration
Model
EX-50E Single Arm
Shelf
2 pcs
Drawer
1 pcs
I.V Pole
1 pcs
Extension arm
1 pcs
Pendant Type
Surgical Pendant
Anesthesia Pendant
Endoscopy Pendant
Gas outlets
O2*1,Vac*1,Air*1
O2*1,Vac*1,Air*1
N2O*1,AGSS*1
O2*1,Vac*1,Air*1
CO2*1
Electrical socket
6pcs (220V 10 A)
Other Configuration optional
RJ 45
Quantity is according to hospital need
Video Socket
Quantity is according to hospital need
Grounding socket
Quantity is according to hospital need
Monitor bracket
Quantity is according to hospital need

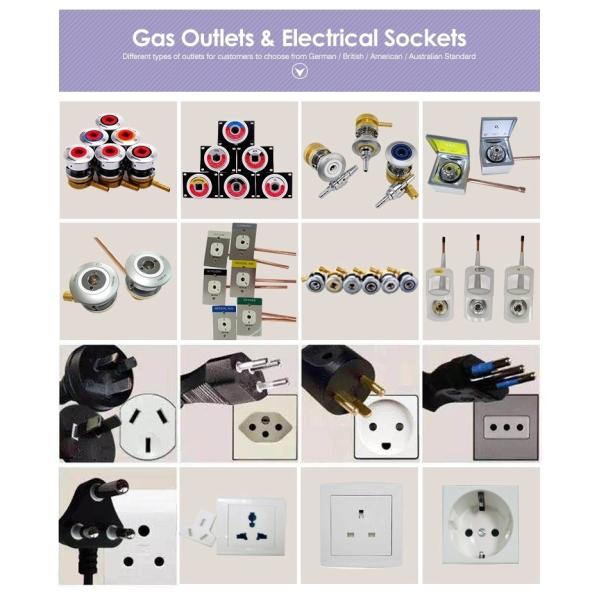

Electrical socket and gas outlets u can choose different standards,quantity is according to hospital need
Details Images
Single Arm Medical Endoscope Pendant
Single Arm Medical Endoscope Pendant
Single Arm Medical Endoscope Pendant
Packing & Delivery
Single Arm Medical Endoscope Pendant

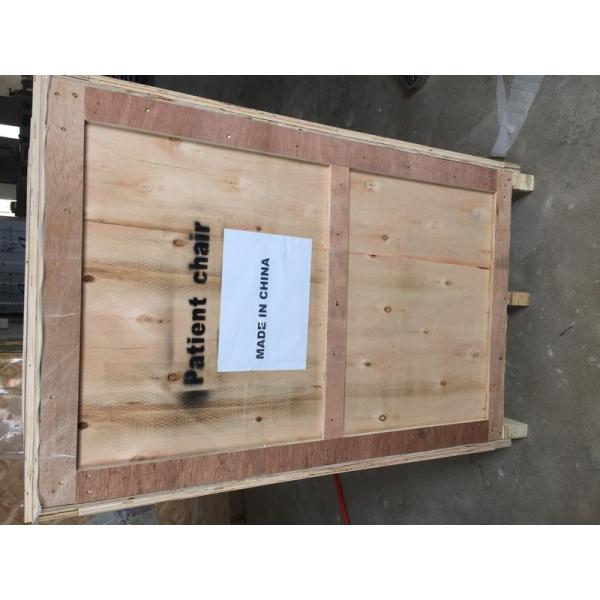

High strength wooden case with clasp, easy to disassemble, more environmental protection
Single Arm Medical Endoscope Pendant

Title goes here.

Vacuum packing, stronger protection
High strength wooden case with clasp, easy to disassemble, more environmental protection
