Specifications
Place of Origin :
China
Brand Name :
Longermay
Model Number :
LGM-0879
Properties :
Diagnosis & Injection
Type :
Pathological Analysis Equipments
Certificate: :
CE ISO
Product name: :
ECG machine
Application: :
Medical Field
Sampling rate: :
1000 samples/Sec/Channel
touch screen: :
800*480, 7inch TFT
Dimension: :
315mm(L)*215mm(W)*92mm(H)
Weight: :
3.2Kg
ECG acquisition: :
12-lead
Material :
Plastic, Steel
Packaging Details :
WOODEN CASE
Port :
shanghai port
Supply Ability :
1000 Set/Sets per Month
Price :
$800.00 - $880.00/Sets
Description
Hospital Digital 12 Channel Ecg Machine Electrocardiograph Ecg Prices
Product Description

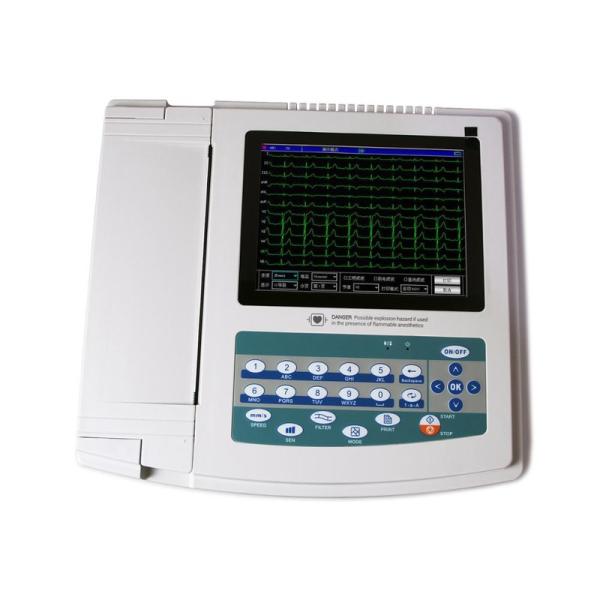

Hospital Digital 12 Channel ECG Machine Electrocardiograph ECG Prices
Hospital Digital 12 Channel Ecg Machine Electrocardiograph Ecg Prices
What are the features of our 12 channel ECG machine?
It is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database
management.

Technical data:

Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA
Calibration voltage: 1mV
Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: ≤15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Safety classification: class I, type CF and defibrillation-proof applied part
Recording mode: thermal printing system
Paper size: 210mm(W)×20m(L)
Sampling frequency: 1000Hz
EMG interference filter: 25Hz/35Hz (-3dB)
Power frequency filter: AC 50Hz/60Hz(-20dB)
Paper speed: Auto: 25, 50mm/s, ±5%
Rhythm: 25, 50mm/s, ±5%
Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.
Manual record: set record according to record format, manually switching leads.
Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Power supply: AC: 100V~240V(50/60Hz)
DC:14.8V/3500mAh rechargeable lithium battery
Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
Waterproof degree: IPX0
Working mode: continuous working

What will you get?

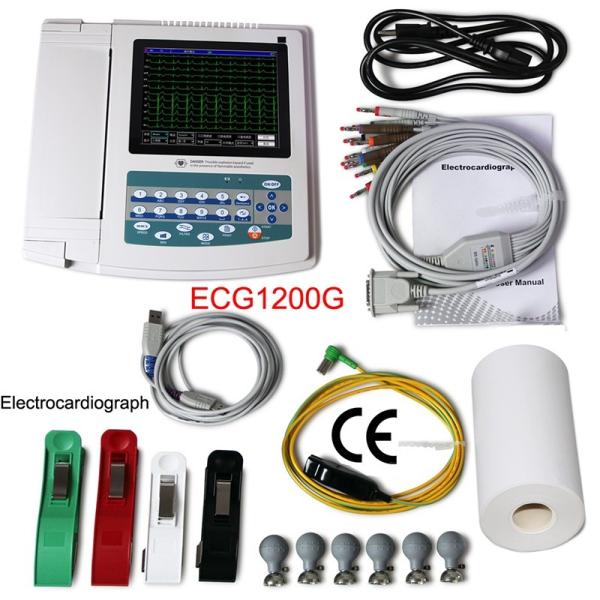

Accessories: Standard:

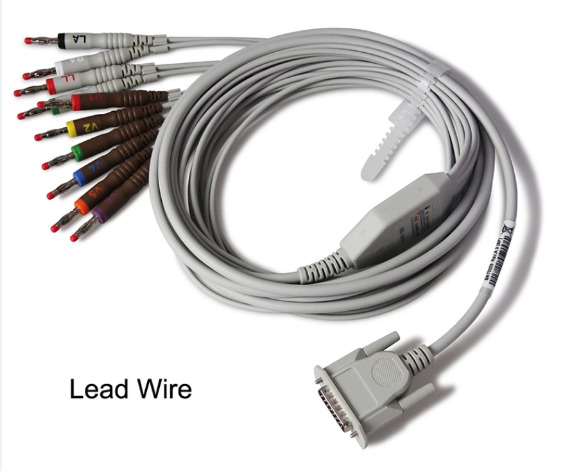

A lead cable

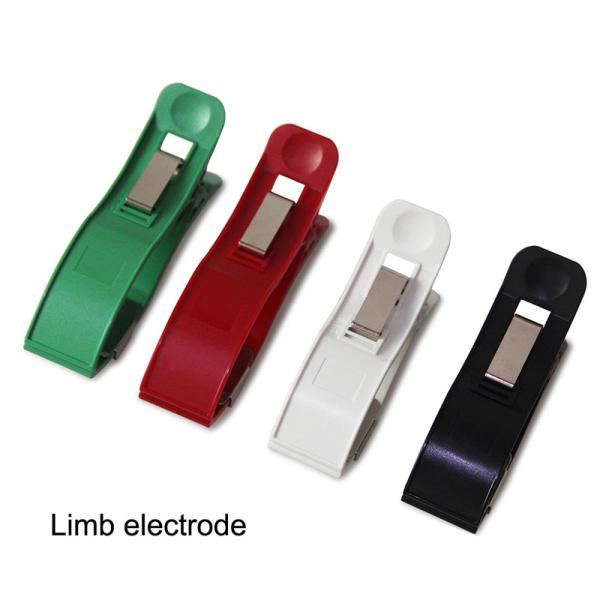

A limb electrode
A chest electrode
A thermal recording paper

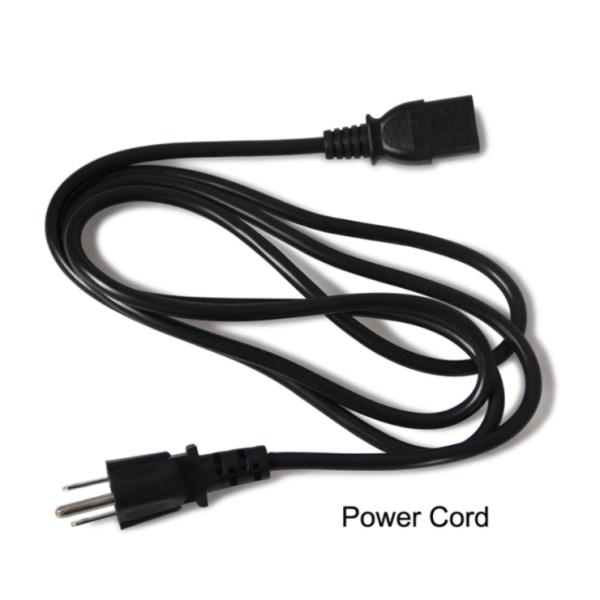

A power cord An earth wire
A user manual
Optional:
ECG-Sync software+USB cable
ECG electrode
Bag
Conductive paste
USB cable 3G card
Wi-Fi card
Remote Operation Guide
Specification
Place of Origin:Jiangsu, China
Power Source:Electricity
Warranty:2 years
After-sale Service:Online technical support
Material:Plastic, Steel
Shelf Life:2 years
Quality Certification:ce
Instrument classification:Class I
Safety standard:None
Type:Pathological Analysis Equipments
Certificate:CE ISO
Product name:ECG machine
Application:Medical Field
Sampling rate:1000 samples/Sec/Channel
touch screen:800*480, 7inch TFT
Dimension:315mm(L)*215mm(W)*92mm(H)
Weight:3.2Kg
ECG acquisition:12-lead

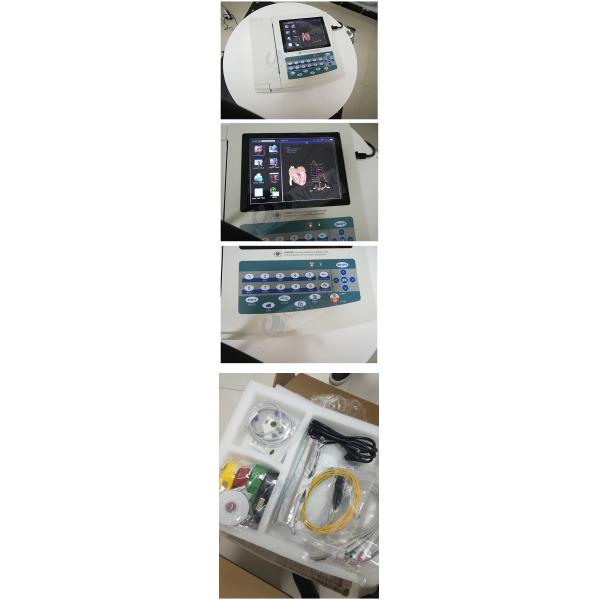

Details Images
