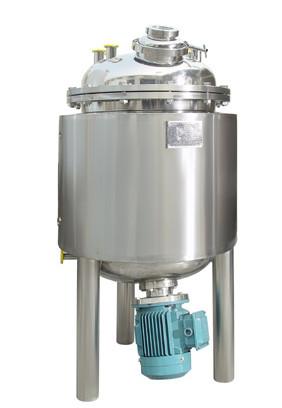

Magnetic stirring batch tank
Magnetic stirring batch tank
Specifications
Place of Origin :
China
Brand Name :
LM
Certification :
CE,ISO9001
Model Number :
JMB-4000
MOQ :
1set
Price :
Depend on the situation
Packaging Details :
wooden case
Delivery Time :
35days after received the payment by T/T
Payment Terms :
T/T
Supply Ability :
100sets per month
Drug machine :
pharmaceutical machine
Description

Magnetic stirring batch tank
Configuration specification(Model specifications:50L-30000L)
Structure:Up and down Butterfly head have Jacket and Thermal insulation.
jacket form:Standard jacket,Honeycomb jacket,Coil jacket.
Thermal insulation material:Polyurethane foam,Rock wool,Perlite.
Tank material:All imported or domestic materials, materials for 316L and 304.
Surface treatment:The inner surface of mechanical polishing, electrolytic polishing, surface roughness Ra≤0.28μm-0.45μm,The outer surface can be polished, brushed matte processing.
Material thickness:The pressing force standard container and Pressure Vessel Standards
Mixed form:The lower magnetic stirring
Driving device:Can use DC, AC, explosion-proof
Temperature and pressure:According to the requirements of customers design
Tank accessories:Choice of motor reducer(domestic and imports), fast mounting sanitary manhole, 360 degree rotary washer, asepsis respirator, quick thermometer (digital temperature instrument), fast mounting diaphragm pressure gauge (pressure sensor), liquid level meter (glass tube liquid level, pressure plate type level meter, digital display liquid level gauge, digital differential pressure level meter and weighing system). Integrated optic mirror lights, speed, temperature and liquid level can according to customer demand for automatic control.
Working conditions:flammable, explosive, easy leakage, the sealing requirements of high production
Welding the isolation sleeve instead of the mechanical seal, the external magnetic field is used to drive the internal magnetic stirring head, prevent leakage, easy to clean, no dead angle, material less cases can stir, Speed can variable frequency control.
