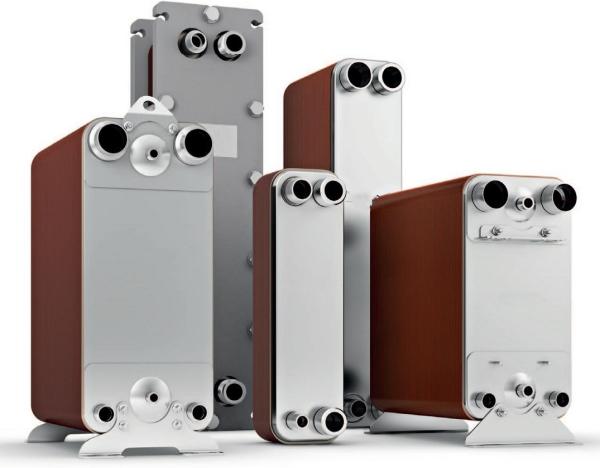

Name: Stainless Steel AISI 316 Plates Copper Brazed Plate Heat Exchanger Oil Cooler
Brand: Asifahe
Price: 1 USD

MachineU > China Products > Machinery > Refrigeration & Heat Exchange Equipment > Heat Exchanger

Stainless Steel AISI 316 Plates Copper Brazed Plate Heat Exchanger Oil Cooler

Specifications

Brand Name :

Asifahe

Model Number :

M6/M10/M15/M20/T8

Certification :

CE,ISO9001

Place of Origin :

Hefei,Anhui Province,China

MOQ :

1set

Price :

Depend on the situation

Payment Terms :

T/T, Western Union, MoneyGram

Supply Ability :

1000sets per month

Delivery Time :

35days after received the payment by T/T

Packaging Details :

plywood case or as requirements

Plate Material :

SS304/SS316/SS316L/Titanium/ALLOY C276

Maximum Working Pressure :

40bar

Liquid Flow Rate :

Max 50 M3/h

Applicable Industries :

Manufacturing Plant, Food & Beverage Factory

Description

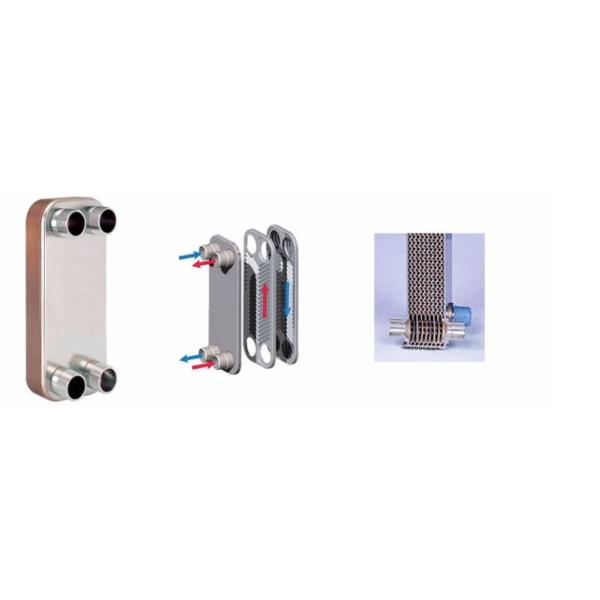

Welded plate heat exchanger is composed of a lot of stainless steel plates and front and rear covers, it is separated copper sheet (or nickel) with high purity and brazed in high temperature furnace. In order to achieve the best heat transfer effect, All corrugated plates will be combined with velocity heat transfer plate with high, middle and low level according to the clients' requirements. It has a compact structure without gasket and outer frame to operate in the condition of high temperature and high pressure.

Stainless Steel AISI 316 Plates Copper Brazed Plate Heat Exchanger Oil Cooler

Features:

• Easy to install

• Compact structure

• Gasket free

• Easy cleaning

Applications:

• Pulp and Paper

• Food and Beverages

• Chemicals

• Water and Waste treatment

• Biotech and Pharmaceutical

• Energy and Utilities

Feature:

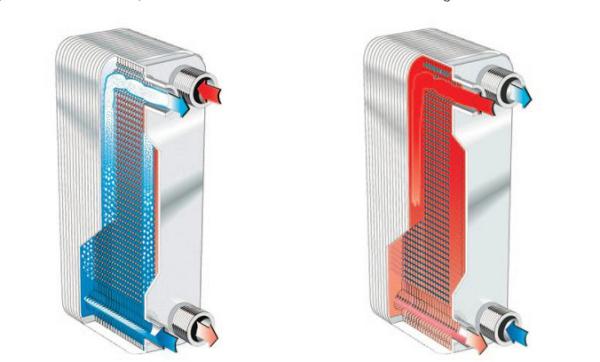

Brazing plate heat exchanger is a kind of corrugated welding plate specially designed to improve the heat transfer coefficient to reduce potential pollution. The whole machine is composed of corrugated channel plate, they combine to a complex soldering heat exchanger channel to distribute cool and heat medium. The cool and heat medium is divided into the both sides of corrugated plate, the two mediums will be as close as possible but do not mix. The heat will be transmitted from one medium to another medium. when they flow side by side.

Stainless Steel AISI 316 Plates Copper Brazed Plate Heat Exchanger Oil Cooler

Model of Copper Brazed Plate Heat Exchanger	Height (mm)	Width (mm)	Thickness (mm)	Vertical Pitch (mm)	Horizontal Pitch (mm)	Weight (kg)	Heat Transfer Area (m2)	Max. Flow (m3/h)	Pessure Level (bar)
PLQ014	208	78	2.30N+9	170	40	0.4+0.04*N	0.014*(N-2)	4	30/45
PLQ020	317	78	2.30N+9	280	42	1.0+0.08*N	0.020*(N-2)	4	30/45
PLQ026	310	111	2.40N+9	250	50	1.0+0.12*N	0.026*(N-2)	18	30/45
PLQ030	325	95	1.55N+9	269	39	1.0+0.09*N	0.030*(N-2)	10	30/45
PLQ050A	525	111	2.40N+9	466	50	2.4+0.2*N	0.050*(N-2)	15	30/45
PLQ050B	525	111	2.40N+9	466	50	2.4+0.2*N	0.050*(N-2)	18	30/45
PLQ060	526	119	2.30N+9	470	63	2.4+0.17*N	0.060*(N-2)	18	30/45
PLQ095A	616	191	2.40N+11	519	92	Product tags stainless heat exchanger , heat exchange plate , heat exchanger plate type Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! Stainless Steel AISI 316 Plates Copper Brazed Plate Heat Exchanger Oil Cooler Ask Latest Price Product Detail Brand Name : Asifahe Model Number : M6/M10/M15/M20/T8 Certification : CE,ISO9001 Place of Origin : Hefei,Anhui Province,China MOQ : 1set Price : Depend on the situation Contact Supplier Anhui longmaker Technology Co., Ltd. Active Member 9 Years anhui, hefei Since 2011 Business Type : Manufacturer, Agent, Exporter, Trading Company, Seller Main Products : 1. Granule packing machine, 2. Juice beverage production line, 3. Powder packaging machine Total Annual : 100000-6500000 Employee Number : >less than 50 Certification Level : Active Member Discover similar products Full-Automatic Plate UHT Sterilizer for milk/ juice/ beverage Uht sterilizer Contact Now Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Contact Now Heat Exchanger Manufacturer Condenser Stainless Steel for Small Copper Welded Contact Now View More Find Similar Products By Category: Supplier Homepage Products 12. Sterilization cold heat exchange equipment MachineU China Products Machinery Refrigeration & Heat Exchange Equipment Heat Exchanger Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK China Hot Products: A \| B \| C \| D \| E \| F \| G \| H \| I \| J \| K \| L \| M \| N \| O \| P \| Q \| R \| S \| T \| U \| V \| W \| X \| Y \| Z \| 0~9 Copyright © 2009-2025 Machineu.com. All rights reserved. Copyright © 2009-2025 Machineu.com. All rights reserved.
