Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger
Specifications
Brand Name :
Asifahe
Model Number :
M6/M10/M15/M20/T8
Certification :
CE,ISO9001
Place of Origin :
Hefei,Anhui Province,China
MOQ :
1set
Price :
Depend on the situation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000sets per month
Delivery Time :
35days after received the payment by T/T
Packaging Details :
plywood case or as requirements
Plate Material :
SS304/SS316/SS316L/Titanium/ALLOY C276
Maximum Working Pressure :
40bar
Liquid Flow Rate :
Max 50 M3/h
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Description

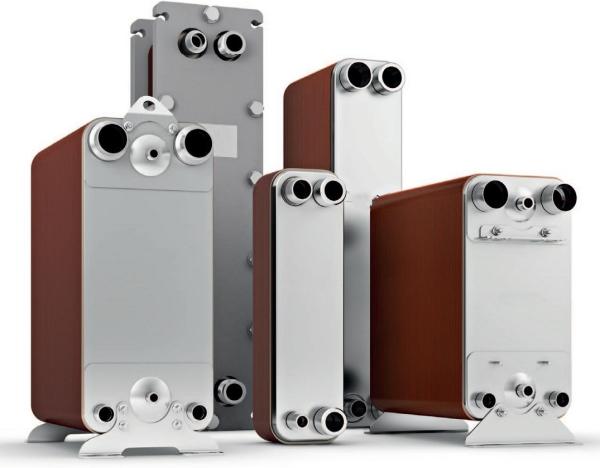

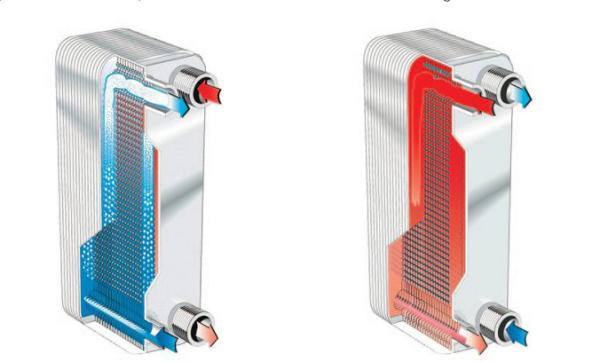

Welded plate heat exchanger is composed of a lot of stainless steel plates and front and rear covers, it is separated copper sheet (or nickel) with high purity and brazed in high temperature furnace. In order to achieve the best heat transfer effect, All corrugated plates will be combined with velocity heat transfer plate with high, middle and low level according to the clients' requirements. It has a compact structure without gasket and outer frame to operate in the condition of high temperature and high pressure.

Refrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat ExchangerRefrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat ExchangerRefrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat ExchangerRefrigerant Chiller condenser Water Cooling Evaporator Copper Brazed Plate Heat Exchanger

Features:

• Easy to install

• Compact structure

• Gasket free

• Easy cleaning

Applications:

• Pulp and Paper

• Food and Beverages

• Chemicals

• Water and Waste treatment

• Biotech and Pharmaceutical

• Energy and Utilities

Brazed plate heat exchanger PLQ026
Materials
Cover plates Stainless steel
Connections Stainless steel
Plates Stainless steel
Brazing filler Copper

Dimensions and weight
Height 310 mm / 12.20 in
Width 111 mm / 4.37 in
Length (measure) 9+(2.40*N) mm / 0.35+(0.094*N) in
Weight 1.0+(0.12*N) kg
N = number of plates

Technical specifications
Volume per channel 0.05 liters
Max. flow rate 18 m3/h
Max. pressure 30/45 bar
Heat exchange area 0.026*(N-2) m2 / 0.28*(N-2) sq.ft
Min. number of plates 10
Max. number of plates 120
