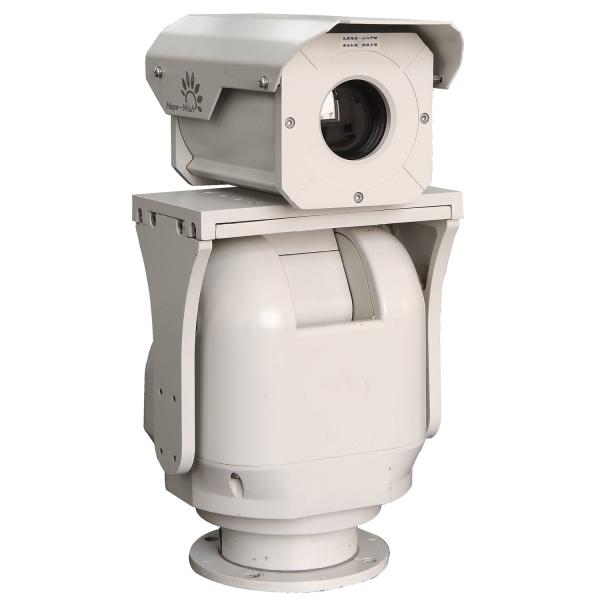

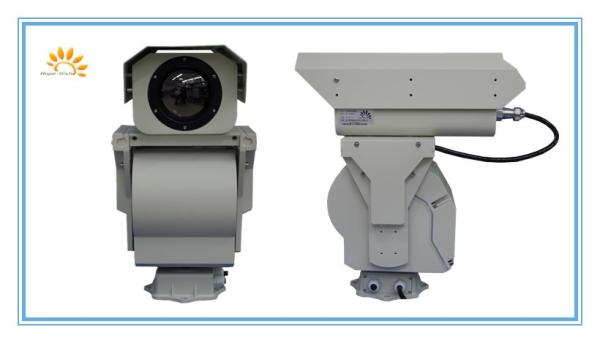

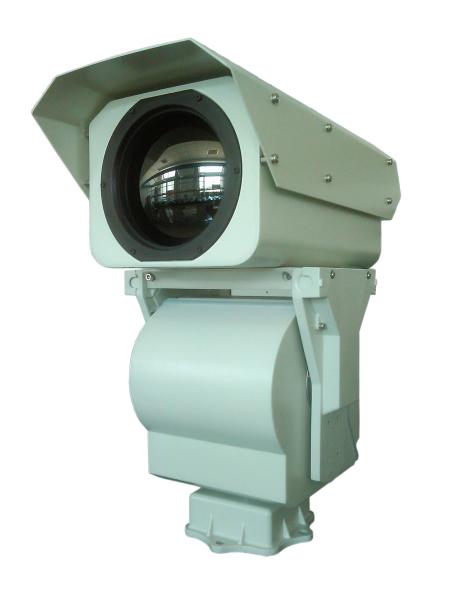

Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
Specifications
Brand Name :
Hope-Wish
Model Number :
TC6105
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
wooden case
Price :
Negotiable
NETD :
50mK
pseudo color :
10
Sensor :
Uncooled UFPA sensor
Resolution :
336*256/640*512
Focal length :
50mm F1.0
PTZ :
Rotation: pan: 0～355°, tilt: -60～+10°
Description

TC6105 4KM outdoor Surveillance PTZ Infrared Long Range Thermal Camera

Description:

TC61 series middle distance thermal camera is designed based on the latest 5th generation uncooled infrared technology and infrared optical technology. With 17um 336x256 resolution uncooled FPA sensor, advanced digital circuit and image processing technology, the camera could supply a much good image. And the infrared lens using AS optical technology have a detection distance 300m~3km while its size and weight is decreased a lot. Aluminum alloy housing sealed with nitrogen and weatherproof IP66 make sure the camera works steadily outdoor.

Application

City safety, oilfield safety, railway security, night gathering evidence.

Technical specification

Model TC6102- S TC6105- S
Detection Vehicle: 1700m Vehicle: 4200m
　 Human: 720m Human: 1640m
Identification Vehicle: 420m Vehicle: 1200m
　 Human: 180m Human: 470m
Sensor 5th generation UFPA sensor
Resolution 640×512pixel, 9HZ
Spectral range 7.5～14μm
NETD 50mK
Focal length 20mmF1.0 50mmF1.0
Field of view(horizontal) 15.5°X 11.6° 6.5°X 4.8°
Image processing 1. Stable operation temperature without TEC, starting time less than 4 seconds
2,SDE digital image processing
3,10 pseudo color and B/W, B/W conversion
4,AGC
5,2X digital amplification
PTZ(Option) 1. Duty: 10kg
2. Rotation: pan: 0～355°, tilt: -60～+10°
3. Rotation speed: Pan: 7°/S, tilt: 3.4°/S
4. 32 presets
(optional variable speed PTZ)
Interface 1. RS-485(PELCO D protocol, Baud rate 2400bps),RS-232(optional)
2. Remote OSD setting
3. PAL/NTSC video output
4. AC24V/DC12V
5. Waterproof aviation connector
Environment parameters 1. One integral aluminum alloy housing
2. Operational temperature: -35°～55°(-45° optional )
3. Power consumption: common 8W, peak 36W(PTZ excluded)

* The detection distance is related to the object and environment etc. Please contact with us for further information

Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor

Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor

Outdoor IR Long Range Thermal Camera 17um 4km With Uncooled UFPA Sensor
