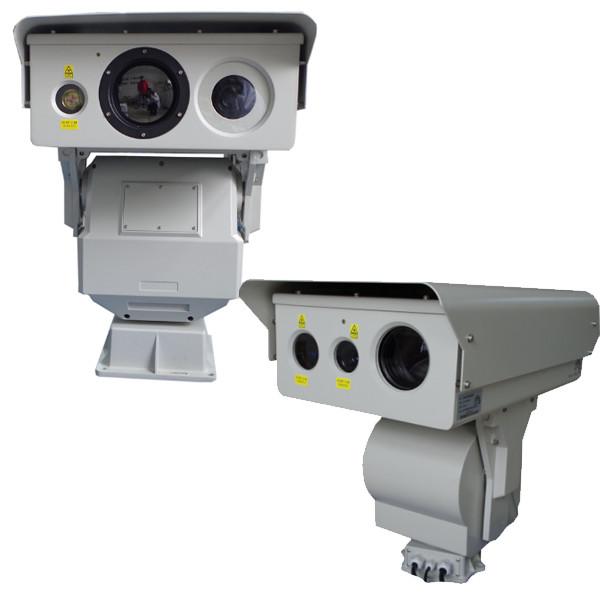

10 Km Long Range Ir Thermal Imaging Camera Border Security Camera System
10 Km Long Range Ir Thermal Imaging Camera Border Security Camera System
10 Km Long Range Ir Thermal Imaging Camera Border Security Camera System
10 Km Long Range Ir Thermal Imaging Camera Border Security Camera System
Specifications
Brand Name :
Hope-Wish
Model Number :
TRC6105A-2022-IP
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
wooden case
GPS :
Positioning accuracy 10 meters
Spectral range :
7.5～14μm
Sensor :
Uncooled UFPA sensor
Resolution :
640*512
IR laser :
808NM,940NM
technology :
PTZ
Description

10km long range infrared Thermal Imaging Camera , Border Security Camera System

Feature

  • Integrating visible camera, near-infrared laser illuminator and thermal camera.
  • NETD 50mk.
  • Fog penetration (optional), optical filtering in day time and DSP image processing technology enhances the image details in foggy/dusty environment.
  • Multi-video color mode. Thermal camera has 9 pseudo colors and B/W, B/W inverse color mode.
  • 360°continuous rotation PT with load duty up to 50kg.
  • Integral aluminum alloy housing, IP66 ingress protection, waterproof, dustproof.

Application
Border defense, railway&expressway security, seaport&airport security, city security, forest fire prevention, river&lake monitoring.

Technical specification

Type TRC4105S-2022-IP
Detection 4200m

5th generation uncooled FPA sensor Resolution 336×256 pixel

Spectral range 7.5～14μm, NETD 50mk
Thermal camera 50mm

1. Electric zoom and focus

2. Special AS & DOE optical zooming lens

3. 3CAM high-precision optomechanical design
Field of view 6.5°×4.8°
Image processing SDE digital image processing
10 pseudo color and B/W, B/W inverse
AGC & 2X digital amplification
Consumption 6W, 808nm, NIR
Laser angle 1.5°～20°
Cooling Package

1. filled with inert gas seal to prevent oxidation

2. Laser with distributed design with more cooling capacity
Angle and distance matching 1. Automatic tracking or manual fine-tuning intelligent matching
2. DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming
3. Z-super laser angle and magnification matching algorithm, the tracking response time <30ms
4. 0.01°SLM optical axis aiming and locking
CCD 1/2.8'' CMOS 0.005lux low illumination color to B/W

1. 2 megapixel HD, 1920*1080,Automatic ICR switch

2. H.264/MPEG4/MIPEG H.264 video format

3. Video bit rate 32Kbps ~ 16Mbps, 60Hz30 frames / sec

4. Support SD card local storage

5. ABF Auto Back Focus adjustment function
Visible Lens

1. 10～220mm

2. HD infrared lens
Motorized & manual focus, DC8-12V, auto iris, (optional auto focus), DC5V precision potentiometers preset positions, zoom focus feedback
Fog penetration Optical filtering and AFR image processing technology
Housing

1. Material: aluminum alloy, stainless steel fasteners, anti strong winds.

2. Structure: integrated design,

3. The surface coating: PTA three anti-paint, anti-seawater corrosion

4. Protection grade: IP66, waterproof and dustproof

5.Interface: Aviation waterproof plug
PT

1,Load duty:30kg

2,Angle:

Pan 360°continuously

Tilt: +40°～-45°

3,Speed: pan 0.01～30°/S, Tilt 0.01～15°/S

4,Preset : 80,Patrol & Scan

5,Orientation and angle real-time display, with zero correction
Interface

1. Intelligent IP box, one 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), AC24V / DC24V,

2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis

3,Military-grade waterproof aviation plug
Protocol

1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols

2. Support ONVIF2.0

3,Pelco-P, Pelco-D and other industry-standard protocol, (optional) Baud rate 2400, 4800, 9600, 19200
Power

AC24V / DC24V ± 10%, 50Hz, 150W, standard AC220V-> AC24V adapter

(Optional DC12V power supply, RC2013 only use AC24V, not DC power supply)
Environmental Indicators

1. Working temperature: -25 ℃ ~ + 55 ℃

2. Storage temperature: -35 ℃ ~ + 65 ℃

3. Humidity: <90%

4. Ingress Protection: IP66
Weight ≤30kg

* The detection distance is related to the object and environment etc. Please contact with us for further information.
