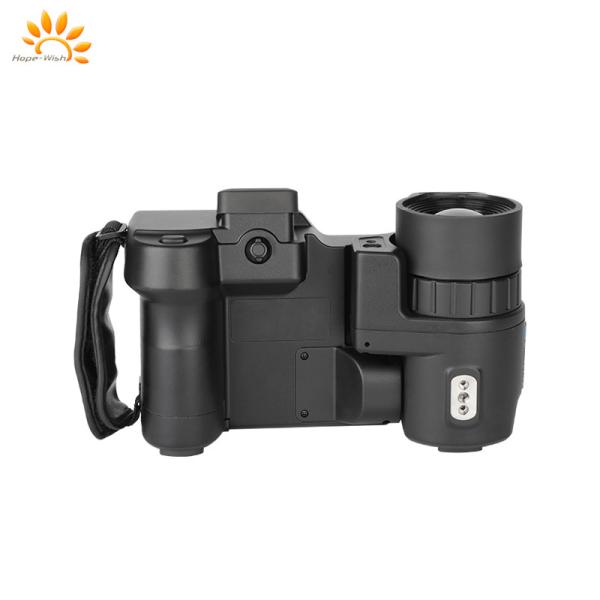

Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Power Industry Portable Infrared Camera Thermal Imaging Camera Temperature Measurement
Specifications
Brand Name :
Hope-Wish
Model Number :
HP-DL802-M
Certification :
CE, FCC, ROHS, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
15-30
Packaging Details :
wooden case
Weight :
500g
Type :
Monocular
Effective visual distance :
700-1600m
Color :
Black
Netd :
<60mK@300k(F#1.0)
Fov :
24° x 18°
Description

Key Benefits:

High precision resolution, 1024×768 pixel detector, can get a super pixel to 2048×1536 pixel.
180° rotating concentrator and 5-inch high-brightness and high-resolution touch-screen LCD display can place any target within a comfortable viewing angle.
With function of compass, laser ranging, GPS Bluetooth, Wi-Fi transmission, and 4G

Application
Suitable for power industry, scientific research, building diagnosis, electrical and mechanical testing, railway, steel and petrochemical, automation applications and etc..

Technical specification:

Items HP-DL802-M
Detector Type Uncooled FPA
Resolution 1024×768
Image FOV 28.7°×21.7°
Spatial resolution 0.49mrad
NETD 0.02℃@30℃
Frame rate 60Hz
Focal Automatic/manual focus/electric focus/touch screen
Spectral range 7.5-14um
Visual camera built-in 5 M pixels, CMOS module, built-in LED fill light
Zoom 1～40 times continuous digital zoom

Super pixel

2048×1536
Image display LCD display 5-inch color LCD capacitive touch screen
Viewfinder HD 0.5" color OLED
Image display infrared or visible light full-screen switching, picture-in-picture, thermal superposition, dual-band fusion
Palette 11 kinds of palettes to choose from (including iron red, rainbow, black and white, black and white reverse, etc.)
Image Processing Automatic/manual adjustment of contrast and brightness, automatic enhancement mode
Measurement Temperature measurement range -40℃- +650℃,can be extended to 1500℃ and 2000℃
Precision

±1℃ or ±1%(0~150℃)

±2℃ or ±2%(within the range)
Temperature measurement correction Automatic / manual
Measurement mode Real-time 10 movable points, 5 movable areas (highest temperature, lowest temperature capture, average temperature measurement), movable line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)
Setting Date/time, temperature unit ℃/℉/K, language, contrast/brightness, LCD backlight
Emissivity correction The emissivity is adjustable from 0.01 to 1.0 (in increments of 0.01), or the emissivity can be corrected through a predefined material emissivity meter
Background temperature correction Automatic, according to the input background temperature
Atmospheric window correction Yes, adjustable
Atmospheric transmittance correction Automatic, according to the input target distance, relative humidity, ambient temperature
Storage Storage card Built-in 128G memory and external 32G SD card (expandable)
Storage method Manual/automatic photo or video
Infrared image format JPEG and DLV format, with infrared raw measurement data image; MPEG4 format, video recording.
Visible light image format JPEG / DLV /MPEG4 format
Voice notes 60 seconds of voice recording, stored along with the image (built-in microphone, can be recorded and played via Bluetooth)
Text annotation Yes, can be predefined
Sketch Notes Yes
Task mode with task mode shooting, automatic naming
Other settings Laser Laser ranging
GPS Yes
Electronic compass Yes
Microphone Yes
Buzzer Yes
Fill light 2 LED
Power system Battery Type Lithium battery, rechargeable
Battery working time 3 hours continuous work
Charging type Smart charger charging or random (AC power adapter or 12V in-car power supply) charging
Power saving mode Automatic sleep and shutdown
Environment Working temp. -15℃-+50℃
Storage temp. -40℃-+70℃
Humidity ≦95％(non-condensing)
Protection grade IP54
Shock resistance 30G,IEC68-2-27
Vibration resistance 2G,IEC68-2-6
EMC GB/T 18268.1-2010
Physical characteristic Weight ≤2Kg
Dimension 180mm×145mm×150mm
Tripod 1/4″-20-UNC
Interface Power supply Yes ,DC 12V
memory card slot SD card holder
USB Yes, Mini-USB Type C, can transmit raw data video stream for real-time analysis
Wifi Yes
Bluetooth Yes
Video output HDMI
