Excavator long reach arm for DOOSAN HYUNDAI KOMATSU KOBELCO

Catalogue ZH excavator boom arm.pdf

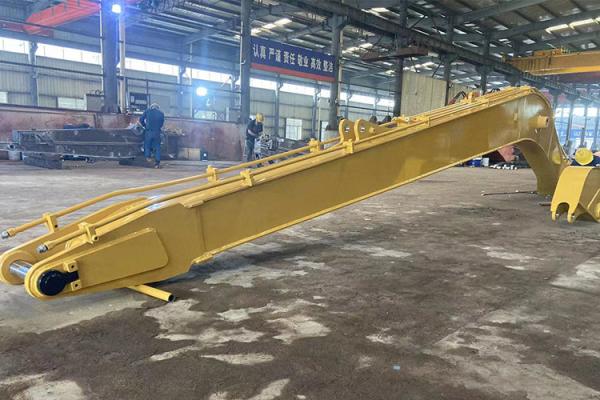

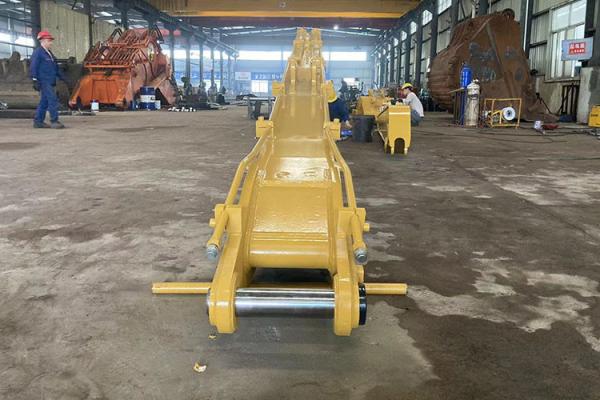

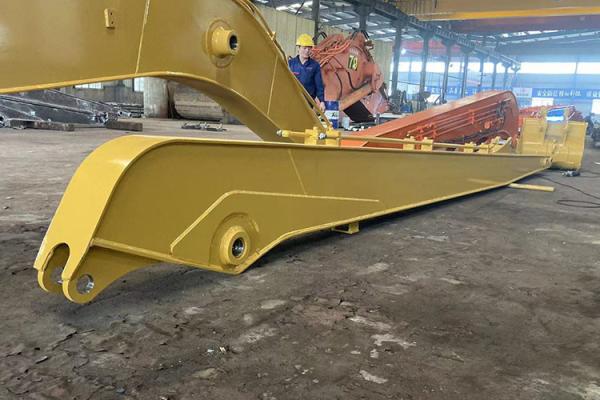

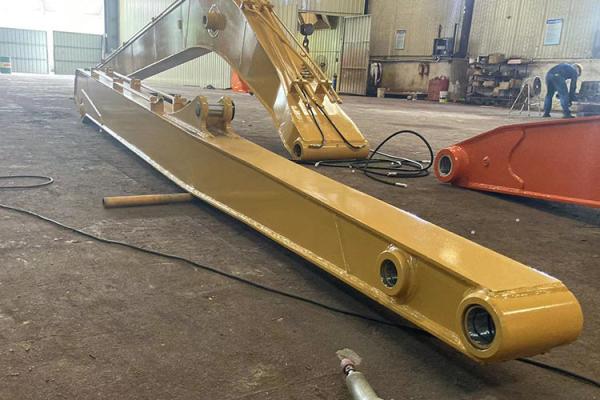

The Stick/Boom/Hydraulic Cylinders/Bucket come as a Long Reach Upgrade Package. Remove stock parts and Upgrade for roughly 2x reach increase.

Our Long Reach Excavator package is available for a wide range of excavator models according to the customer’s exact needs and areas of application. Offer deeper and long-distance digging to boost productivity where standard boom can’t get the job done.

As boom and arm are critical components of an excavator; thus, it’s been produced precisely to fulfill quality conformance with the implementation of cutting-edge technology and advanced machinery in the production line.

To sustain our branding in this field, we ensure our high quality and durable long reach arm will accomplish your project satisfactorily.

Characteristics:
Long Reach Booms are made of high strength and high Tensile alloy steel Q345B, and better material (700Mpa Yield Strength) is optional
Inside of Booms with we design baffle plates that make booms strong and durable to withstand torsional loads
Our boom and arm are large-welded box structure and thick or multi-plates for high-stress areas.
High quality accessories such as pipeline, pins, bushes and cylinders,
Camera system can be furnished on your request
Lock Valve is optional as a security tool to prevent boom down in the event of hydraulic hose blows
Bucket cylinder With protective Guard.
Various of Attachment to fit long reach booms: standard digging bucket, mud bucket, skeleton bucket, grapple.

Less maintaince
Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision piplines, graphite alloy copper sleeve, strong but light bucket cylinder.
2. Strong and sturdy
Built-in reinforcing ribs. Professional welding skill towards different bearing position. Groove preparation(45° edge-mining) before welding.

The specification of long reach arm for excavator

Our Long Reach Package Include:
1x Boom(12)1x Arm/Stick (9)1x Standard/Mud Bucket(1)1x Bucket Cylinder/Ram (7)1x Bucket Linkage(6)6x pin(2,3,4,5,8,12)4x Hose(10,11)
parts indicated in Blue No. are what our long reach booms package cover; parts in red No. are your original parts, we will furnish boom & arm cylinder and related pin, hose, and counterweight is available on request

Our Long Reach Booms Sticks fit most makes and models,

Include but not limit below models.
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
Caterpillar Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200

Excavator Long Reach Boom is a special-purpose attachment for long distance dredging in slope forming, settling banks, cleaning ponds/waterway, etc. application.

We are a professional manufacturer in China, specializing in Designing and making Long Reach Booms, High Reach Demolition Front, Shortened Rock Boom Stick, Bucket, and other kind of Excavator Attachment, our product has been sold to USA, England, UAE, Russia Australia, Egypt etc. counties.

1. 14000㎡ Workshop

We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.

2. High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.

3. Experienced Workers
There are more than 60 skillful staffs, 30 welding workers with over 5 years welding experience.

4. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.

5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.

6. 100% Service
(1)Online support within 24 hours.
(2)Appointment video technical support. (Our engineers have focused on excavator boom and attachment over 10 years)

FAQ
Question 1: Does the Excavator with Long Reach Boom suitable for working in sea water?

Answer: Yes, It can work in sea water and our long reach booms painted with anti-corrosive painting, but please note some wearing component will not last as long as normal because of sea water corrosion , such as Bushes, Bucket, bucket cylinder

Question 2: Can Long Reach Excavator to do hammering job?

Answer: It is not recommended, Long Reach Excavator are designed for long reach dredging or moving material, If your job really need long reach hammering, please consult with us, we will give you suitable hammer model

Question 3: Do I need to buy overseas from you If some wearing parts wear out?

Answer: All our wearing parts on Long Reach Booms are standard part like bucket cylinder, bushes, cylinder seal, you can buy these locally.
