Specifications
Brand Name :
ZHONGHE
Model Number :
20-27T
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
12600
Payment Terms :
T/T
Supply Ability :
50set one month
Delivery Time :
15`20days
Packaging Details :
Plastic wrap and bubble wrap packing
Material :
Q355B
Size :
custom
Condition :
New long reach boom & arm
Warranty :
1 Year
After-sales service provided :
Online support
Bucket capacity :
0.4-0.5CBM
Description

long reach boom arm PC200 CAT320 ZX200 SK200 SY312 long boom arm for DOOSAN HYUNDAI KOMATSU KOBELCO

Product advantage of long arm backhoe arm:

01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°

The specification of long arm excavator for sale

Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1

Our Long Reach Booms Sticks fit most makes and models, Include but not limit below models.
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220 PC270, PC300, PC350, PC450, PC600, PC850, PC1250
CAT Excavator Model: CAT320, CAT323, CAT326, CAT329, CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200, ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355, EC380, EC480, EC750
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420, DX490, DX530, DX800
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300, SK330, SK350, SK380, SK460, SK500, SK850
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350, SH460, SH480, SH500, SH700, SH800
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235, HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200

Introduce of longest excavator arm

Is just because of the standard of excavator arm length cannot satisfy some workplace, so more and more excavator can lengthen arm is used to fill the blank, such as the pit operation foundation engineering, the work high above the building demolition or clear river in areas such as construction and maintenance, etc., must be used extended arm can be efficient quickly complete the indicators of engineering requirements.

River dredging

River dredging

The continuous expansion of the city, the demolition of old urban areas. For safety reasons, the government chose to demolish the lower floors with three long arms instead of blasting them. The three extended arms add a middle arm on top of the original two extended arms. The middle arm can protect the driver's safety to a great extent. The three-stage extension arm is operated with hammer or hydraulic shear.

The video show of long arm digger arm extension

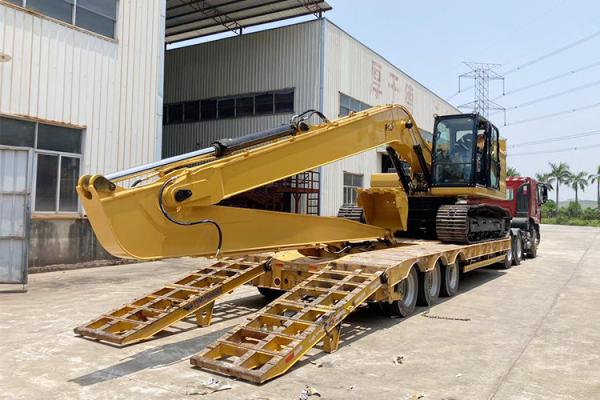

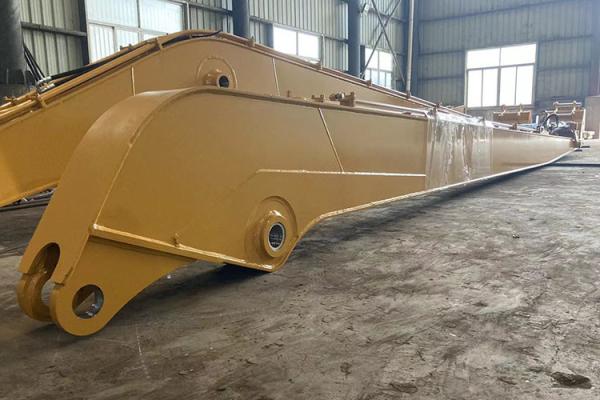

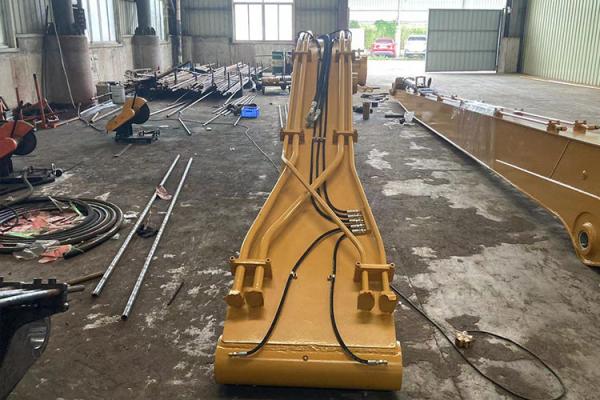

The pictures of excavator long arm for CAT

Long Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBM

Long Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBM

Long Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBM

Long Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBM

Long Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBMLong Arm Backhoe Excavator Boom CAT Stick 0.4-0.5CBM
