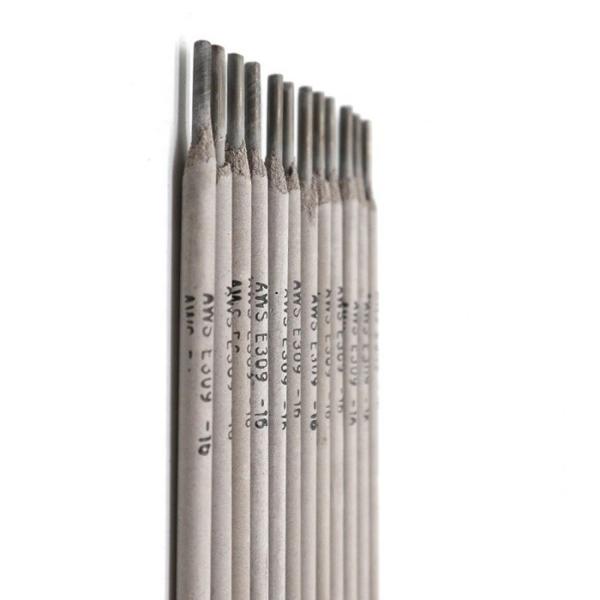

SS Electrodes A302 GB E309-16 AWS A5.4 E309-16 Calcium Titanium Coated Cr23Ni13
SS Electrodes A302 GB E309-16 AWS A5.4 E309-16 Calcium Titanium Coated Cr23Ni13
Specifications
Brand Name :
LONGTENG
Model Number :
E309-16
Certification :
TUV CE, ABS, DB, ISO9001,CCS
Place of Origin :
CHINA
MOQ :
one pallet
Price :
USD 1
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Product name :
Stainless Steel Electrodes LT·A302
Model :
E309-16
Brand :
LONGTENG
Diameter :
2.0/2.5/3.2/4.0/5.0
Weight :
5kg
Type of Coating :
Calcium-Titanium
Packing :
Plastic box
OEM :
Accept
Description

[SS Electrodes] A302 GB E309-16 AWS A5.4 E309-16 Calcium-Titanium Coated,Cr23Ni13 Stanless Steel Electrode

E309-16 2.0/2.5/3.2/4.0/5.0 mm Stainless Steel Electrodes

Conform to Standard

GB/T 983 E309-16

AWS A5.4 E309-16

ISO 3581-A-E(22 12) R 3 2

ISO 3581-B-ES 309-16

Specification:A302 is a, calcium-titanium coated, Cr23Ni13 stainless steel electrode. The deposited metal has good crack-resistance and oxidation resistance. The electrode can operate on AC/DC. It is easy to operate.

Purpose:It is used in similar type stainless steel, dissimilar stainless steel and high chromium steel and high manganese steel.

Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Mo Cu
Guarantee Value

≤

0.15

0.50~

2.50

≤

1.00

 ≤0.030 ≤0.040

22.0~

25.0

12.0~

14.0

≤

0.75

≤

0.75
General Result 0.055 1.25 0.65 0.009 0.021 24.25 12.52 0.30 0.10

Mechanical Properties of Deposited Metal

Test Item Rm(MPa) A(％)
Guarantee Value ≥550 ≥25
General Result 590 38

Reference Current(AC,DC+)
Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~80 50~100 70~130 100~160 140~200

Notes:

1.The electrode must be preheated at the temperature of 300°C for 1 hour.

2.The impurities such as rust, oil stains and moisture must be cleared off of the work piece.
