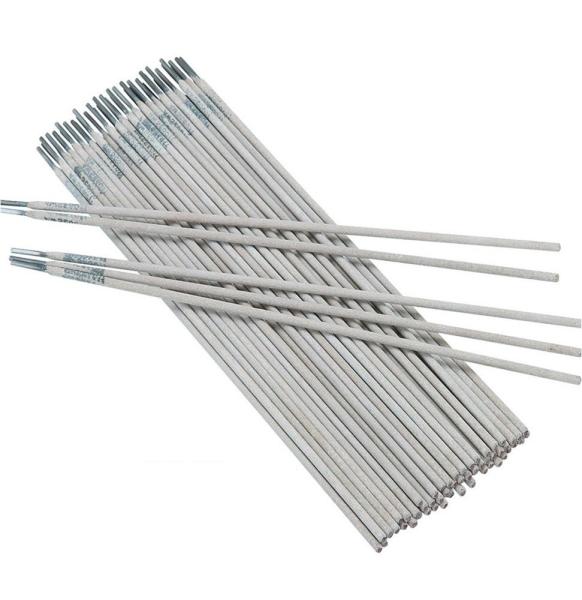

J502 E5003 Calcium Titanium Coated Cs Electrode For Welding All Kinds Of 490MPa
J502 E5003 Calcium Titanium Coated Cs Electrode For Welding All Kinds Of 490MPa
J502 E5003 Calcium Titanium Coated Cs Electrode For Welding All Kinds Of 490MPa
J502 E5003 Calcium Titanium Coated Cs Electrode For Welding All Kinds Of 490MPa
Specifications
Brand Name :
LONGTENG
Model Number :
E5003
Certification :
TUV CE, ABS, DB, ISO9001,CCS
Place of Origin :
CHINA
MOQ :
one pallet
Price :
USD 1
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Product name :
Carbon Steel Electrodes E5003
Model :
E5003
Brand :
LONGTENG
Diameter :
2.0/2.5/3.2/4.0/5.0
Weight :
5kg
Type of Coating :
Calcium-Titanium

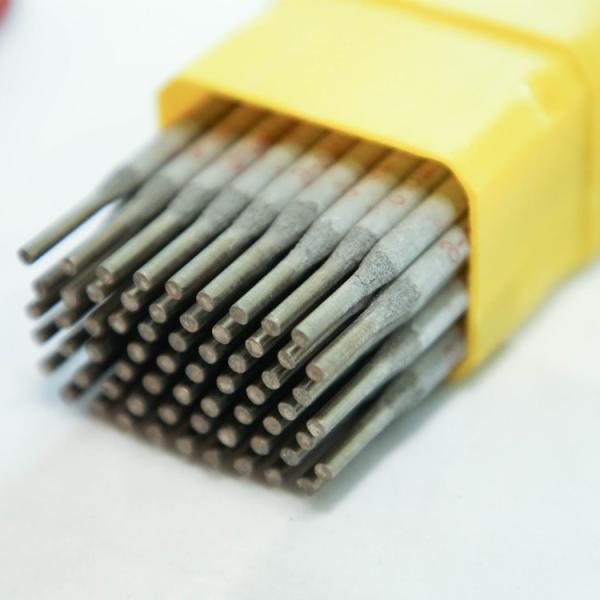

Packing :
Plastic box
OEM :
Accept
Description

[CS Electrodes]J502 E5003 Calcium-Titanium Coated Cs Electrode Used For Welding All Kinds Of 490MPa Low-Alloy Structrues

LT·J502 E5003 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes

Conform to Standard:GB/T 5117 E5003 ISO 2560-B-E 49 03 A

Specification:E5003 is calcium-titanium coated carbon steel electrode. It has very good welding usability that enables it to operate on AC/DC, performs all-position welding, has stable arc, removal of slag is easy and has good bead appearance. Its good mechanical properties give it very good low temperature toughness. During the application, its characteristic of easy maneuverability offers easy striking, easy re-striking and good control of welding speed, which enables the welders to have desired weld path and penetration of the arc.
Welding electrode J502 (E5003) is rutile-calcium based for mild steel and low alloy steel. It could operate on DC/AD, and perform all-position welding. Electrode J502 has excellent welding performance and mechanical properties that enable stable arc, small spatter, easy slag peeling, smooth weld bead.


Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

≤

0.15

≤

1.25

≤

0.90

 ≤0.035 ≤0.040

≤

0.30

≤

0.20

≤

0.30

≤

0.08
General Result 0.95 0.72 0.27 0.015 0.022 0.025 0.036 0.010 0.008



Mechanical Properties of Deposited Metal

Test Item Rm(MPa) ReL(MPa) A(%) KV2(J)
0℃
Guarantee Value ≥490 ≥400 ≥20 ≥47
General Result 530 440 26 85

Reference Current(AC,DC)

Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~70 60~100 80~140 140~220 180~240
