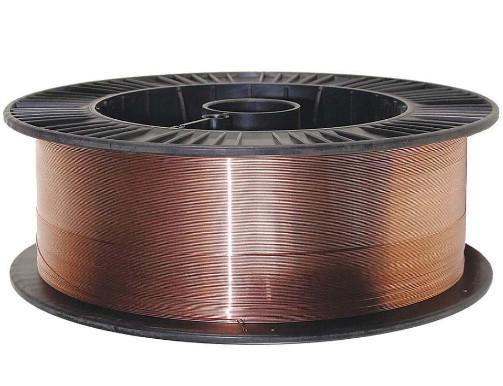

Weathering Steel Mig Welding Wire 0.8 Mm 15kg 5 Kg Copper Plating
Weathering Steel Mig Welding Wire 0.8 Mm 15kg 5 Kg Copper Plating
Specifications
Brand Name :
LONGTENG
Model Number :
ER80S-G (TH550-NQ-II)
Certification :
TUV CE, ABS, DB, ISO9001
Place of Origin :
CHINA
MOQ :
one pallet
Price :
USD 1
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Product name :
CO2 gas shielded welding wire ER80S-G
Model :
ER80S-G
Brand :
LONGTENG
Diameter :
0.8/0.9/1.0/1.2/1.6mm
Weight :
1/5/15/20kg
Surface :
Cooper plating
Spool material :
Black plastic spool
Packing :
Color box
OEM :
Accept
Diameter of spool :
100/200/270/300mm
Description

[Weathering Steel] AWS A5.18 ER80S-G Mig Welding Wire 0.8 Mm 15kg 5 Kg Copper Plating

LT*ER80S-G 0.8/1.0/1.2/1.6MM SOLID WELDING WIRE

Conform to Standard :AWS A5.18 ER80S-G

Specification:AWS A5.18 ER80S-G MIG Welding Wire is a solid wire for butt or fillet MAG welding of mild steel and 590N/mm2 grade steel. It also can be operated with a wider range of welding currents than other solid CO2 wires.

Purpose:It is suitable for welding high tensile strength steel used in construction welding, vehicles and bridges.

Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Cu
Guarantee Value ≤0.10 1.20~ ≤0.60 ≤0.020 ≤0.025 0.20~ 0.30~ 0.20~
1.6 0.6 0.9 0.5
General Result 0.057 1.4 0.46 0.008 0.016 0.33 0.48 0.3

Mechanical Properties of Deposited Metal(Ar+20%CO2)
Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-40℃
Guarantee Value ≥550 ≥450 ≥22 ≥60
General Result 590 495 28 112/120/118
Reference Current(DC+)
Size(mm) Current range (A) GAS flow rate(L/min)
Φ0.8 50~100 15
Φ1.0 50~220 15~20
Φ1.2 80~350 15~25
Φ1.6 170~550 20~25
